SEAL 3D SCANNER 3DMAKERPRO
- Accuracy: 0.01mm
- Resolution: 0.05mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 180-280mm
- Single capture range: 100x75mm
- Typical object sizes: 10-300mm
- Light source: Blue light
- Color texture: Support
- USB interface: USB2.0
- Dimensions: 110×60×35mm
- Weight: 254g
- Output format: OBJ/STL/PLY/ASC
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
Technical Specification

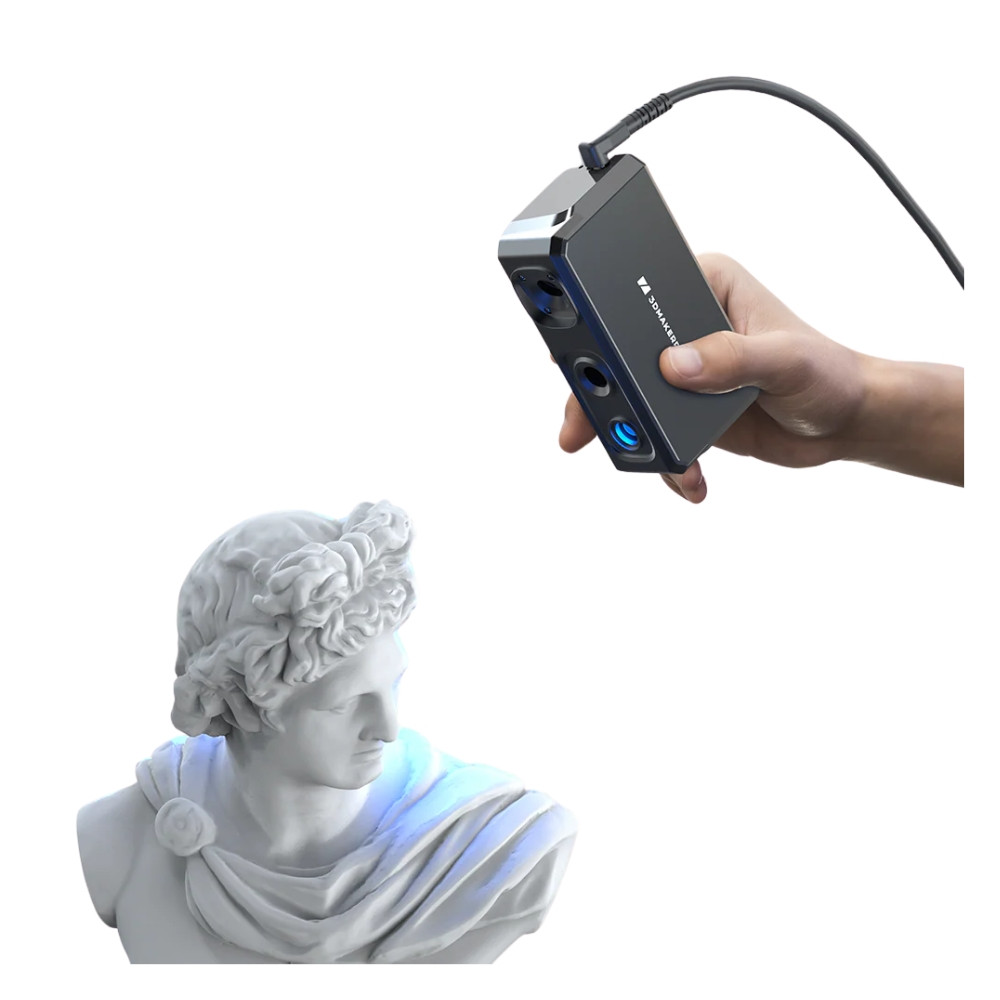

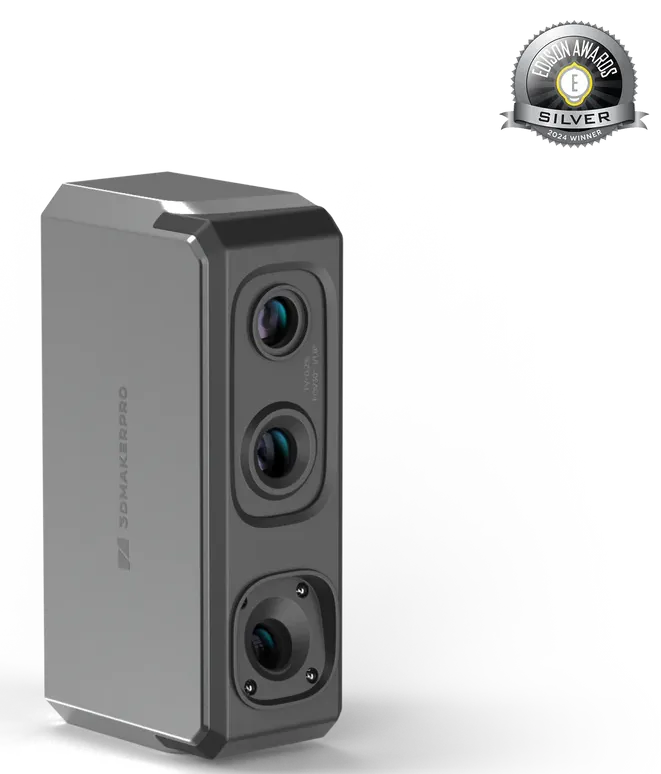

The 3DMakerPro Seal is a flagship consumer 3D scanner that sets a new industry standard for detail, achieving a groundbreaking 0.01mm accuracy and 0.05mm resolution. Encased in a robust aluminum shell and weighing only 254g, it is designed for maximum portability—comparable in size to a pack of gum. It uses Blue Light Encoded Structured Light, which has a shorter wavelength than standard infrared, allowing it to project more refined light patterns to capture the minutest dents, edges, and textures on small objects.

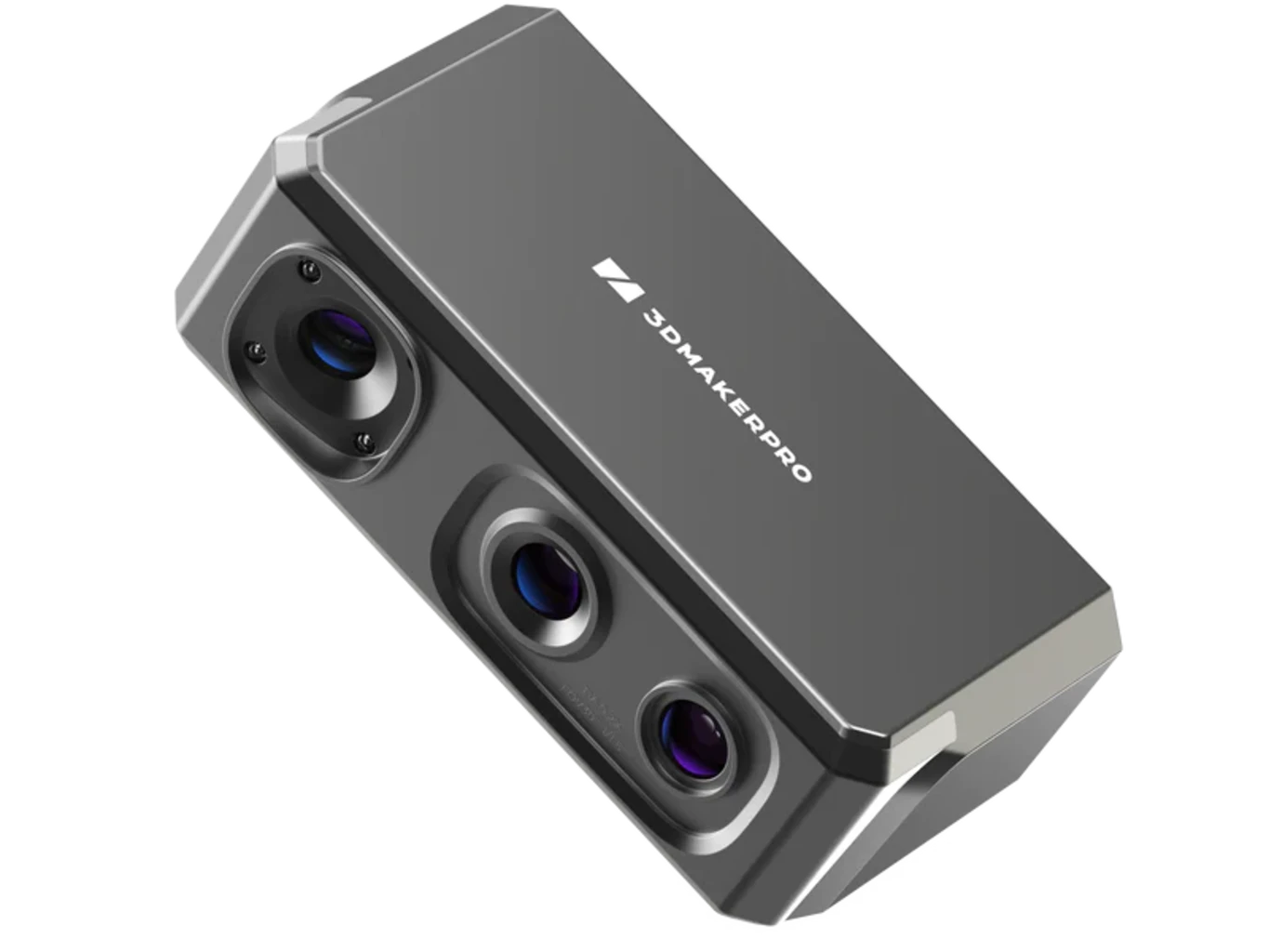

A key distinction of the Seal is its integrated 24-bit color camera, which captures model textures in over 16 million vivid colors with exceptional contrast. To ensure a smooth user experience, it is equipped with Anti-Shake Optical Lenses. This hardware-level stabilization filters out hand jitters and unwanted movement, enabling a continuous and reliable scanning speed of 100,000 points per second. Combined with 9-level light adjustment, the Seal can maintain its high-precision performance across various materials and lighting conditions, including bright sunlight or dark environments.

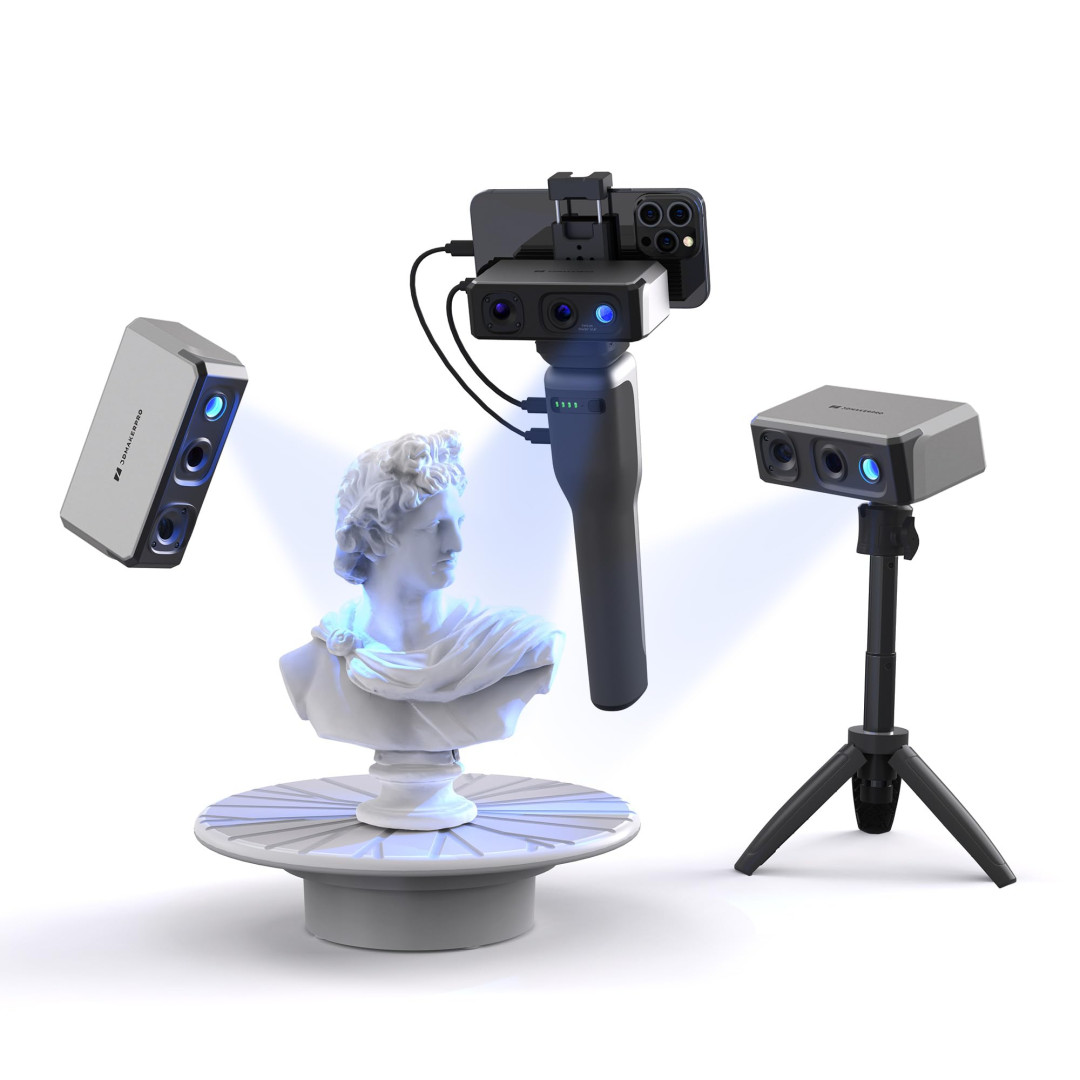

The scanner is powered by JMStudio, providing a streamlined path from raw data capture to a refined, watertight 3D model. It supports markerless Visual Tracking and exports files in OBJ, STL, PLY, and ASC formats for immediate use in 3D printing and CAD software. For mobile scanning, it is compatible with the Smart Grip, which connects the scanner to a smartphone for an untethered experience.
