SEAL LITE 3D SCANNER 3DMAKERPRO
- Accuracy: 0.02mm
- Resolution: 0.07mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 180-280mm
- Single capture range: 100x75mm
- Typical object sizes: 10-300mm
- Light source: Blue light
- Color texture: Mono textures
- USB interface: USB2.0
- Dimensions: 110×60×35mm
- Weight: 226g
- Output format: OBJ/STL/PLY/ASC
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
Technical Specification

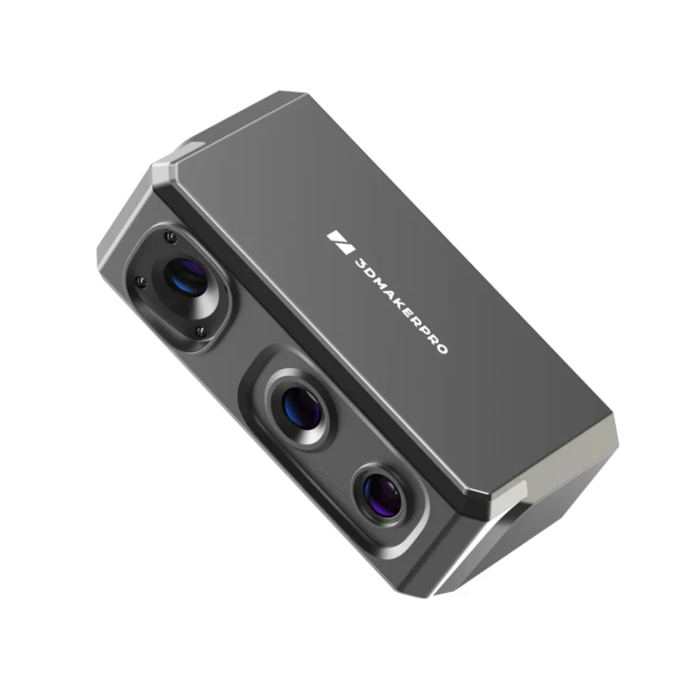

The 3DMakerPro Seal Lite is a highly portable, consumer-grade 3D scanner designed for capturing small to medium-sized objects with industrial-level detail. Utilizing Blue Light encoded structured light technology, it achieves a remarkable 0.02mm accuracy and a 0.07mm resolution. Weighing only 226g and housed in a lightweight plastic casing, it is significantly more portable than traditional scanners, making it an ideal tool for hobbyists, engineers, and digital artists who need to scan on the move.
Engineered for ease of use, the Seal Lite features an advanced optical system equipped with anti-shake lenses and optical stabilization. This technology effectively filters out hand jitters during manual scanning, resulting in a smoother, more continuous data collection process. With a frame rate of 10fps and the ability to collect up to 100,000 points per second, the scanner quickly builds dense point clouds of objects ranging from 10mm to 300mm in size, such as miniatures, jewelry, or automotive components.

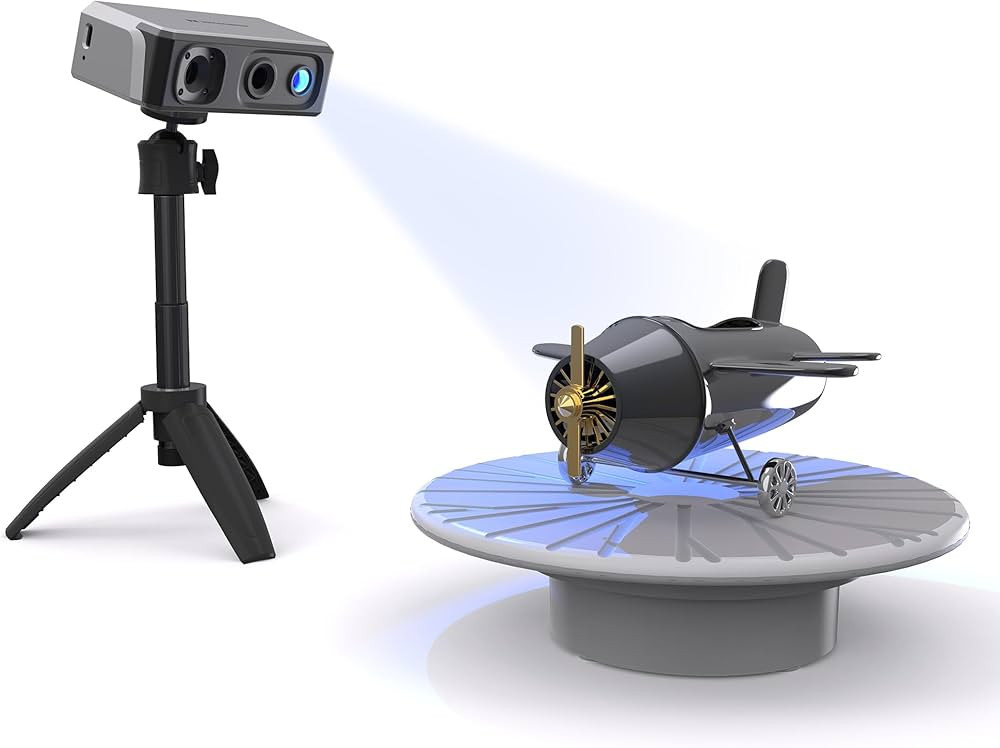

The scanner is powered by JMStudio, 3DMakerPro's proprietary software that offers lifetime free OTA updates and supports multiple file formats including OBJ, STL, and PLY. For enhanced versatility, the Seal Lite includes a 9-level light adjustment feature, allowing it to maintain performance across different materials and lighting conditions. While the Lite version captures in mono (black and white) rather than full 24-bit color, it remains fully compatible with pro-level accessories like the Smart Grip for mobile scanning and the Multi-Axis Turntable for fully automated 360° captures.
