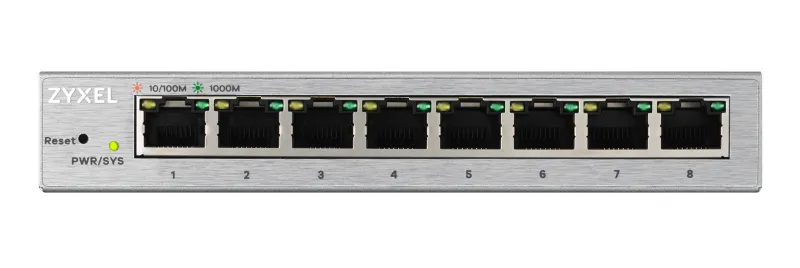

Zyxel Switch Gigabit Ethernet Managed 8-Port Metal UK Plug GS1200-8 - Description
Upgrade your office or home network with the Zyxel GS1200-8 8-Port Gigabit Web Managed Switch. Engineered to bridge the gap between unmanaged plug-and-play switches and complex enterprise hardware, the GS1200-8 delivers essential managed networking capabilities in an intuitive, accessible package. Encased in a compact, durable metal chassis and supplied with a UK plug, it provides dependable Gigabit speeds across all eight ports.
Intuitive Web Management
Configure and manage your network without the need for specialized IT training or extra software. The responsive, user-friendly graphical web interface guides you through vital configurations such as Port Mirroring, VLAN segregation, and firmware updates in just a few simple clicks.
Key Features
- 8 Gigabit Ethernet Ports: High-speed 10/100/1000 Mbps connections ensure seamless data transfers and lag-free streaming.
- Effortless Web GUI: User-friendly browser interface for simplified network administration and setup.
- Traffic Prioritization (QoS): 802.1p-based Quality of Service guarantees smooth voice and video traffic delivery.
- Enhanced Network Security (VLAN): Isolate critical business data or guest networks using port-based and 802.1Q VLAN support.
- IGMP Snooping: Optimizes multicast multimedia streams, such as IPTV, preventing unwanted network broadcast flooding.
- Link Aggregation: Combines two dedicated Ethernet ports to double network throughput between compatible devices.
- Fanless, Silent Operation: Sturdy metal enclosure with a passive cooling architecture ensures reliable, whisper-quiet performance.
- Energy-Efficient Design: Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) to automatically minimize power usage based on cable length and active traffic.
Zyxel Switch Gigabit Ethernet Managed 8-Port Metal UK Plug GS1200-8 - Specifications
General
- Brand
- Zyxel
- Model
- GS1200-8
- SKU
- MS-28111
- Switch Type
- Smart Web-Managed
- Housing Material
- Metal
- Plug Type
- UK Plug (Type G)
Port Configuration
- Total Ethernet Ports
- 8
- Port Type
- 10/100/1000 Mbps RJ-45 Gigabit Ethernet
- Auto-MDI/MDIX
- Yes, supported on all ports
- Auto-Negotiation
- Yes
Performance & Switching
- Switching Capacity
- 16 Gbps
- Forwarding Rate
- 11.9 Mpps
- MAC Address Table
- 4K
- Packet Buffer
- 192 KB
- Jumbo Frame Support
- Up to 9 KB
Layer 2 & Management Features
- Management
- Web-based Management Interface (HTTP)
- Virtual LAN (VLAN)
- Port-based VLAN, IEEE 802.1Q Tagged VLAN (up to 32 active VLANs)
- Quality of Service (QoS)
- Port-based QoS, IEEE 802.1p CoS, 4 Priority Queues, Weighted Round Robin (WRR)
- Multicast Support
- IGMP Snooping v1/v2/v3 compatible
- Link Aggregation (LAG)
- Static Link Aggregation (supports up to 1 group with 2 ports)
- Monitoring & Diagnostics
- Port Mirroring, Loop Detection and Prevention
- Security
- Broadcast Storm Control
Power & Environmental
- Power Supply
- External Power Adapter (5V DC / 1A)
- Power Consumption (Max)
- 4.37 W
- Energy Efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
- Acoustics
- Fanless (0 dBA silent operation)
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Operating Humidity
- 10% to 90% (non-condensing)
Physical Dimensions
- Form Factor
- Desktop / Wall-mountable
- Dimensions (W x D x H)
- 155 x 85 x 26 mm
- Weight
- 325 g
