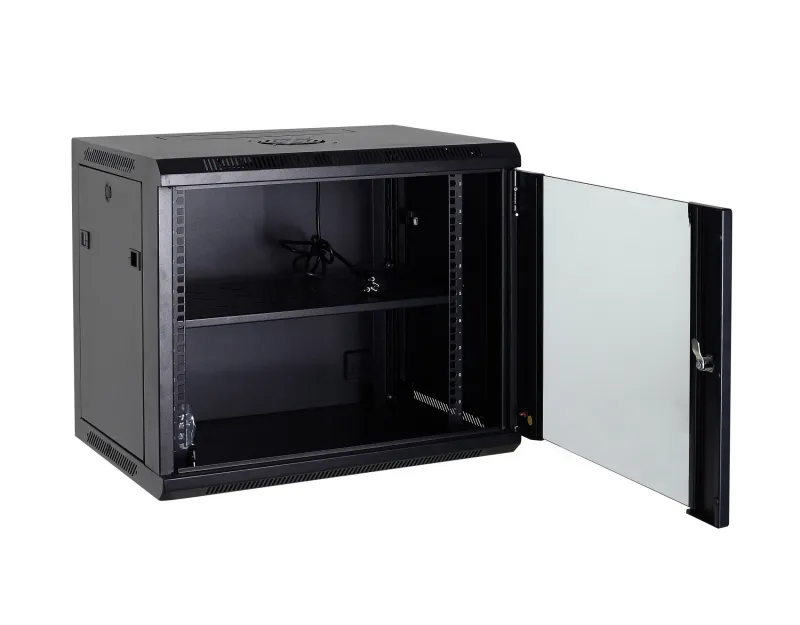

DigitMX NETPRO NP-C12U60W2 19'' Wall Rack 12U 60cm (Not Assembled) - Description
The DigitMX NETPRO NP-C12U60W2 19'' 12U Wall Mount Rack Cabinet offers a dependable, space-efficient solution for organizing, securing, and cooling your mission-critical networking hardware, telecom devices, and AV gear. With a generous 600mm depth and standard 19-inch rack profile, it accommodates a broad range of standard network switches, patch panels, and power distribution units.
Robust Construction & Modern Design
Equipped with a sleek 5mm tempered safety glass front door, the NP-C12U60W2 allows for effortless visual monitoring of status LEDs and system indicators without compromising physical security. The front door swings open past 180 degrees to give network technicians unrestricted access during initial installation and routine maintenance.
Key Features
- 12U Rack Capacity: Standard 19-inch mounting width with versatile L-shaped mounting profiles.
- 600mm Extra Depth: Accommodates deeper network appliances, switches, and structured cabling.
- Tempered Glass Door: Tough 5mm glass door with over 180° swing radius for effortless access.
- Removable Side Panels: Quick-release panels ensure convenient side-access wiring and routine servicing.
- Integrated Cable Management: Flexible cable entry cutouts located on both the top and bottom panels.
- Passive & Active Cooling Ready: Features dedicated top fan cutouts to support active ventilation exhaust systems.
- Easy Wall Installation: Heavy-duty rear panel featuring four pre-drilled mounting holes for stable wall placement.
Delivery & Assembly Notice
This unit is supplied flat-packed for safe, cost-effective transportation and storage. Pre-assembly service is available upon request during checkout (please allow at least 48 hours for assembly). Note: Assembled units are non-returnable.
DigitMX NETPRO NP-C12U60W2 19'' Wall Rack 12U 60cm (Not Assembled) - Specifications
General
- Brand
- NETPRO
- Model
- NP-C12U60W2
- Part Number (SKU)
- MS-17738
- Product Type
- Wall Mount Network Cabinet / Rack
- Rack Capacity
- 12U
- Mounting Standard
- 19" EIA-310 Standard
Physical Dimensions
- Height
- 634 mm
- Width
- 600 mm
- Depth
- 600 mm
- Door Glass Thickness
- 5 mm
Design & Features
- Front Door
- Tempered glass with >180° opening angle
- Side Panels
- Removable
- Cable Entry
- Top and bottom knockout ports
- Cooling Cutouts
- Dedicated top fan cutout
- Mounting Profiles
- L-shaped adjustable mounting rails
- Wall Mountable
- Yes (4 rear wall-mounting points)
Additional Information
- Internal Shelves
- Not included (available separately)
- Packaging
- Flat-packed
- Assembly Options
- Self-assembly or assembly upon request (minimum 48 hours required)
