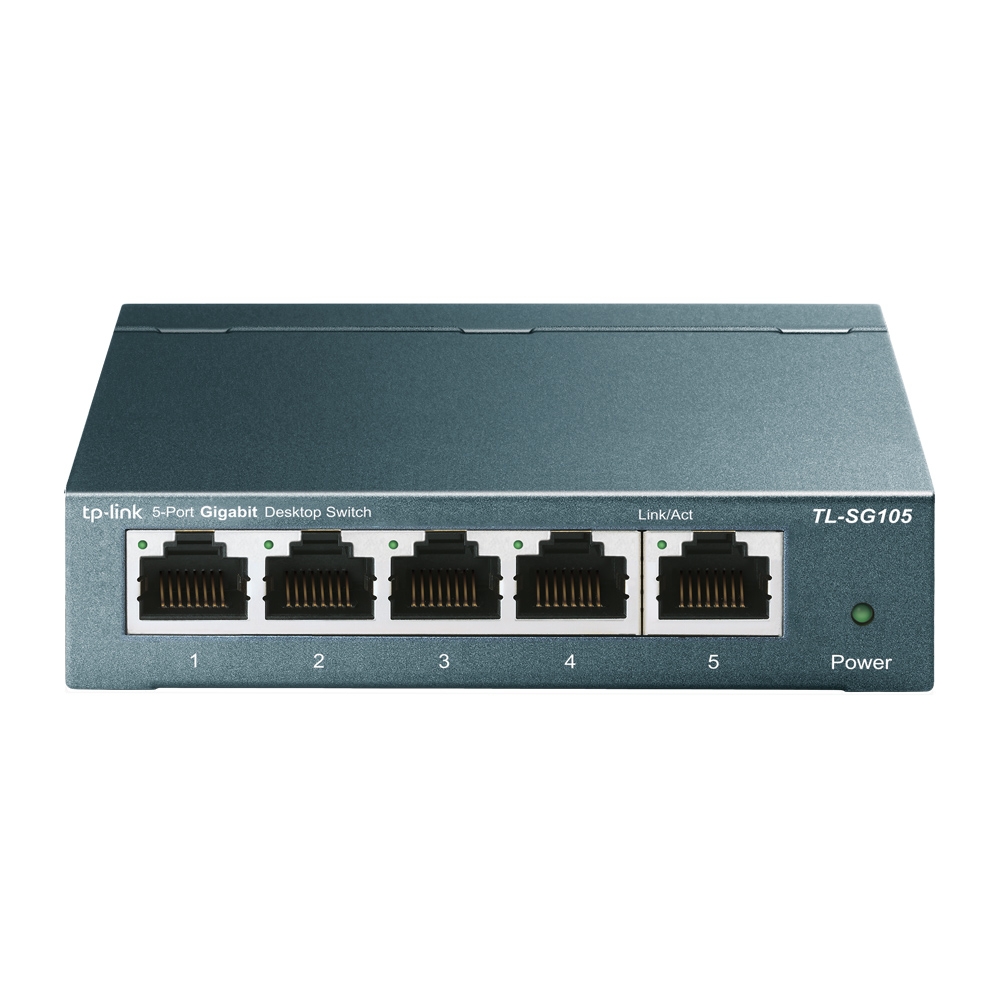

TP-LINK METAL GIGABIT SWITCH 5-PORT TL-SG105 - Description
Expand your local wired network quickly and securely with the TP-Link TL-SG105 5-Port Gigabit Desktop Switch. Designed for demanding home offices, creative studios, and small-to-medium businesses, this unmanaged switch increases data transfer speeds up to 1000 Mbps across all connected devices, making heavy file transfers, 4K streaming, and network gaming smoother than ever.
High-Speed Gigabit Connectivity
Equipped with 5 auto-negotiation 10/100/1000 Mbps RJ45 ports, the TL-SG105 significantly expands your network capacity. Auto-MDI/MDIX eliminates the need for crossover cables, allowing you to simply connect your computers, NAS units, printers, and smart TVs for instant gigabit transmission.
Robust Metal Casing & Silent Operation
The switch is shielded by a durable, high-grade metal casing that ensures optimal heat dissipation and robust physical protection. Its fanless architecture guarantees completely silent performance, making it ideal for quiet desktop setups, noise-sensitive workspaces, and conference rooms. Versatile mounting options allow easy placement on flat surfaces or securely mounted onto walls.
Smart Traffic Management & Energy Efficiency
Built-in 802.1p/DSCP Quality of Service (QoS) prioritizes latency-sensitive traffic such as voice and video, while IGMP Snooping optimizes multimedia traffic delivery. Integrated Green Ethernet technology automatically adjusts power consumption based on link status and cable length, helping you reduce your environmental footprint without compromising network reliability.
Key Features
- 5 Gigabit Ports: 10/100/1000 Mbps auto-negotiation RJ45 ports with Auto-MDI/MDIX support.
- Plug and Play: Instant deployment with zero software or technical configuration required.
- Durable Steel Housing: Premium metal enclosure suitable for desktop placement or wall mounting.
- Silent Operation: Fanless design ensures zero operating noise in quiet work areas.
- Traffic Optimization: Supports 802.1p/DSCP QoS and IGMP Snooping for seamless media and data streaming.
- Green Ethernet: Innovative energy-efficient technology reduces power consumption.
- Reliable Data Transfer: IEEE 802.3x flow control prevents packet loss and guarantees stable transmission.
TP-LINK METAL GIGABIT SWITCH 5-PORT TL-SG105 - Specifications
General
- Brand
- TP-Link
- Model
- TL-SG105
- SKU
- OS-TL-SG105
- Device Type
- Unmanaged Gigabit Switch
- Enclosure Type
- Desktop / Wall-Mountable Metal Casing
Network Ports & Interfaces
- Total Ports
- 5
- Port Type
- 10/100/1000 Mbps RJ45
- Auto-MDI/MDIX
- Supported
- Auto-Negotiation
- Supported
Standards & Protocols
- Networking Standards
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
- Flow Control
- IEEE 802.3x Flow Control
- Advanced Features
- Green Technology, 802.1p/DSCP QoS, IGMP Snooping
Performance
- Switching Capacity
- 10 Gbps
- Packet Forwarding Rate
- 7.4 Mpps
- MAC Address Table
- 2K
- Packet Buffer Memory
- 1.5 Mb
- Jumbo Frame
- 16 KB
Physical & Environmental
- Cooling
- Fanless (Passive)
- Dimensions (W x D x H)
- 99.8 x 98 x 25 mm
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Operating Humidity
- 10% to 90% RH non-condensing
- Power Supply
- External Power Adapter (Output: 5VDC / 0.6A)
