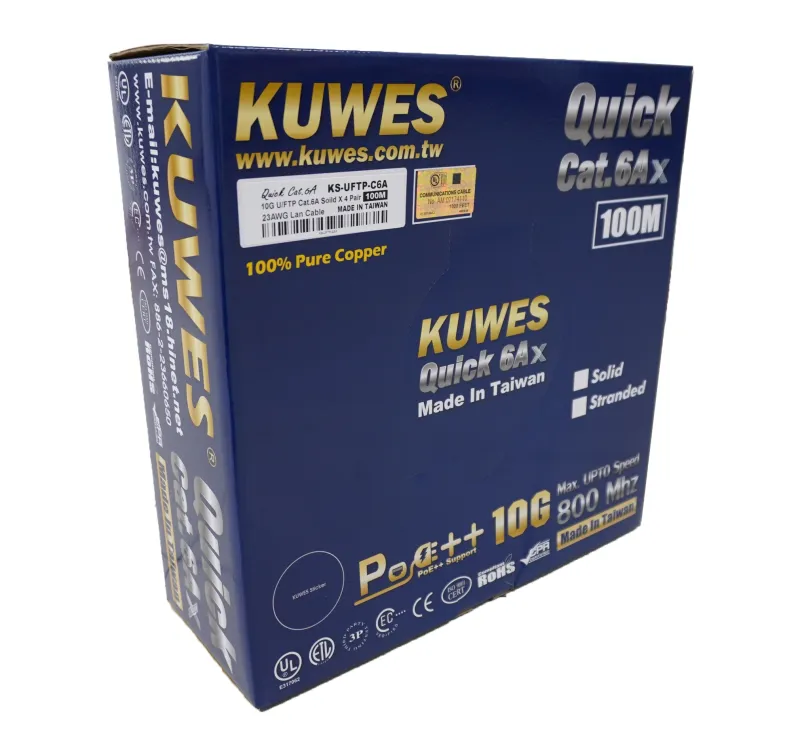

Kuwes CAT6A FTP Pure Copper Indoor 100m Grey - Description
Upgrade your network infrastructure with the Kuwes CAT6A FTP Pure Copper Indoor Network Cable 100m (SKU: MS-25985). Designed to support high-bandwidth applications, 10 Gigabit Ethernet (10GBASE-T), and frequencies up to 500 MHz, this professional-grade cable delivers exceptional transmission speeds and unwavering reliability for modern business and residential IT installations.
Pure Bare Copper & Foiled Shielding
Unlike inferior copper-clad aluminum (CCA) alternatives, this Kuwes CAT6A cable utilizes 100% solid bare copper 23 AWG conductors. It features robust Aluminum-Mylar tape shielding paired with a tinned copper drain wire (FTP / F/UTP), effectively mitigating alien crosstalk (AXT), radio frequency interference (RFI), and electromagnetic interference (EMI) even in dense cable conduits.
Key Features
- 100% Solid Bare Copper: Heavy-duty AWG23 pure copper conductors for maximum conductivity, reduced attenuation, and complete compliance with structured cabling standards.
- High-Bandwidth Performance: Optimized for bandwidths up to 500 MHz, ensuring seamless 10Gbps data transmission and reliable Power over Ethernet (PoE/PoE+) capabilities.
- FTP Screened Protection: Aluminum-Mylar tape shield with drain wire prevents data loss caused by electrical and environmental interference.
- Durable Construction: Features high-density polyethylene (HDPE) insulation and a resilient 75°C flame-retardant PVC jacket for smooth pulling and long-term durability.
- Versatile 100m Length: Convenient 100-meter roll, ideal for office cabling, server rack connections, security camera (CCTV) deployments, and smart home setups.
Kuwes CAT6A FTP Pure Copper Indoor 100m Grey - Specifications
General
- Brand
- KUWES
- Model / SKU
- MS-25985
- Cable Standard
- Category 6A (CAT6A)
- Shielding Type
- FTP (Foiled Twisted Pair / F-UTP)
- Cable Length
- 100 Meters
- Color
- Grey
- Environment
- Indoor
Conductor & Construction
- Conductor Material
- Solid Bare Copper
- Conductor Diameter
- 1 x AWG23
- Number of Pairs
- 4 Twisted Pairs (8 Conductors)
- Pair Color Code
- Blue/White, Orange/White, Green/White, Brown/White
- Insulation Material
- HDPE (High-Density Polyethylene)
- Insulation Thickness
- Min. Avg: 0.45 mm / Min: 0.38 mm
- Shielding
- Aluminum-Mylar Tape
- Drain Wire
- Tinned Copper Conductor
- Jacket Material
- 75°C PVC Compound
- Jacket Thickness
- Min. Avg: 0.585 mm / Min: 0.458 mm
- Approximate Outer Diameter (OD)
- 7.8 mm ± 0.3 mm
Electrical Characteristics
- Frequency Support
- 1 to 500 MHz
- Characteristic Impedance (Zo)
- 85–115 Ω (1–500 MHz)
- Conductor Resistance
- Max. 7.32 Ω / 100m at 20°C
- DC Resistance Capacitance Unbalance
- 3%
- Pair-to-Ground Capacitance Unbalance
- Max. 330 pF / 100m
- Mutual Capacitance
- Max. 5600 pF / 100m
- Nominal Velocity of Propagation (NVP)
- 74%
- Spark Test
- Outer Jacket: 2.5 KV | Insulation: 1.75 KV
- Dielectric Strength
- 1.5 KV AC / 2 seconds
Thermal & Operating Conditions
- Installation Temperature Range
- 0°C to 50°C
- Operation Temperature Range
- -10°C to 60°C
- Storage Temperature Range
- -20°C to 70°C
- Temperature Rating
- 75°C
