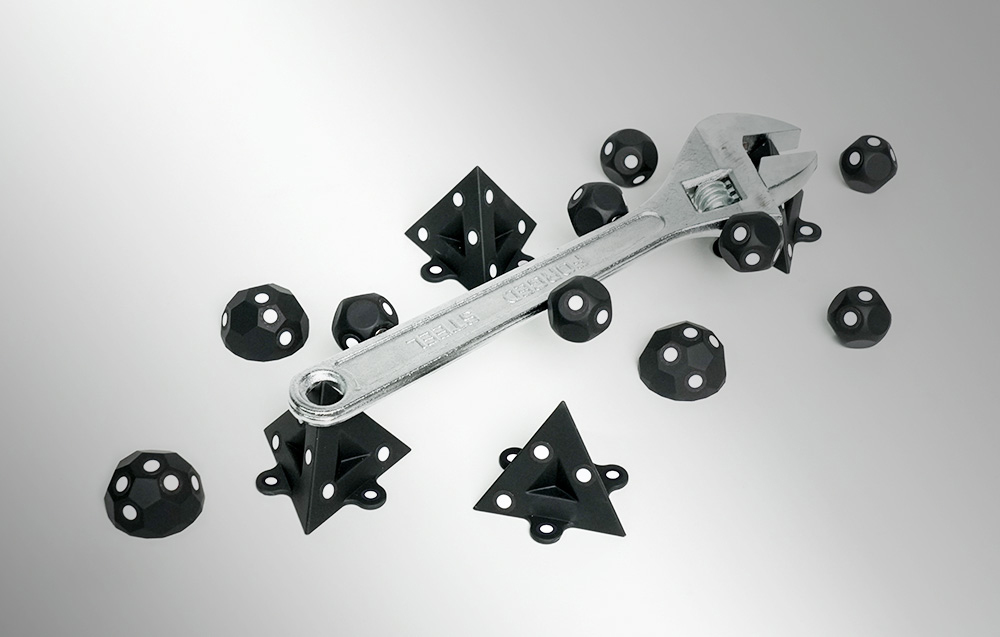

Revopoint Reference Block Set - Description

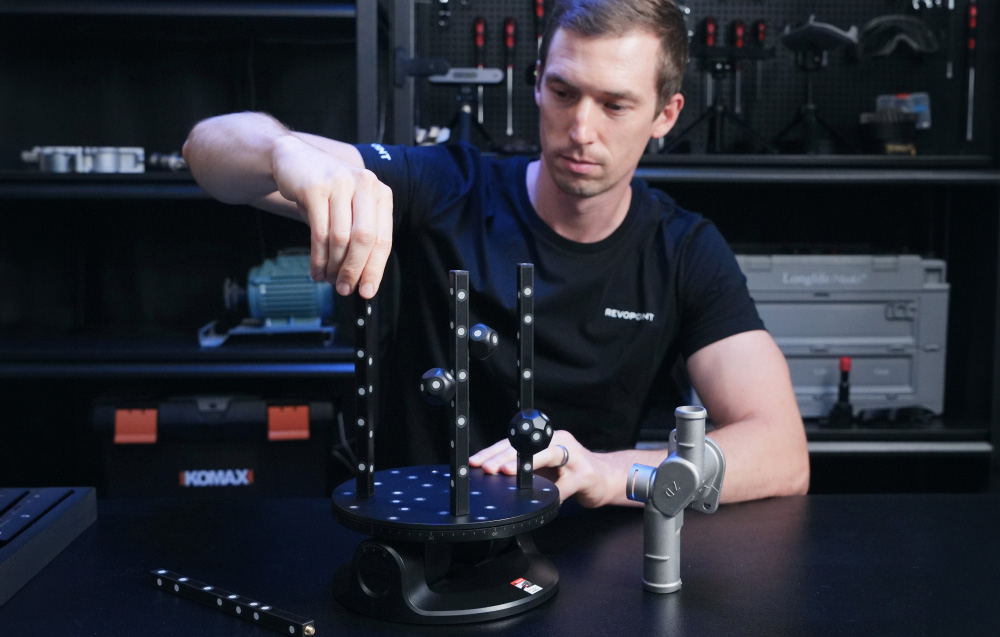

The Revopoint Reference Block Set is a practical solution that significantly improves the accuracy and stability of 3D scanning. By using markers with specific dimensions and varying geometries, the scanner receives more reference points, which translates to better object tracking and more accurate alignment of successive frames. In practice, this means fewer errors, fewer corrections, and a more predictable final result—especially when scanning smooth, symmetrical, or featureless surfaces.
Each marker type in the set has a specific size and point layout, allowing the scanner to more easily recognize its position in space. Larger elements, such as pyramid markers (67 × 55 mm), are clearly visible even from a greater distance, making them ideal for larger objects. Smaller markers—spherical (30 mm) and dome-shaped (41 × 22 mm)—enable accurate detail capture during close-up scanning. This allows you to tailor your workflow to a specific project.

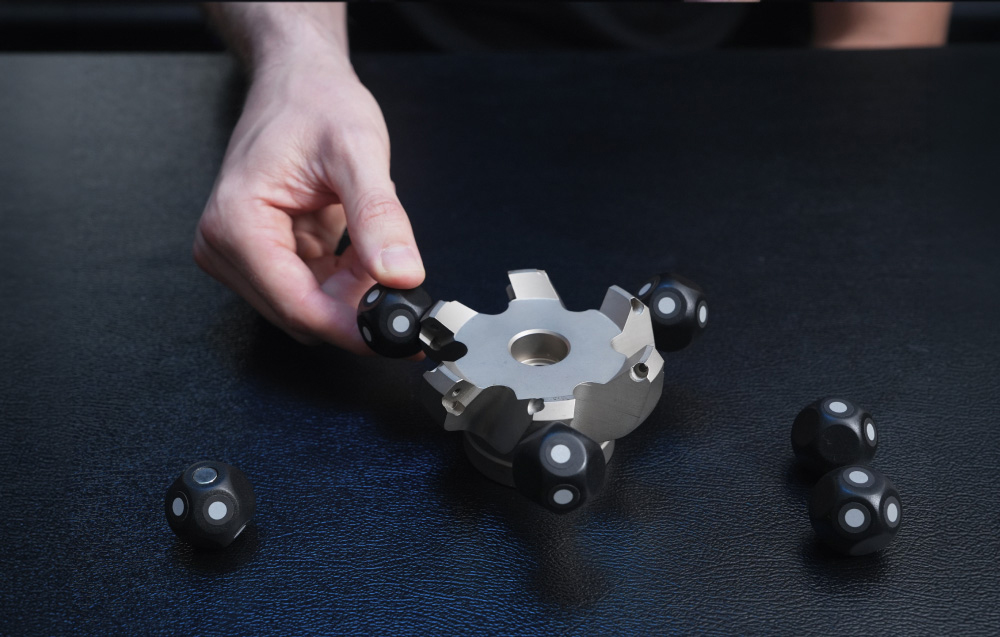

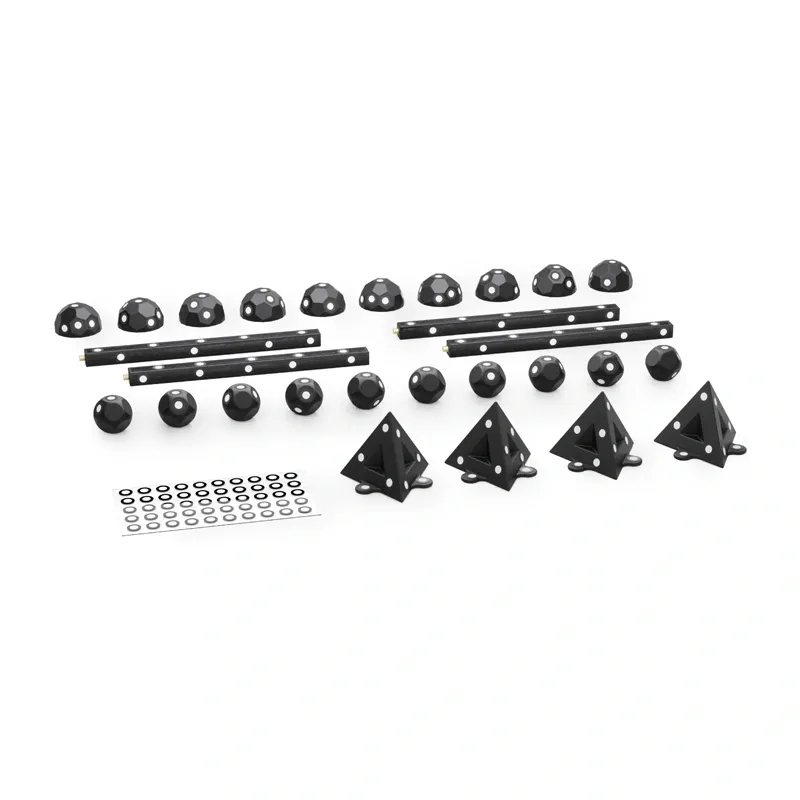

The kit combines point, spatial, and linear markers. Spheres and domes allow you to quickly create a grid of reference points around an object, pyramids stabilize tracking in more challenging conditions, and marker strips (205 mm long) assist with elongated elements or those requiring axis preservation. Additional self-adhesive markers (6 mm / 10 mm) allow for denser point coverage where even greater accuracy is required.

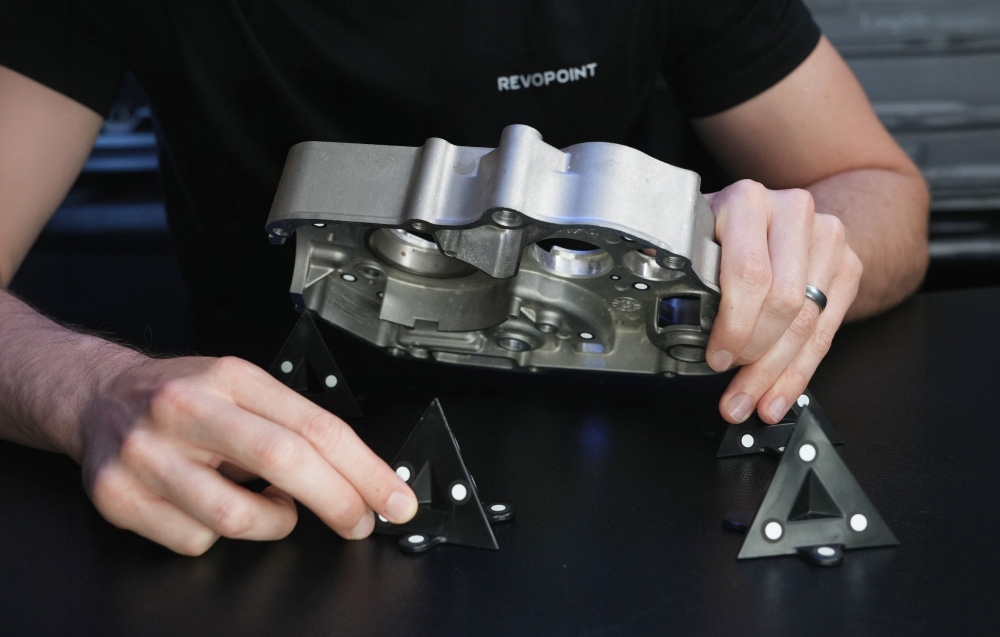

Spherical, dome, and pyramid markers are equipped with 8 mm diameter magnets. This allows them to be quickly and securely placed on metal surfaces without additional mounts. Stable mounting reduces the risk of markers shifting during operation, which directly impacts scan quality.

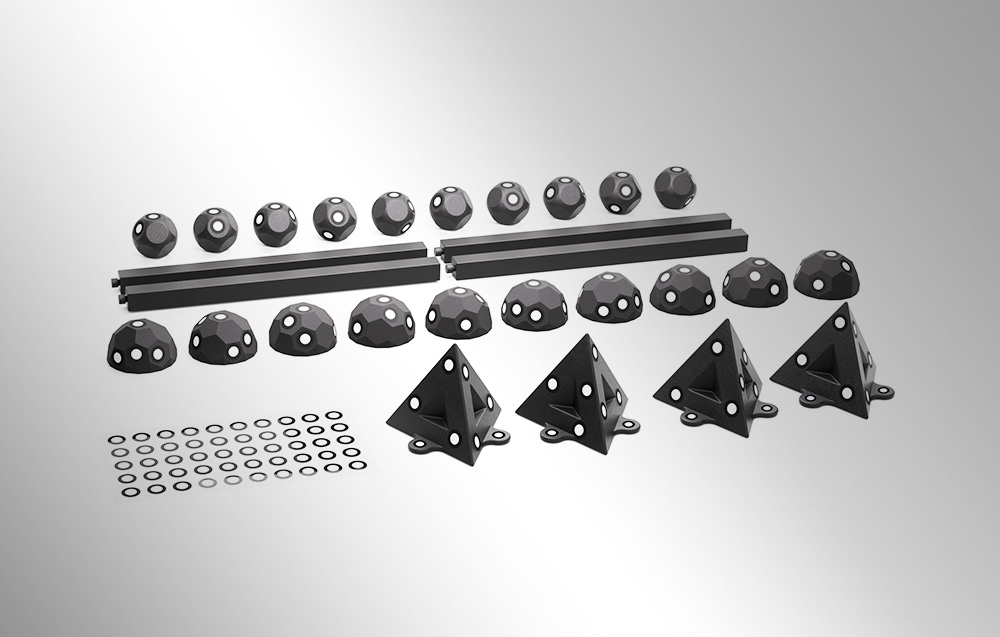

The set is compatible with most Revopoint 3D scanners, including the POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, and MetroX series (including laser modes). It works well for both quick overview scans and precise engineering projects where alignment accuracy and tracking stability are critical.
Revopoint Reference Block Set - Specifications
General
- Brand
- REVOPOINT
- Model / MPN
- INN-MARKER-BLOCK-KIT
- Product Type
- 3D Scanner Tracking & Reference Aid
- Primary Application
- Marker-based 3D scanning on smooth/featureless surfaces
Compatibility
- Compatible Hardware
- Revopoint POP Series, MINI Series, RANGE Series, INSPIRE, MIRACO Series
- Scanner Technology Support
- Infrared Structured Light, Optical 3D Scanners
Features & Functionality
- Tracking Method
- Elevated multi-surface reference markers
- Mounting Mechanism
- Magnetic base / modular placement
- Reusable
- Yes
Physical Attributes
- Color
- Black / High-contrast targets
- Body Material
- Engineered durable lightweight polymer with embedded magnets
