RAVEN-MAX-RTK 3D SCANNER 3DMAKERPRO - Description
Continuous Creativity
Each battery supports up to 2 hours of scanning and features a quick-swap design so your projects can continue without interruption.

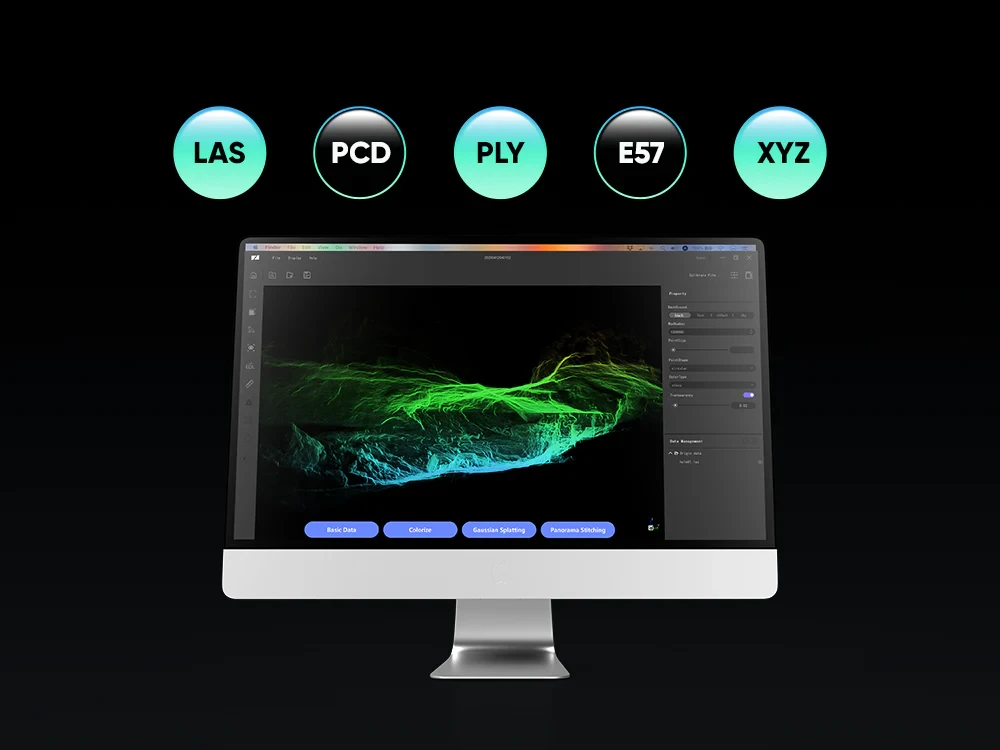

Seamless Workflow Integration
RayStudio supports all major industry standard formats, ensuring your data is ready for any CAD, BIM, or 3D design software instantly.

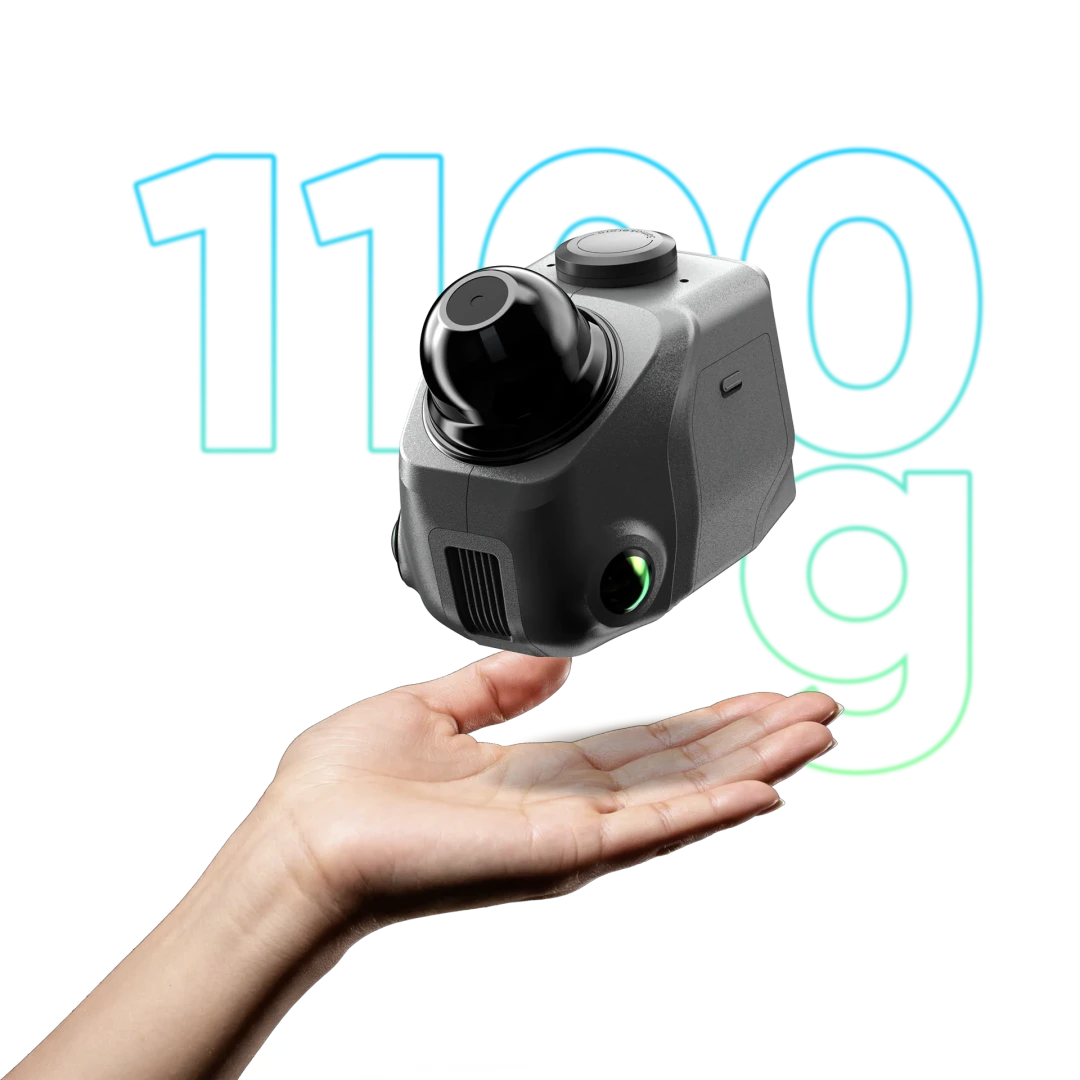

Lightweight Mobility
Weighing only 1100 g, Raven is designed to be carried anywhere. Its compact body combines powerful scanning capabilities in a highly portable form factor.
RAVEN-MAX-RTK 3D SCANNER 3DMAKERPRO - Specifications
General
- Brand
- 3DMAKERPRO
- Model
- RAVEN-MAX-RTK
Scanning Performance
- Accuracy
- 2cm @ 10 meters, 3cm @ 20 meters, 5cm @ 40 meters
- Scan Radius
- 40 m @ 10% reflectivity, 50 m @ 80% reflectivity
- Scan Range
- 80-100 meters
- Scan Angle (FOV)
- Horizontal 360°, Vertical 40°
- Point Cloud Frequency
- 150,000 points/second
- SLAM Technology
- Enhanced SLAM
- Output Formats
- LAS / PCD / PLY / OBJ / E57 / XYZ
Imaging & Optics
- Color Texture
- 2 x 12MP Camera System
- Sensor Size
- 1/2"
- Laser Light Source
- 905 nm
- Eye Safety Level
- Class 1 (IEC60825-1:2014) Eye Safe
- HDR Mode
- No
Hardware & Connectivity
- Processor
- 8 Cores 2.4GHz
- Internal Storage
- 32GB (Supports TF card expansion)
- Screen
- 3.9" AMOLED
- Data Interface
- 1 x USB Type-C
- Network Support
- Wi-Fi 5
- RTK Support
- Built-in GNSS Module with RTK Support (Centimeter-level absolute positioning outdoors)
- Expansion Support
- Insta360 X4/X5 Expansion Kit
Power
- Handle Battery
- 12000mAh (Up to 2 hours of operation, supports external power supply while charging)
- Power Delivery
- 1 x PD 65W USB Type-C
Physical & Power Attributes
- Product Dimensions
- 148 × 288 × 98 mm
- Net Weight
- 1.1 kg
