RAVEN-MAX 3D SCANNER 3DMAKERPRO
SKU: RAVEN-MAX
Brand: 3DMAKERPRO

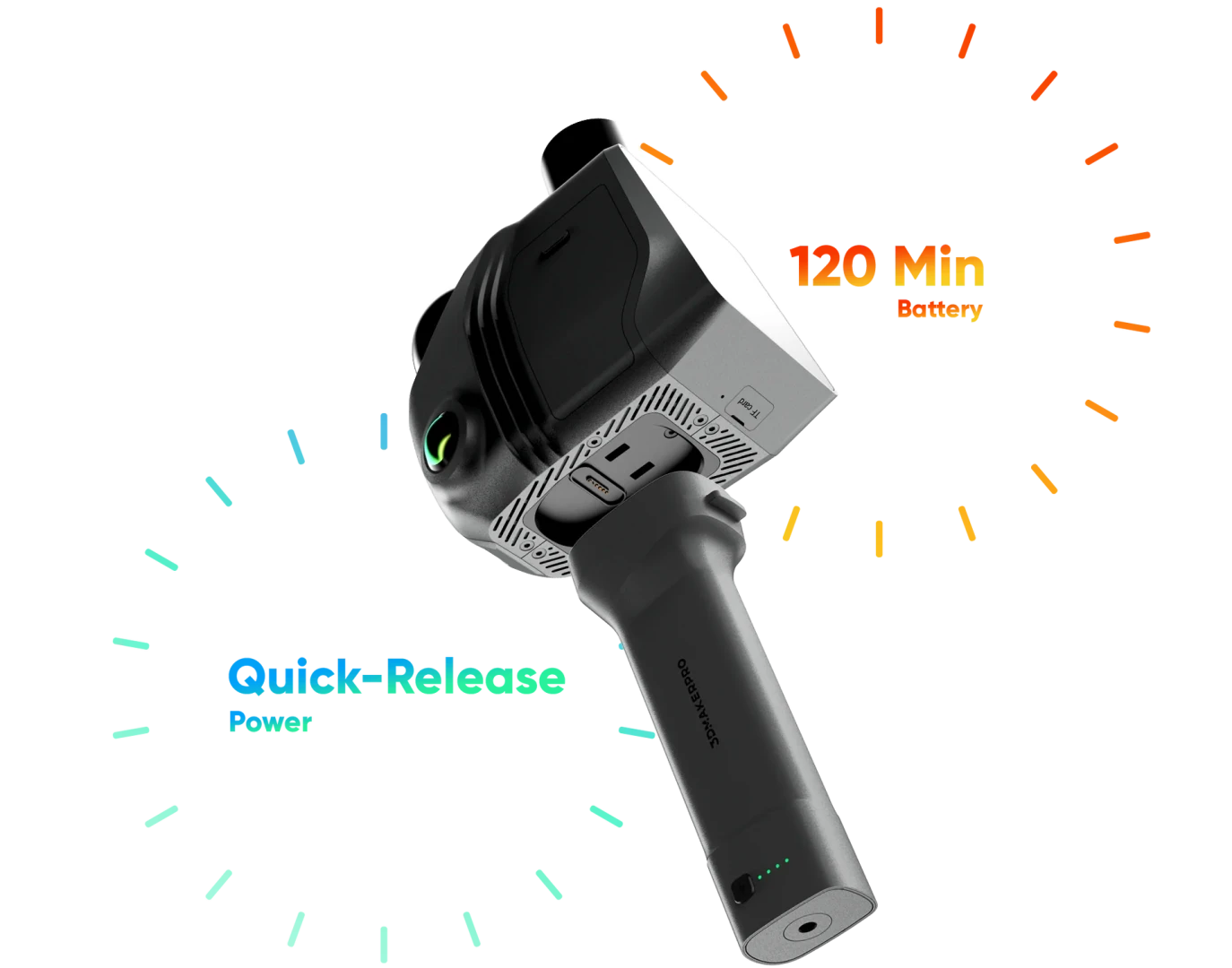

Continuous Creativity
Each battery supports up to 2 hours of scanning and features a quick-swap design so your projects can continue without interruption.

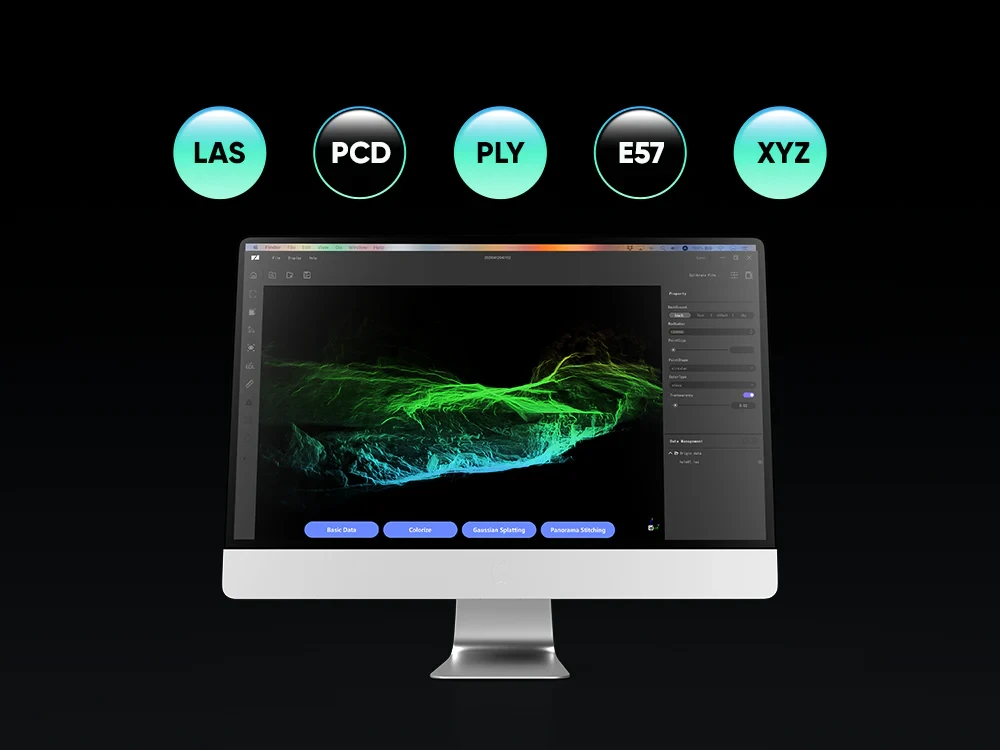

Seamless Workflow Integration
RayStudio supports all major industry standard formats, ensuring your data is ready for any CAD, BIM, or 3D design software instantly.

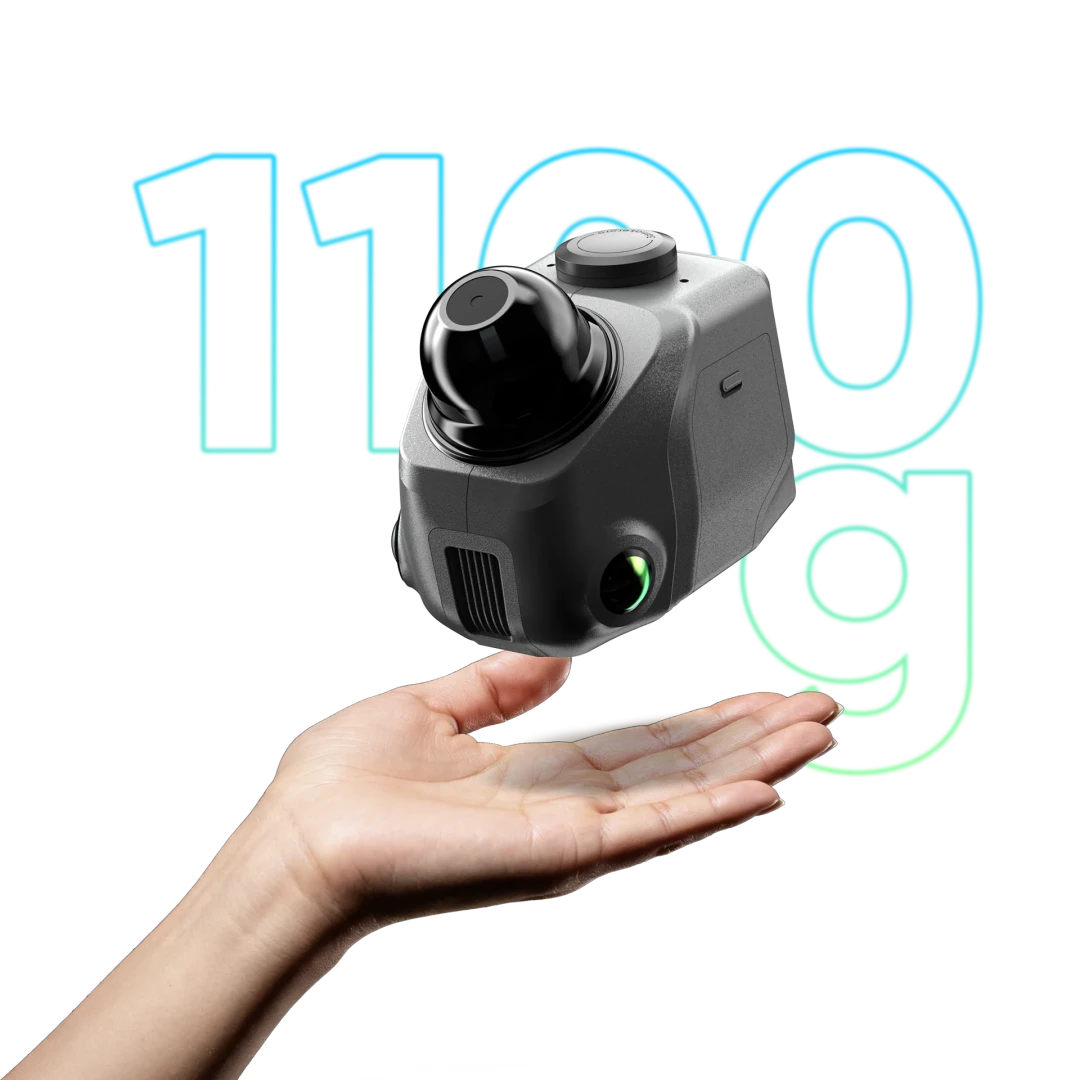

Lightweight Mobility
Weighing only 1100 g, Raven is designed to be carried anywhere. Its compact body combines powerful scanning capabilities in a highly portable form factor.
General
- Brand
- 3DMAKERPRO
- Model
- Raven-Max
- Device Type
- Long-Range 3D Scanner
- Laser Light Source
- 905 nm
- Laser Safety Class
- Class 1 (IEC60825-1:2014 Eye Safe)
Scanning Performance
- Accuracy
- 2cm @ 10m, 3cm @ 20m, 5cm @ 40m
- Scan Range
- 80 - 100 m
- Scan Radius
- 40m @ 10% reflectivity, 50m @ 80% reflectivity
- Scan Angle
- Horizontal 360°, Vertical 40°
- Point Cloud Frequency
- 150,000 points/second
Display & Imaging
- Screen
- 3.9-inch AMOLED Display
- RTK Positioning Support
- Yes
- Color Texture Camera
- 12MP Camera System
- HDR Mode
- No
Connectivity & Expansion
- Data Interface
- 1x USB Type-C
- Wireless Connectivity
- Wi-Fi 5
- Expansion Support
- Insta360 X4 / X5 Expansion Kit
Physical Attributes
- Dimensions
- 148 x 288 x 98 mm
- Weight
- 1.1 kg
