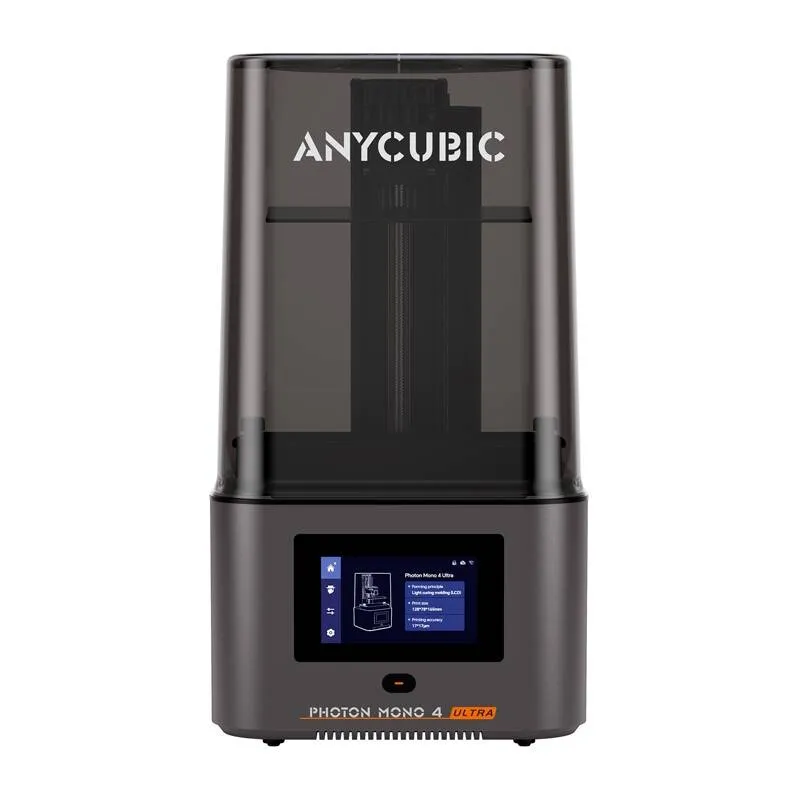

Anycubic Photon Mono 4 Ultra 3D Printer - Description

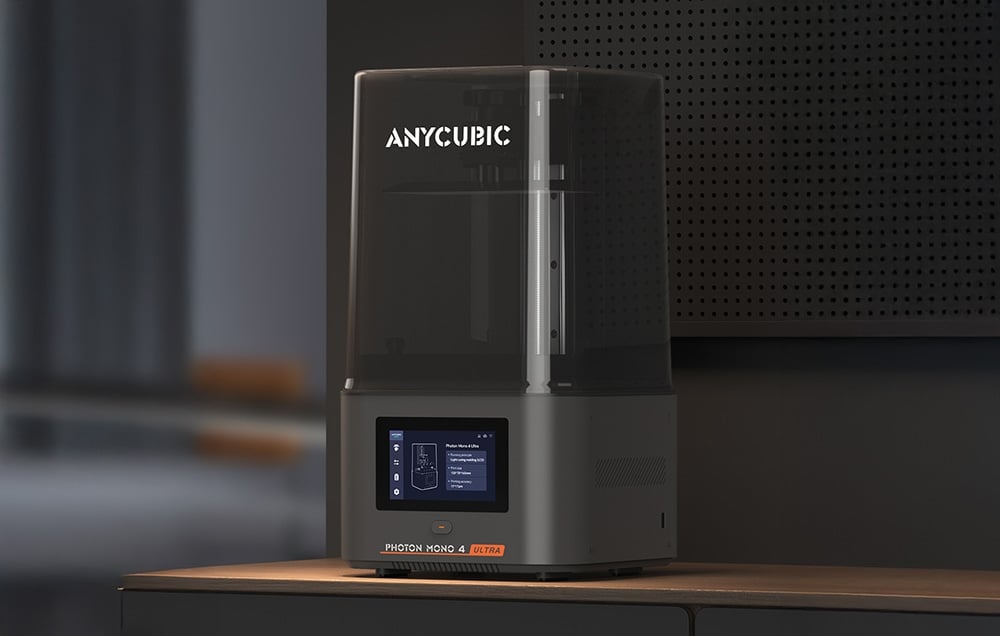

The Anycubic Photon Mono 4 Ultra 3D printer is an advanced device designed for precision and efficiency in resin printing. Equipped with a high-resolution monochrome LCD screen, it ensures precise layer exposure and delivers high-quality prints with fine detail in a compact design. The Photon Mono 4 Ultra is the ideal solution for both professionals and hobbyists who value reliability and versatility.

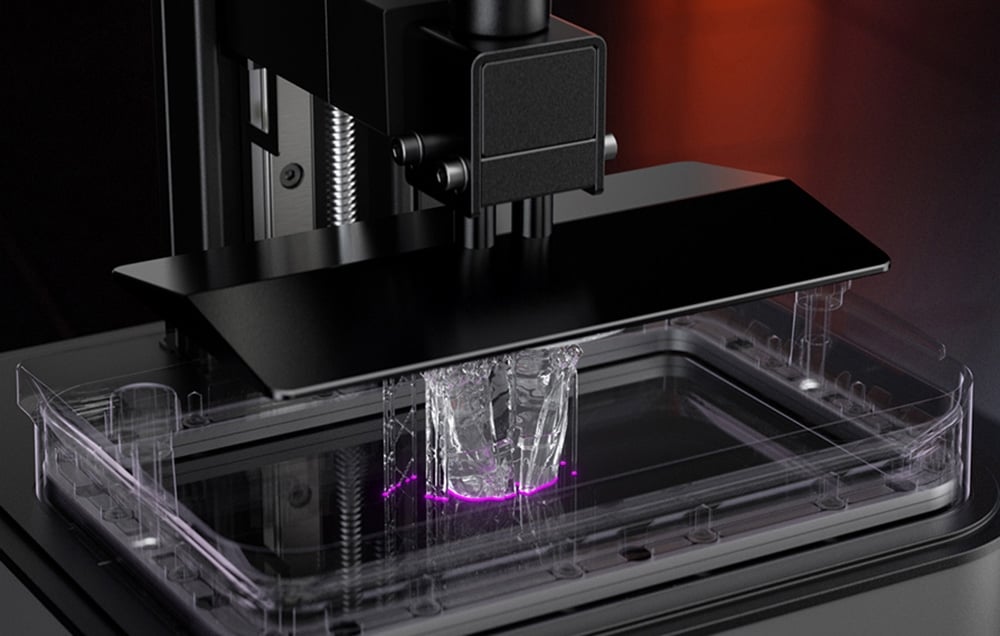

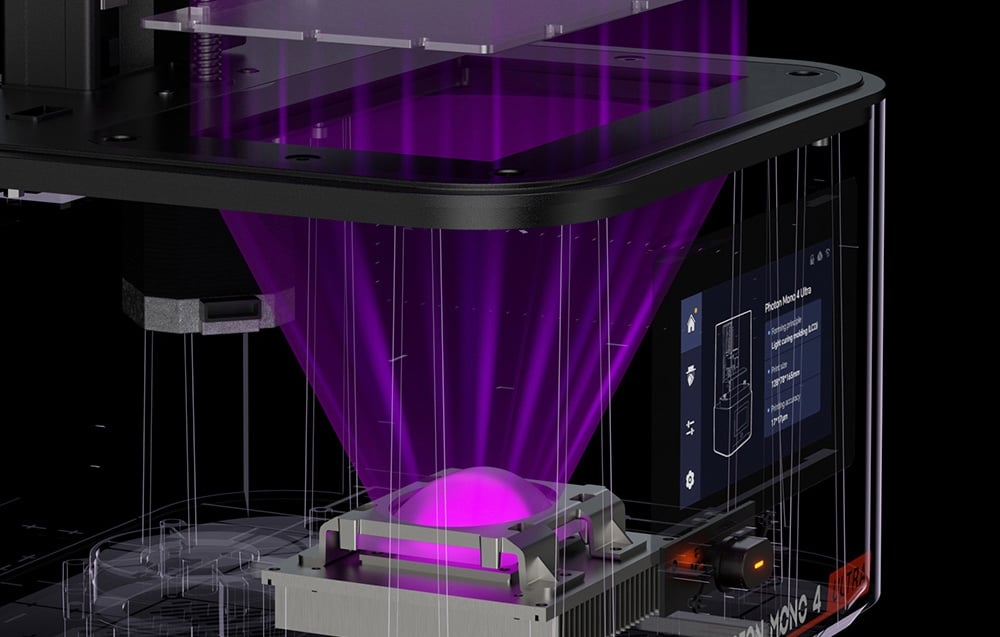

The Photon Mono 4 Ultra is equipped with a durable and energy-efficient COB light source with a Fresnel lens, which ensures an exceptional service life—up to 20,000 hours of operation. This design guarantees high light uniformity (≥90%) and irradiance (≥3,500 μW/cm²) across the entire surface of the 10K monochrome LCD screen. As a result, the printer is not only more cost-effective but also ensures long-lasting and reliable operation.

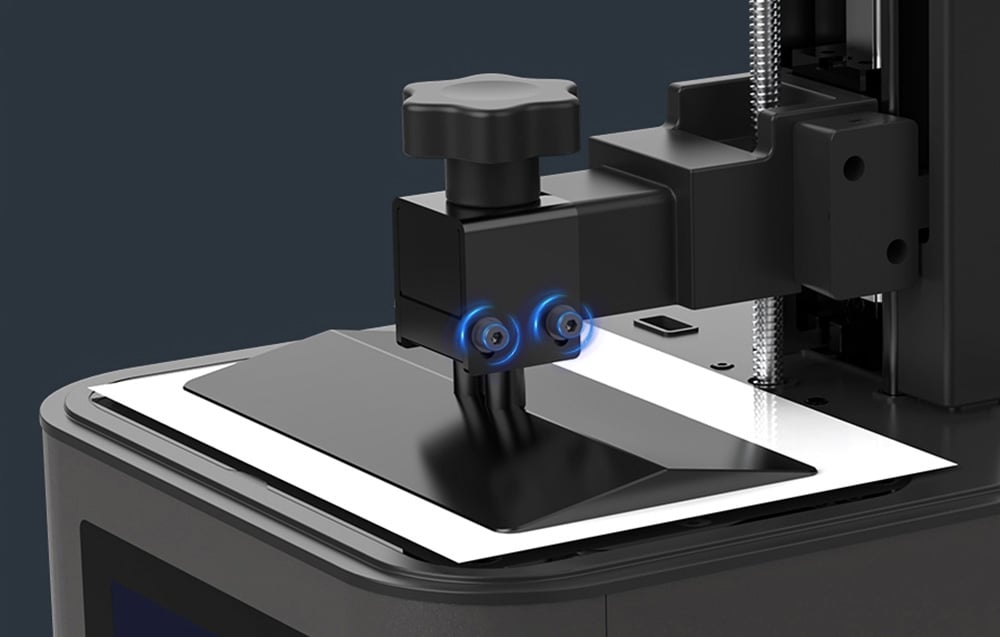

Despite its small size, the printer offers a workspace large enough to handle a variety of projects—from precision prototypes to jewelry and artistic models. Its compact design means it fits in any workshop or studio without taking up too much space, while still delivering high-quality prints.

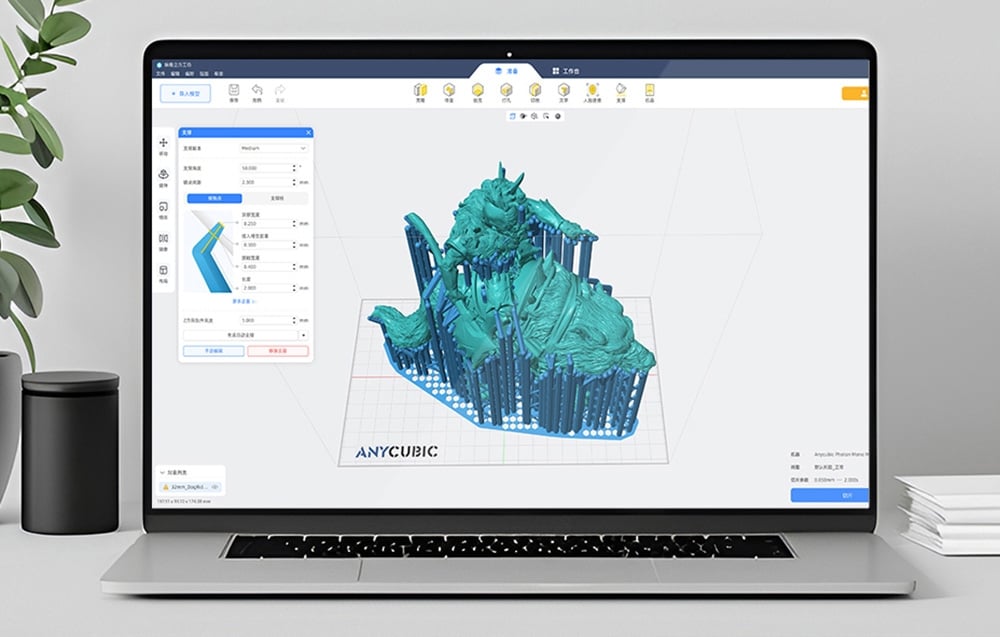

The printer was designed with users in mind who value convenience and ease of use. An intuitive interface and a clear touchscreen allow for easy configuration of settings, and compatibility with a wide range of software ensures that working with the Photon Mono 4 Ultra is smooth and hassle-free. Additionally, the device supports a variety of resins, giving users greater flexibility in their projects.
LCD technology with a COB illumination system not only ensures exceptional print quality but also reduces energy consumption. Thanks to its optimized lighting system, the Photon Mono 4 Ultra is more environmentally friendly while also lowering operating costs. It’s the ideal choice for those who value modern, eco-friendly solutions.
The Photon Mono 4 Ultra is perfectly suited for a wide range of fields, such as medicine, engineering, design, and art. The printer allows you to carry out a wide variety of projects—from functional prototypes and conceptual models to highly aesthetic details. Its capabilities open up new possibilities for both professionals and hobbyists exploring the world of 3D printing.
The device is made of high-quality materials, ensuring durability and stable operation. The precise craftsmanship of each component ensures that the printer operates flawlessly even under heavy use. The Photon Mono 4 Ultra is a piece of equipment you can rely on in any situation.
Anycubic Photon Mono 4 Ultra 3D Printer - Specifications
General
- Brand
- ANYCUBIC
- Model
- Photon Mono 4 Ultra
Printing Specifications
- Printing Technology
- UV LCD
- Printing Volume
- 153.4 x 87 x 165 mm³ (2.2L)
- Printing Speed (Max)
- ≤80mm/h (Standard Resin, 0.1mm); ≤120mm/h (High-Speed Resin, 0.1mm)
- Layer Height Range
- 0.02-0.15mm
- XY Resolution
- 17 x 17 μm
- Z-axis Accuracy
- 20 μm
- Light Source
- COB light source + Fresnel lens + Light uniformity algorithm
- Light Intensity
- ≥3500μW /cm²
- Build Platform
- Laser-engraved aluminum build plate
- Release Film
- ACF film
- Resin Vat Capacity
- ≤0.39L
- Material Compatibility
- High-speed, water-washable, standard, ABS-like, and plant-based resins, etc.
Display & Operation
- Printing Screen
- 7-inch monochrome LCD
- Screen Resolution
- 10K (9024 x 5120 px)
- Operating Screen
- 4.3" Touch-Control
- Machine Leveling
- 4-point manual leveling
Connectivity & Software
- File Transfer
- USB, WiFi, LAN
- Slicing Software
- Anycubic Photon Workshop
- Supported Operating Systems
- Windows (7+)
- Supported Formats (Slicer)
- STL, OBJ
- Multilingual Support
- EN / CN / DE / FR / IT / ES / RU / JP
Physical & Power Attributes
- Rated Power
- 66 W
- Printer Dimensions
- 231 x 236 x 430 mm³
- Net Weight
- 5 kg
- Gross Weight
- 6.1 kg
