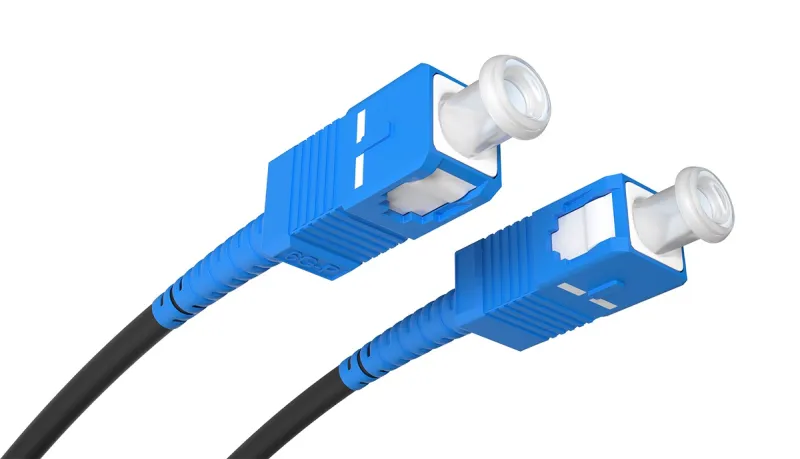

Opton Fiber Drop Patchcord SC/UPC-SC/UPC Outdoor 15.0m

The Opton Fiber Drop Patchcord SC/UPC-SC/UPC Outdoor 15.0m (MS-23116) is a robust, pre-terminated fiber optic drop cable engineered specifically for reliable 'last-mile' outdoor telecommunication links and FTTH (Fiber to the Home) subscriber deployments. Designed primarily for overhead runs between utility poles and customer premises, this patchcord delivers superior signal integrity while enduring challenging outdoor environmental conditions.

Resilient Construction & High Tensile Strength

Despite its compact 3 mm outer diameter, this drop patchcord offers high resistance to tensile forces and mechanical damage thanks to its interior reinforcement with high-strength aramid fibers. The heavy-duty outer jacket is engineered from premium UV-resistant material, protecting the core from solar degradation, weather exposure, and temperature fluctuations across extended outdoor spans up to 30 meters.

Superior Flexibility with G.657A2 Fiber

Incorporating premium G.657A2 single-mode optical fiber, this patchcord features a tight minimum bending radius of just 7.5 mm. This exceptional flexibility prevents signal attenuation caused by sharp turns, making routing through conduit, building entry points, and customer termination boxes clean, safe, and efficient.

Key Features

• Length: 15.0 meters, pre-terminated for fast and dependable plug-and-play deployment.
• Connector Type: Factory-polished SC/UPC to SC/UPC connectors for minimal insertion loss and back-reflection.
• Bend-Insensitive Fiber: Advanced G.657A2 single-mode fiber with a reduced bending radius of 7.5 mm.
• Durable Outdoor Design: UV-resistant outer jacket built to withstand sunlight, rain, and outdoor temperature shifts.
• Aramid Reinforcement: Internal aramid fiber yarns provide high tensile strength for overhead spans up to 30 meters.
• Compact Profile: Slim 3 mm overall cable diameter for easy handling, neat routing, and reduced wind-load resistance.
