Opton Fiber Patch Cord SC/APC-LC/UPC SM Simplex 10.0m

The Opton Fiber Patch Cord SC/APC to LC/UPC Singlemode Simplex 10.0m is a high-grade optical patch cable designed for reliable, high-bandwidth data transmission across modern telecommunications and enterprise networking setups. Featuring a hybrid connector configuration with an angled SC/APC connector on one end and an ultra-polished LC/UPC connector on the other, this cable provides exceptional versatility when bridging network equipment, GPON terminals, and optical distribution frames.

Precision Optical Performance

Manufactured using premium 9/125µm G.652.D singlemode fiber, this 10-meter patch lead ensures minimal attenuation and low insertion loss across standard telecommunication wavelengths (1310nm and 1550nm). The SC/APC interface delivers superior return loss performance, making it especially suitable for FTTH and broadband video or data signals where back-reflection must be minimized.

Durable and Safe Construction

Engineered for demanding indoor installations, the patch cord features a 3.0mm Low Smoke Zero Halogen (LSZH) outer jacket. In the event of fire, LSZH jackets emit negligible smoke and zero toxic halogens, ensuring maximum personnel safety and protection for sensitive equipment in server rooms, data centers, and office spaces.

Key Features

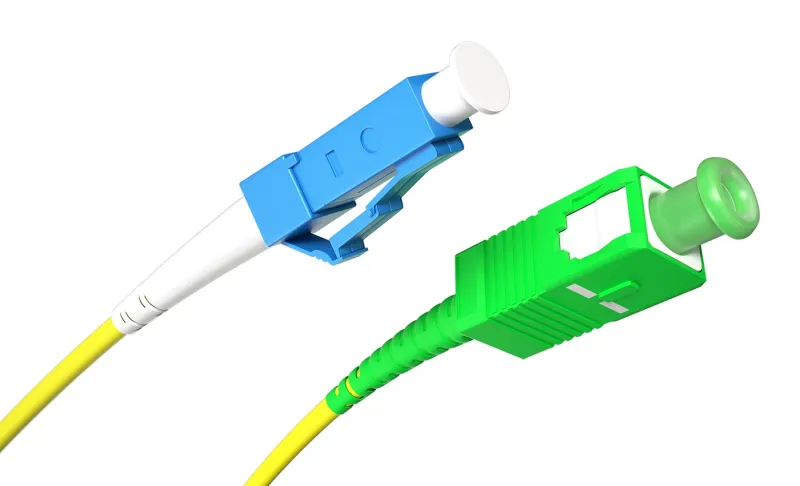

• Connector Combination: SC/APC (Green) to LC/UPC (Blue) for seamless equipment bridging
• Fiber Standard: Standard singlemode G.652.D (9/125 µm core/cladding diameter)
• Simplex Design: 1-core optical fiber construction suited for bidirectional single-fiber or dedicated links
• LSZH Sheath: 3.0mm flame-retardant Low Smoke Zero Halogen jacket for enhanced environmental safety
• Generous Reach: 10.0 meters length ideal for inter-rack patching and structured fiber cabling
• Versatile Applications: Fully compatible with FTTH networks, GPON/EPON terminals, media converters, and optical distribution frames (ODF)
