MOLE LUXURY 3D SCANNER 3DMAKERPRO
- Accuracy: 0.05mm
- Resolution: 0.1mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 150-400mm
- Single capture range: 200x100mm
- Typical object sizes: 15-1500mm
- Light source: NIR
- Color texture: Extended support
- USB interface: USB2.0
- Dimensions: 141x80x80mm
- Weight: 390g
- Output format:OBJ/STL/PLY
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Technical Specification

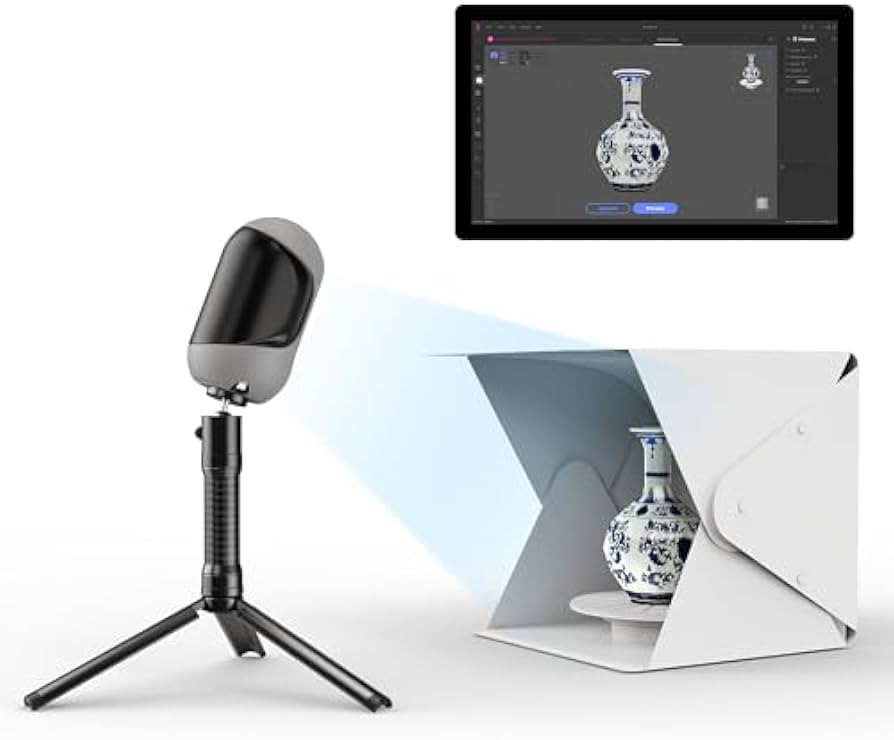

The 3DMakerPro Mole Luxury is the ultimate all-in-one package for 3DMakerPro’s high-precision NIR scanner. While the Standard and Premium versions focus on geometry, the Luxury Edition adds a dedicated Color Kit, making it the only choice in the Mole series for users who need to capture high-fidelity, photorealistic textures. It achieves a professional-grade 0.05mm accuracy and 0.10mm resolution, providing a versatile tool for digital artists, heritage preservationists, and industrial designers who require both dimensional precision and lifelike color.

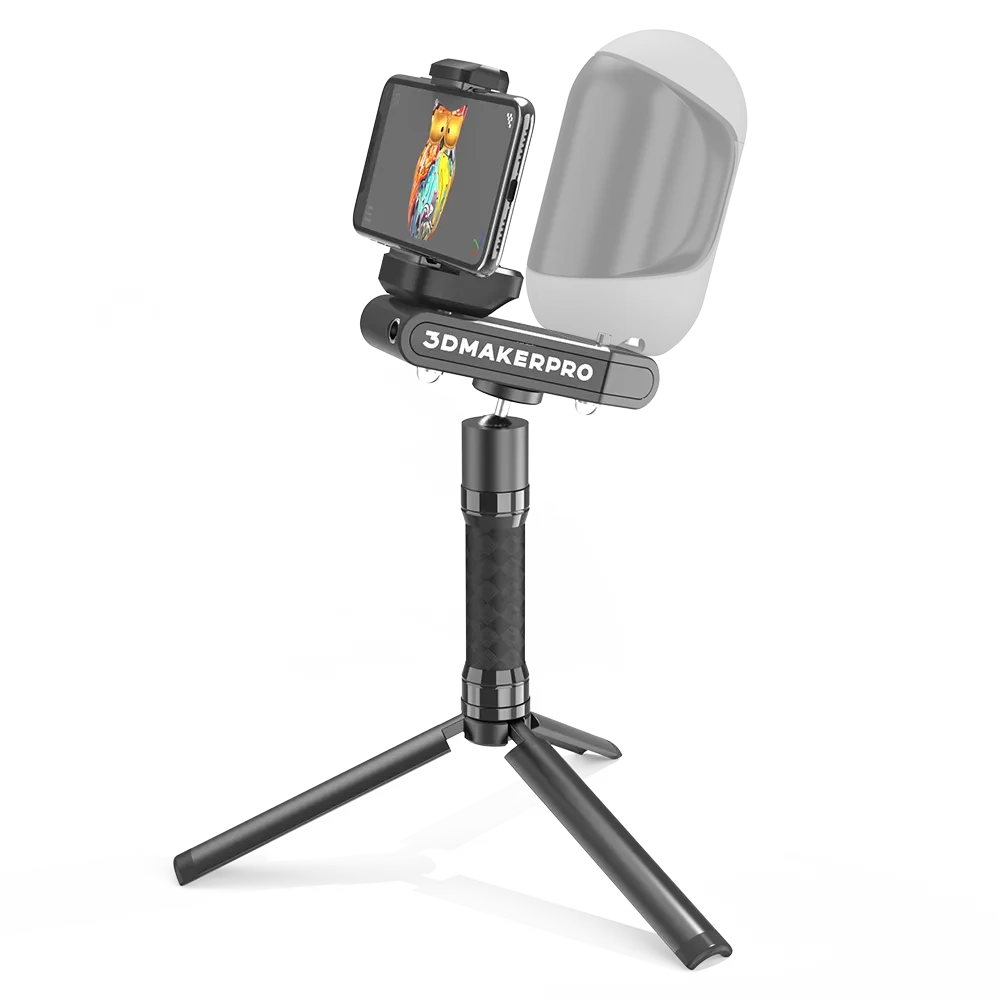

The Luxury Edition is a "studio-in-a-box," designed to provide a seamless transition between automated desktop scanning and mobile handheld use. This top-tier bundle includes the Color Kit (a specialized camera and lighting setup for texture mapping), an Automatic Turntable for 360° capture, and a Foldable Tripod for vibration-free scanning. To support professionals in the field, the package also includes a custom-fit Carrying Case that protects the scanner and its accessories during transport, ensuring you have a complete scanning workstation wherever you go.

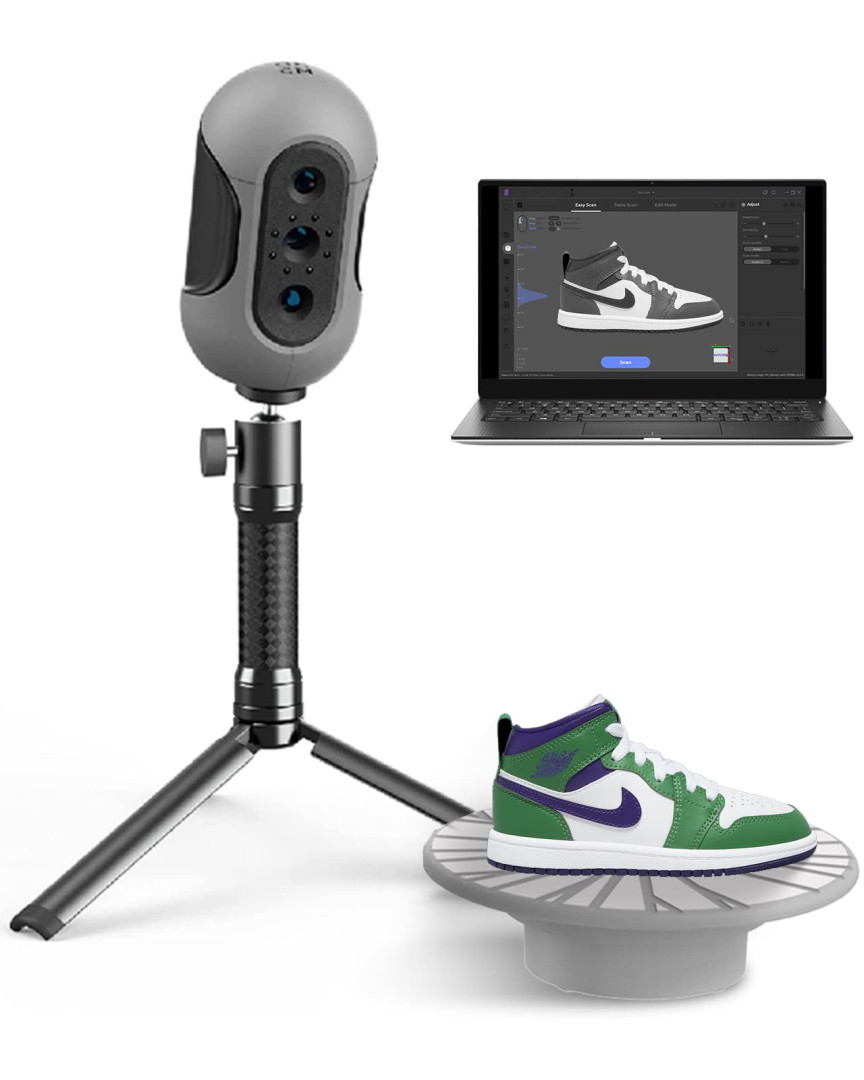

Equipped with Near-Infrared (NIR) structured light, the Mole Luxury is uniquely capable of scanning "difficult" materials, such as dark or completely black surfaces, without the need for scanning sprays. The scanner utilizes AI Visual Tracking for markerless scanning, automatically identifying geometry to maintain tracking even on large parts like car doors or engine covers. For handheld stability, it features an optical anti-shake module and Smart Error Correction, which filters out "noise" and misaligned data in real-time to ensure clean, high-density point clouds for export in OBJ, STL, and PLY formats.
