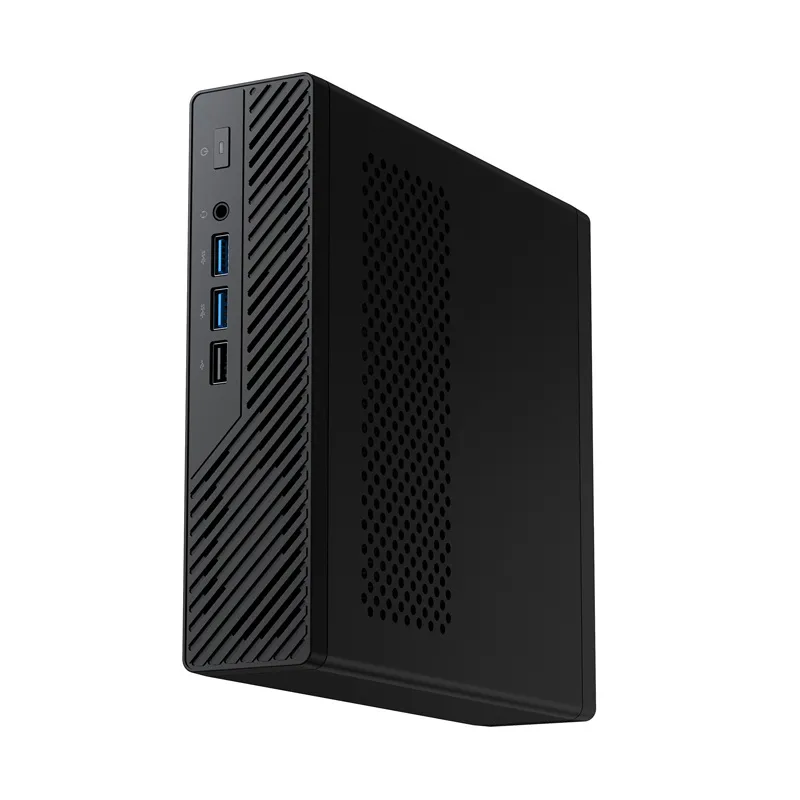

MINI-PC Minis Forum MS-A2-9955 AMD Ryzen 9 9955HX barebone
Unleash enterprise-grade desktop performance in a compact footprint with the Minis Forum MS-A2-9955 Barebone Mini PC. Engineered for power users, content creators, and IT professionals, this high-performance workstation is driven by the cutting-edge AMD Ryzen™ 9 9955HX processor built on the revolutionary Zen 5 architecture. Featuring 16 cores and 32 threads, it delivers blistering speeds up to 5.4 GHz to tackle intensive multitasking, data analysis, and heavy rendering with absolute ease.
Key Features
- Flagship Zen 5 Performance: AMD Ryzen™ 9 9955HX processor with 16 cores, 32 threads, and 64 MB L3 cache delivers desktop-class computing power.
- Next-Gen Memory Capabilities: Supports up to 96 GB of high-speed DDR5-5600 dual-channel RAM across two SO-DIMM slots for seamless workflow efficiency.
- Enterprise Storage Solutions: Accommodates triple SSD storage (including M.2 NVMe and U.2 drives) up to 15 TB total capacity with hardware RAID 0/1 support.
- PCIe x16 Expansion Slot: Features a full-length PCIe 4.0 x8 expansion slot to install dedicated graphics cards or specialized add-in expansion cards.
- Ultra-Fast Enterprise Networking: Equipped with dual 10G SFP+ fiber ports (Intel X710), dual 2.5G RJ45 Ethernet ports, Wi-Fi 6E, and Bluetooth 5.2 for ultimate network connectivity and high-speed data transfers.
- Triple Display Support: Output up to 8K resolution across 3 monitors simultaneously via HDMI 2.1 and two USB-C DisplayPort 2.0 ports.
- Advanced Cooling Architecture: Triple copper heat pipes, high-airflow cooling fan, and phase-change thermal interface material ensure sustained maximum performance without thermal throttling.
As a barebone system, the Minis Forum MS-A2-9955 gives you the freedom to customize your memory, storage, and operating system to perfectly match your workload requirements. Whether configured as a compact workstation, a multi-monitor productivity engine, or a high-speed home lab server, this Mini PC delivers unmatched performance and flexibility.
General
- Brand
- Minis Forum
- Model
- MS-A2-9955
- Form Factor
- Mini PC / Barebone Workstation
- Operating System
- None (Barebone - OS installation required)
Processor
- CPU Model
- AMD Ryzen™ 9 9955HX
- Architecture
- Zen 5
- Cores / Threads
- 16 Cores / 32 Threads
- Max Clock Speed
- Up to 5.4 GHz
- L3 Cache
- 64 MB
Graphics & Video Output
- Integrated GPU
- AMD Radeon™ 610M
- PCIe Expansion
- 1x PCIe x16 Slot (PCIe 4.0 x8 mode, lane splitting support)
- Multi-Display Support
- Up to 3 displays simultaneously
- Video Ports
- 1x HDMI 2.1 (up to 8K@60Hz), 2x USB-C (USB 3.2 Gen2 with DisplayPort Alt DP 2.0, up to 8K@60Hz / 4K@144Hz)
Memory Support
- Memory Type
- DDR5 SO-DIMM
- Slots
- 2x SO-DIMM
- Speed
- DDR5-5600 MHz
- Maximum Capacity
- Up to 96 GB (Dual-Channel)
Storage Options
- Primary Storage Slot
- 1x M.2 2280 / U.2 NVMe SSD (PCIe 4.0 x4, up to 15 TB)
- Secondary Storage Slots
- 2x M.2 2280/22110 NVMe / SATA SSD (PCIe 3.0 x4 default, configurable to PCIe 4.0 x4, up to 4 TB per slot)
- RAID Support
- RAID 0 / RAID 1
Networking & Connectivity
- High-Speed Fiber
- 2x 10 Gbps SFP+ (Intel X710)
- Ethernet LAN
- 2x 2.5 Gbps RJ45 (1x Intel i226-V, 1x Realtek RTL8125)
- Wireless LAN
- Wi-Fi 6E
- Bluetooth
- Bluetooth 5.2
I/O Interfaces
- Front Ports
- 1x 3.5mm Audio Combo Jack, 2x USB 3.2 Gen1 (5 Gbps), 1x USB 2.0
- Rear Ports
- 2x USB-C 3.2 Gen2 (10 Gbps, Alt DP 2.0), 1x HDMI 2.1, 1x USB 3.2 Gen2 (10 Gbps), 1x USB 3.2 Gen1 (5 Gbps), 2x 2.5G LAN, 2x 10G SFP+
- Audio
- 3.5mm Combo Jack (Front), Digital audio via HDMI and USB-C
Power & Dimensions
- Power Supply
- 19 V / 12.63 A (External Power Adapter)
- Dimensions (W x D x H)
- 196 × 189 × 48 mm
