Minix Ryzen HX 370 Barebone Mini PC - Description

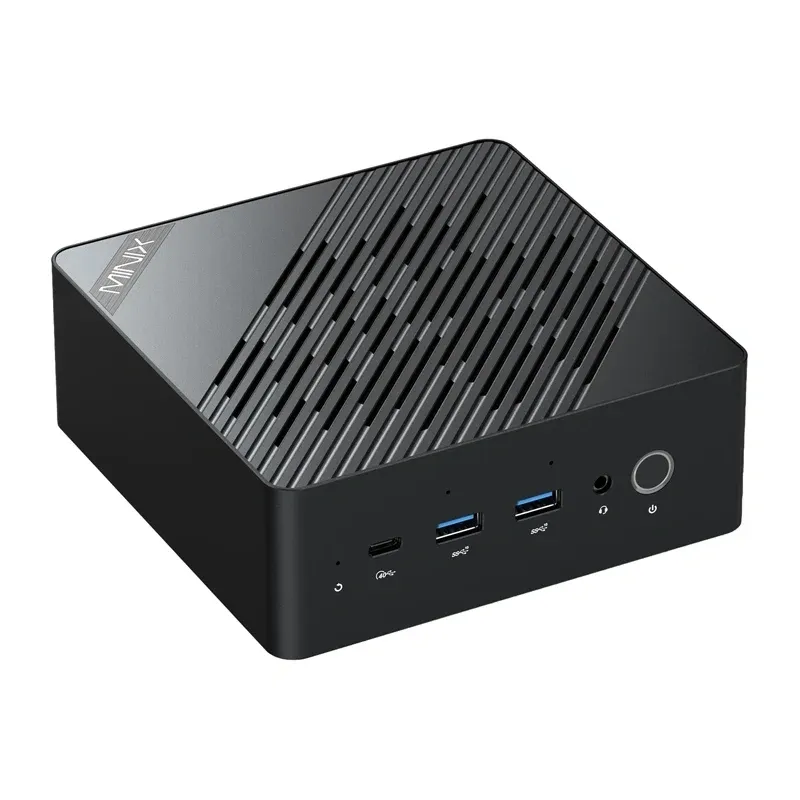

The Minix Mini PC is a high-performance computer housed in a compact case measuring 140.4 × 139.2 × 55.5 mm. The device is equipped with an AMD Ryzen AI 300-series processor, an AMD Radeon 890M graphics chip, and an NPU module offering performance of up to 50 TOPS, making it ideal for office work, graphics editing, video editing, and using AI-powered tools. The model supports up to 96 GB of DDR5 memory, provides space for two M.2 NVMe PCIe 4.0 SSDs, offers Wi-Fi 7 and Bluetooth 5.4 connectivity, and supports 8K display resolution at a 60 Hz refresh rate.
The AMD Ryzen AI 9 HX 370 processor is responsible for the computer’s high performance; it is designed for demanding applications and intensive multitasking. The integrated AMD Radeon 890M graphics chip ensures smooth operation of office applications, photo and video editing software, and many modern tools. An additional advantage is the inclusion of a dedicated NPU module, which supports artificial intelligence tasks and boosts productivity.
The Minix Ryzen HX 370 is equipped with HDMI 2.1, DisplayPort 2.0, and two USB-C 4.0 ports, allowing you to set up an extensive workstation consisting of multiple monitors. Support for 8K resolution at 60 Hz translates to highly detailed content and greater comfort during daily tasks. This solution is ideal for design, multimedia production, and analyzing large amounts of data, among other applications.

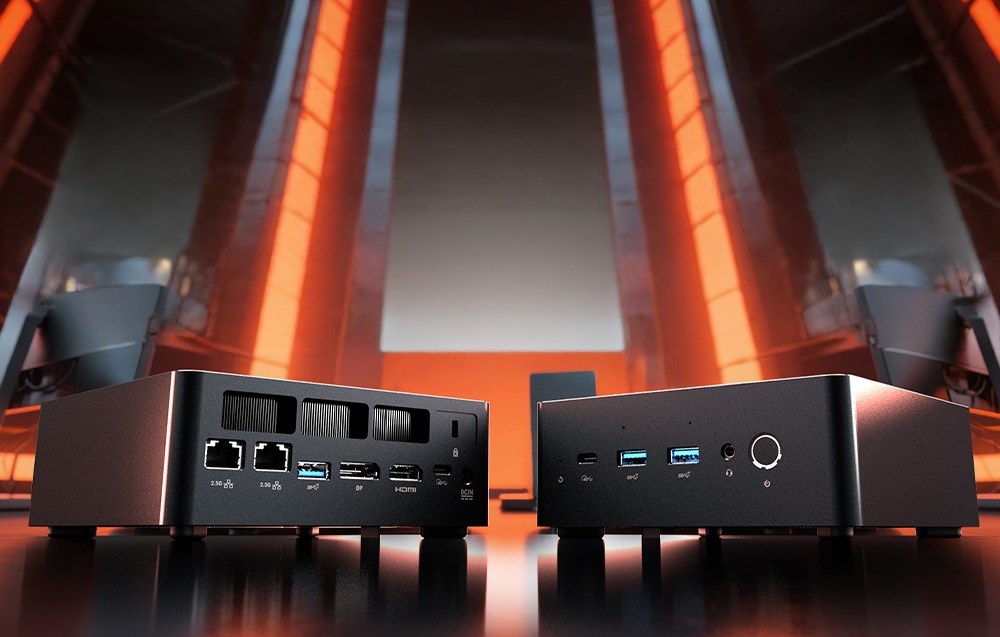

The computer offers modern solutions that ensure fast and stable data transmission. Wi-Fi 7 wireless connectivity provides access to the 2.4 GHz, 5 GHz, and 6 GHz bands, resulting in lower latency and higher connection bandwidth. Users also have access to a Bluetooth 5.4 module and two RJ-45 ports supporting the 2.5G Ethernet standard, making the device suitable for both home and business environments.
The Barebone version is designed for users who want to configure the computer themselves according to their own needs. The device supports two DDR5 memory modules running at 5600 MHz with a total capacity of up to 96 GB, as well as two SSDs using the M.2 NVMe PCIe 4.0 interface. This allows you to build a system tailored to both everyday tasks and professional applications.

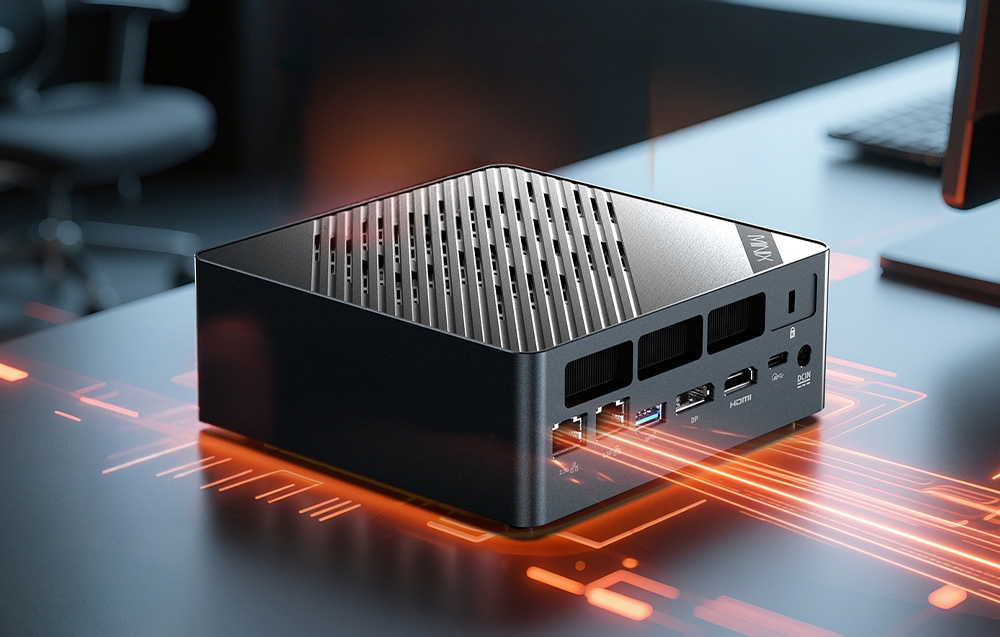

Despite its small size, the computer offers a wide range of ports, allowing you to connect multiple devices simultaneously. Users have access to three USB-A 3.2 Gen 2 ports, two USB-C 4.0 ports, an HDMI 2.1 port, a DisplayPort 2.0, and a 3.5 mm audio jack. The package also includes a VESA mount, an HDMI cable, and a 19 V power supply (6.32 A / approx. 120 W), allowing for convenient installation of the device and better use of available workspace.
The Minix Ryzen HX 370 Barebone is designed for installation of Windows 11 Pro and supports its multilingual versions. It’s worth noting that this is a barebone model, so users must install RAM and an SSD themselves and then install their chosen operating system. This approach offers greater flexibility and allows you to tailor the hardware configuration to your individual needs.
Minix Ryzen HX 370 Barebone Mini PC - Specifications
General
- Brand
- MiniX
- Model
- ER937-AI (Minix Ryzen HX 370)
- Form Factor
- Mini PC / Barebone Desktop
- Supported Operating System
- Windows 11 Pro / Windows 11 Home / Linux (OS not pre-installed)
Processor & AI
- Processor
- AMD Ryzen AI 9 HX 370 (Ryzen AI 300 Series)
- Graphics
- AMD Radeon 890M Integrated Graphics
- NPU Performance
- Up to 50 TOPS
- Total AI Compute
- Up to 80 TOPS
- Maximum TDP
- 65 W
Memory & Storage Support
- Memory Slots
- 2 × DDR5 SO-DIMM
- Memory Speed Supported
- 5600 MHz
- Maximum RAM Supported
- Up to 96 GB (RAM not included)
- Storage Slots
- 2 × M.2 2280 NVMe PCIe 4.0 SSD slots (Storage not included)
Video & Display Support
- Maximum Resolution
- 8K @ 60 Hz
- Display Outputs
- 1 × HDMI 2.1, 1 × DisplayPort 2.0, 2 × USB-C (USB4 / DP-Alt)
- Multi-Display Support
- Up to 4 Displays
Networking & Communications
- Wireless LAN
- Wi-Fi 7 (2.4 GHz, 5 GHz, 6 GHz Tri-band)
- Bluetooth
- Bluetooth 5.4
- Ethernet
- 2 × RJ-45 2.5Gbps Gigabit Ethernet
I/O Interfaces
- USB Ports
- 3 × USB-A 3.2 Gen 2, 2 × USB-C 4.0
- Video Ports
- 1 × HDMI 2.1, 1 × DisplayPort 2.0
- Network Ports
- 2 × RJ-45 2.5G LAN
- Audio
- 1 × 3.5 mm Audio Combo Jack
Power & Physical Specifications
- Dimensions
- 140.4 × 139.2 × 55.5 mm
- Power Supply
- 19V / 6.32A (approx. 120W)
- Mounting Support
- VESA Mount Compatible
Package Contents
- Included Items
- 1 × Minix ER937-AI Barebone Mini PC, 1 × VESA Mount & Screws, 1 × HDMI Cable, 1 × 19V / 6.32A Power Adapter, 1 × User Manual
