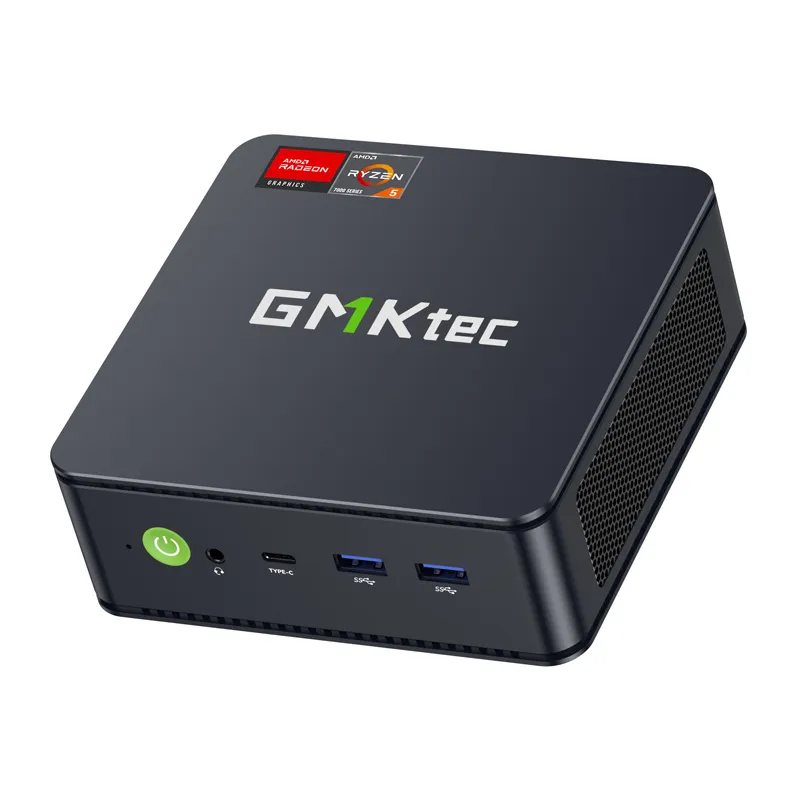

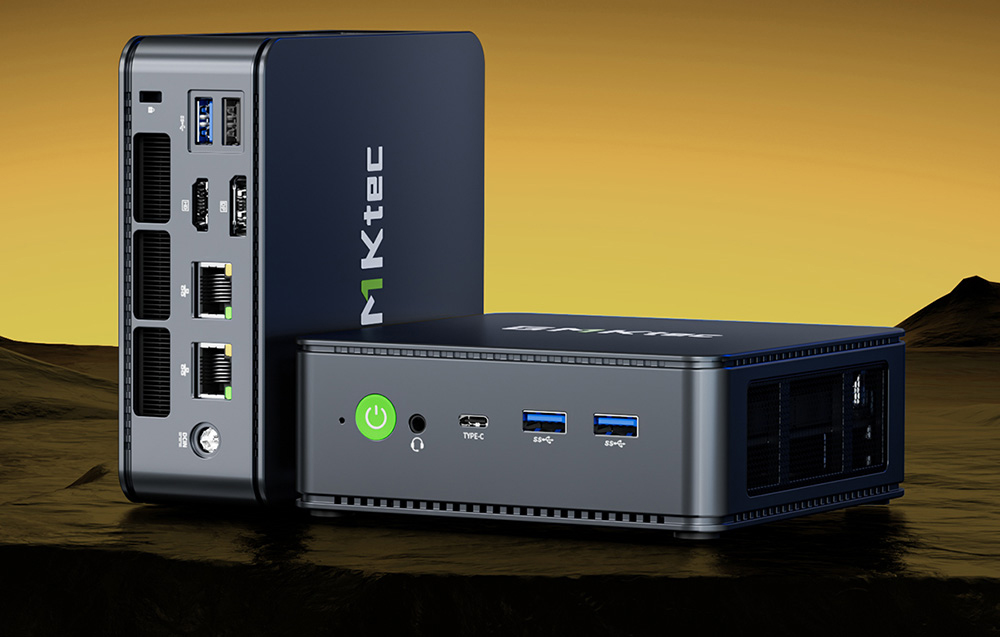

MINI PC GMKtec M6 Ultra AMD Ryzen 5 7640HS 32GB RAM + 1TB SSD WIN 11 Pro
SKU: INN-M6U-1
Brand: GMKtec
Supercharge your workspace with the GMKtec M6 Ultra Mini PC, a ultra-compact workstation engineered for peak performance and relentless multitasking. Powered by the high-efficiency AMD Ryzen 5 7640HS processor built on a cutting-edge 4nm TSMC FinFET architecture, this compact powerhouse handles intensive office workflows, content creation, and data analysis with ease. Featuring 32GB of blazing-fast DDR5 RAM and a generous 1TB M.2 SSD, the M6 Ultra offers immediate responsiveness and smooth operation right out of the box.
Key Features
- High-Performance Processing: Equipped with the AMD Ryzen 5 7640HS (6 cores, 12 threads, up to 5.0 GHz boost) and 16MB L3 cache for seamless computing power.

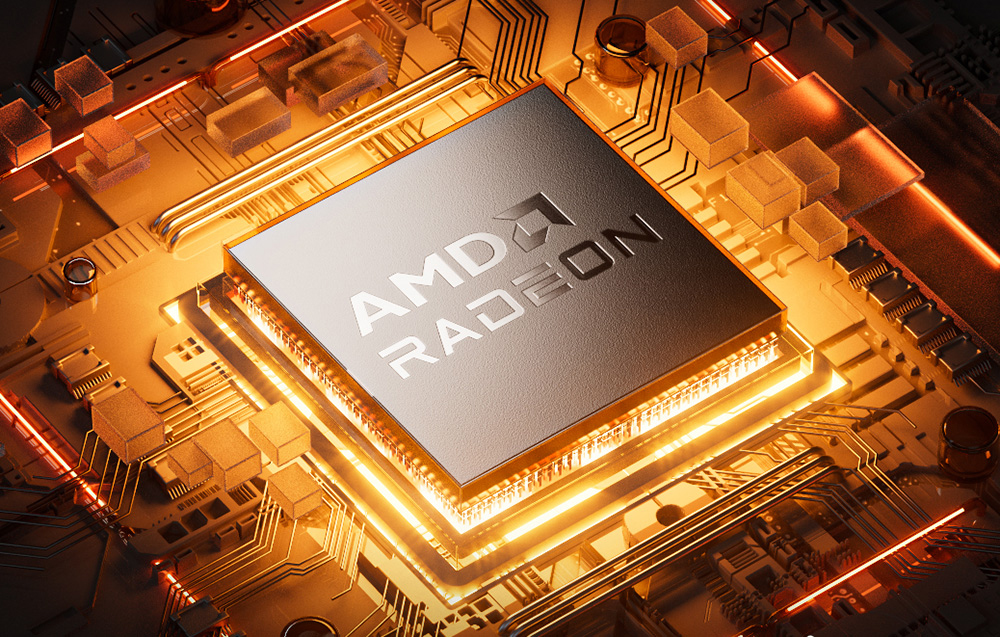

- RDNA3 Next-Gen Graphics: Integrated AMD Radeon 760M graphics delivers fluid Full HD visuals, supporting dynamic gaming up to 130 FPS and robust creative workloads.

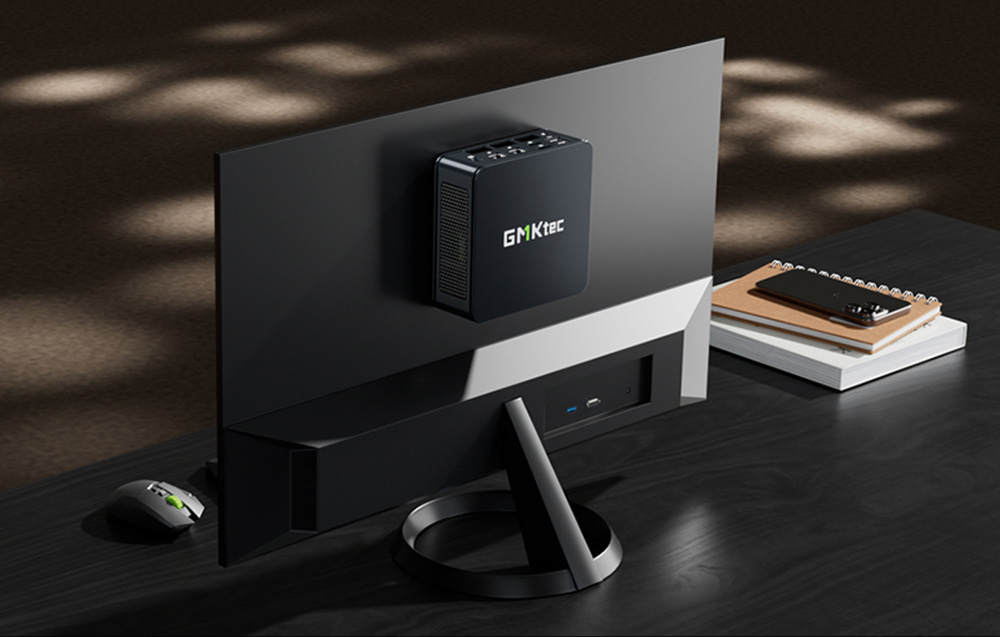

- Triple 4K/8K Display Station: Multi-monitor productivity made simple with HDMI 2.0, DisplayPort (up to 8K@60Hz), and a full-function USB4.0 port.
- 40Gbps USB4.0 Port: Unlocks ultra-fast data transfers, eGPU support, Power Delivery (100W input / 15W output), and high-resolution video output.

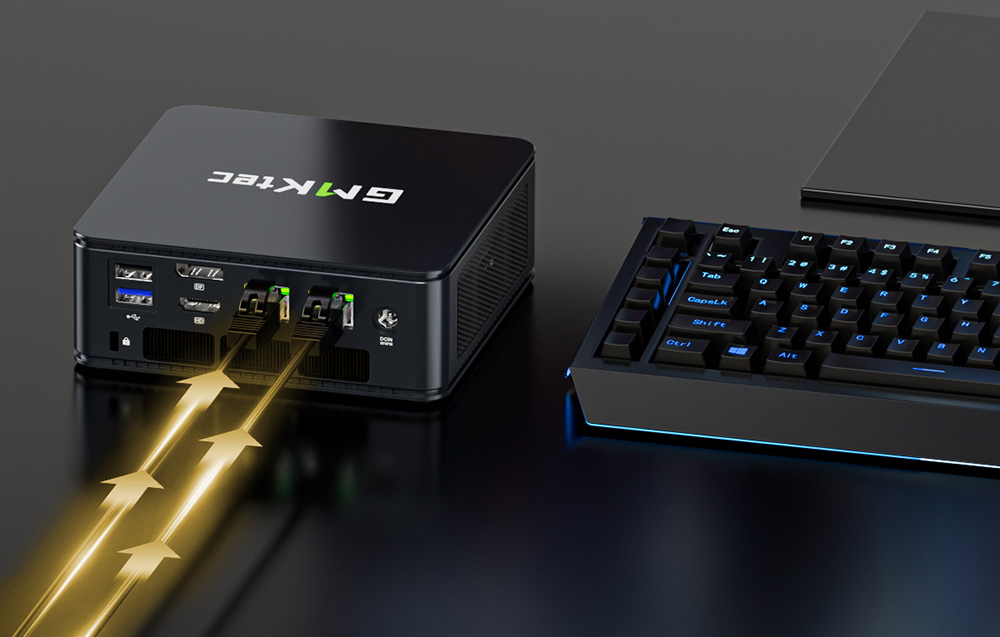

- Dual 2.5G LAN & Wi-Fi 6E: Ultra-fast and reliable networking provided by dual Intel 2.5 Gbps Ethernet ports and low-latency Wi-Fi 6E wireless connectivity.

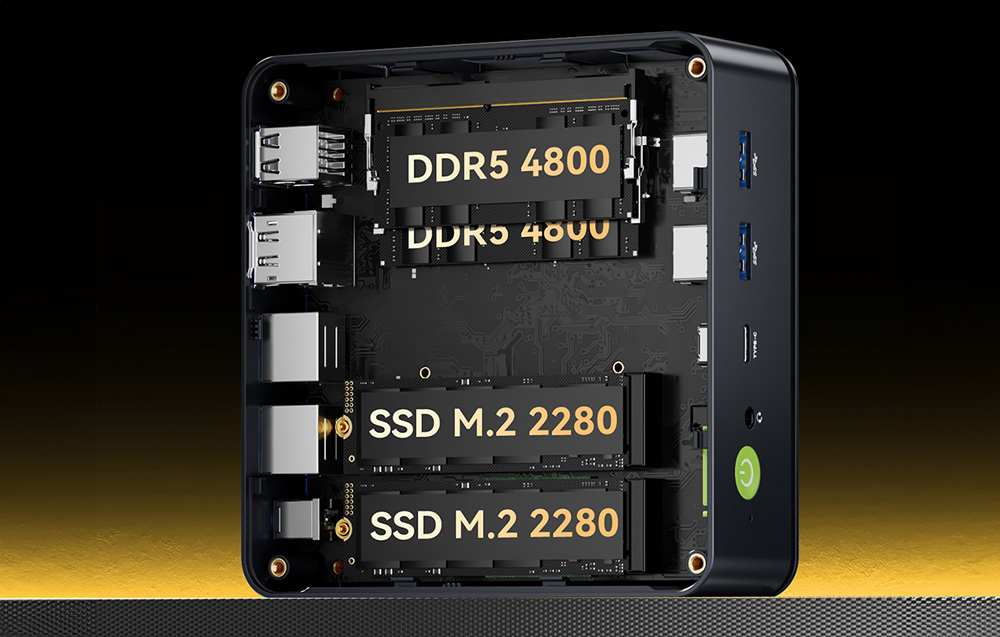

- Expandable Architecture: Dual DDR5 SO-DIMM slots supporting up to 128GB RAM and dual M.2 PCIe slots expandable up to 16TB total storage.
- Advanced Dual Turbine Cooling: Efficient 360° Airflow VC cooling keeps system thermals optimal under load while maintaining super-quiet operation (≤38 dB).

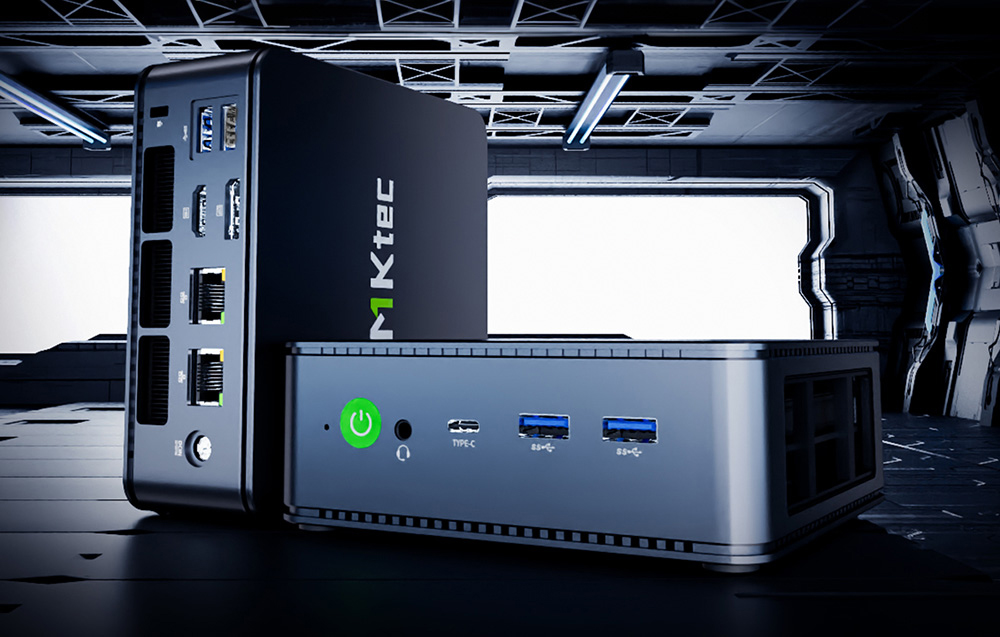

- Customized Performance Modes: Effortlessly switch between Silent (35W), Balanced (45W), and Performance (50W) modes based on your workload.
General
- Brand
- GMKtec
- Model
- M6 Ultra
- Operating System
- Windows 11 Pro (Supports Linux)
- Housing Material
- Plastic
- VESA Mounting
- Supported (Bracket Included)
Processor
- CPU
- AMD Ryzen 5 7640HS
- Cores / Threads
- 6 Cores / 12 Threads
- Base Clock
- 4.3 GHz
- Boost Clock
- Up to 5.0 GHz
- L3 Cache
- 16 MB
- Process Technology
- TSMC 4nm FinFET
- TDP
- 35W - 50W Max
Graphics
- Graphics Type
- Integrated AMD Radeon 760M
- Architecture
- RDNA3
- GPU Cores
- 8 Cores
- GPU Frequency
- Up to 2600 MHz
- Multi-Display Support
- Up to 3 Monitors simultaneously
Memory & Storage
- RAM Installed
- 32 GB DDR5 4800 MT/s
- RAM Expansion
- 2x SO-DIMM slots (Up to 128 GB max)
- Storage Installed
- 1 TB M.2 2280 PCIe SSD
- Storage Expansion
- 2x M.2 2280 slots (Up to 8 TB per slot, 16 TB total)
Connectivity & Ports
- Wireless
- Wi-Fi 6E (2.4GHz / 5GHz / 6GHz)
- Bluetooth
- Bluetooth 5.2
- Ethernet
- 2x 2.5G RJ45 (Intel i226V, 2500 Mbps)
- USB Ports
- 1x USB4.0 (Full Function, 40Gbps, PD), 3x USB 3.2, 1x USB 2.0
- Video Outputs
- 1x HDMI 2.0 (4K@60Hz), 1x DisplayPort (8K@60Hz), 1x USB4.0 (DisplayPort)
- Audio
- 1x 3.5mm Headphone/Microphone Jack (CTIA)
Power & Thermal
- Power Supply
- 19V / 6.32A (120W Power Adapter)
- Power Modes
- Silent (35W), Balanced (45W), Performance (50W)
- Cooling System
- Dual Copper Turbines + Dual Fans (360° Airflow)
- Noise Level
- ≤38 dB
Dimensions & Weight
- Dimensions
- 128.8 x 127 x 47.8 mm
- Weight
- 502 g
Package Contents
- Included Items
- GMKtec M6 Ultra Mini PC, Power Adapter & Cable, HDMI Cable, VESA Mount with Screws, User Manual
