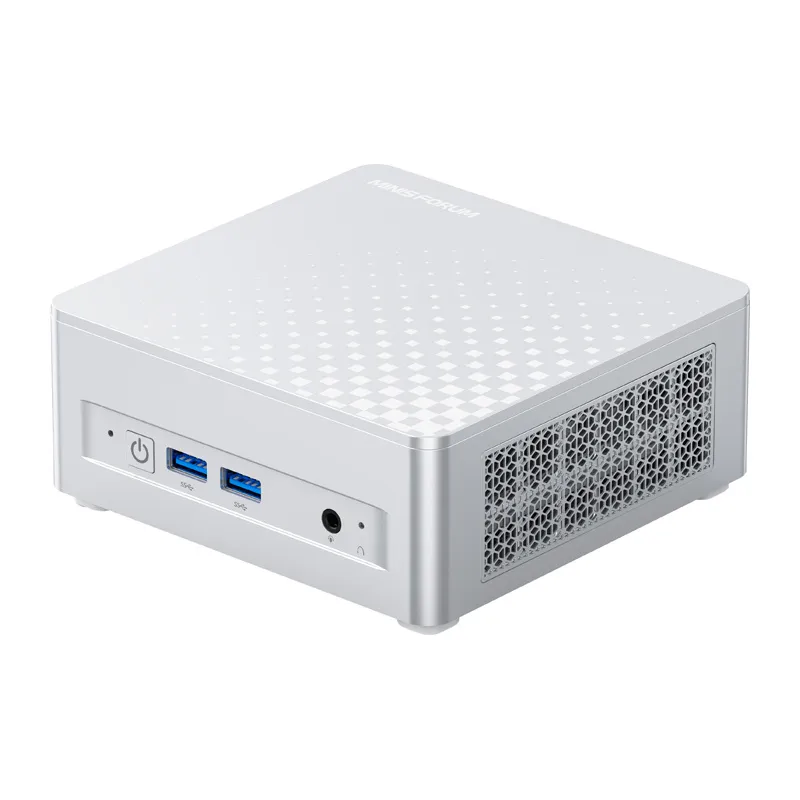

MINIS FORUM M1 Plus i5-12600H 16GB + 512GB Mini PC
SKU: INN-M1Plus-512
Brand: Minis Forum
Experience desktop-grade power in an ultra-compact footprint with the MINIS FORUM M1 Plus Mini PC. Engineered for demanding office workloads, multi-monitor productivity, and modern multitasking, this mini computer packs a high-performance 12th Gen Intel® Core™ i5-12600H processor and blazing-fast DDR5 memory into a space-saving design. Whether you are running complex spreadsheets, creative applications, or managing data servers, the M1 Plus delivers smooth, uninterrupted performance.
Key Features
- 12th Gen Intel® Core™ i5 Performance: Powered by an Intel® Core™ i5-12600H processor with 12 cores, 16 threads, and boost speeds up to 4.50 GHz for effortless multitasking.
- Next-Gen DDR5 Memory & PCIe 4.0 Storage: Equipped with 16GB DDR5 RAM (expandable up to 96GB) and a 512GB M.2 NVMe PCIe 4.0 SSD for lightning-fast system boot times and file transfers.
- Triple 4K Display Output: Connect up to three independent 4K monitors simultaneously using HDMI 2.1, DisplayPort 1.4, and full-featured USB4 ports.

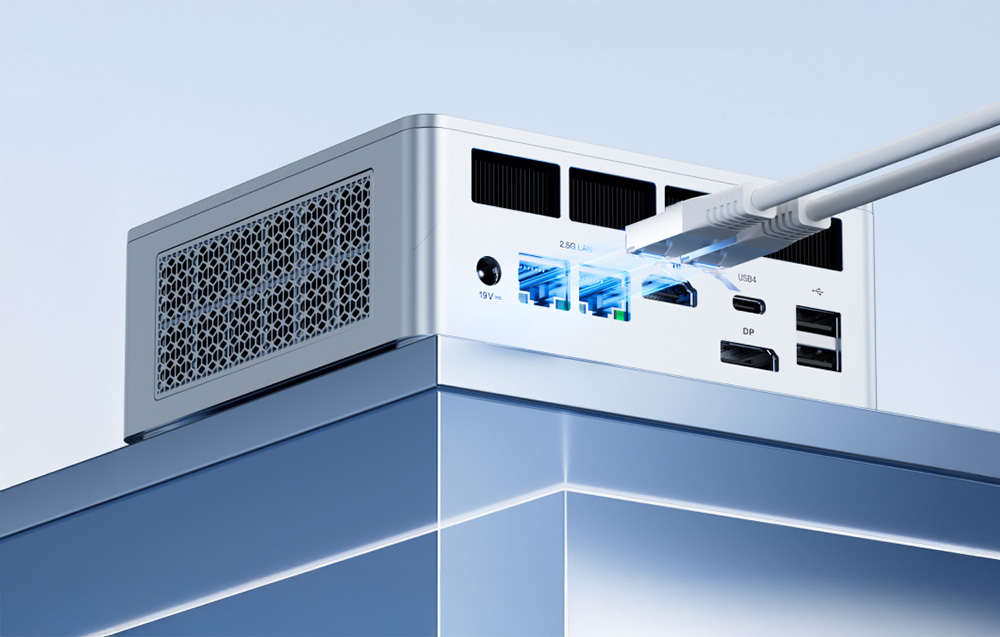

- High-Speed Dual 2.5GbE Network Ports: Dual 2.5 Gigabit Ethernet ports offer unmatched wired networking stability and speed—ideal for home labs, NAS integration, and network redundancy.
- Full-Speed USB4 Connectivity: Features a 40 Gbps USB4 Type-C port supporting Alt DisplayPort output as well as Power Delivery (PD input 65-100W / output 15W).

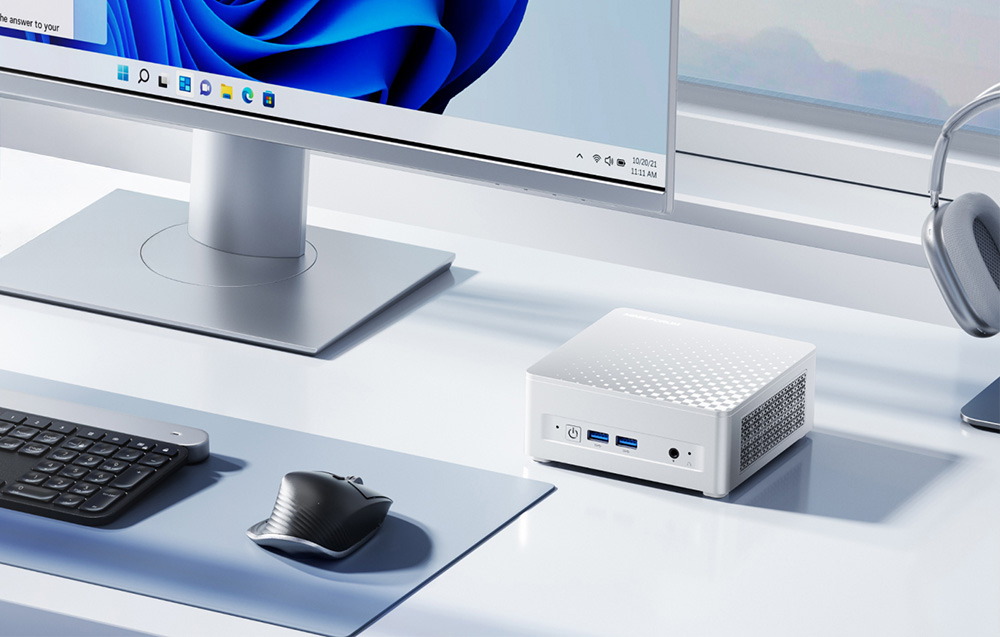

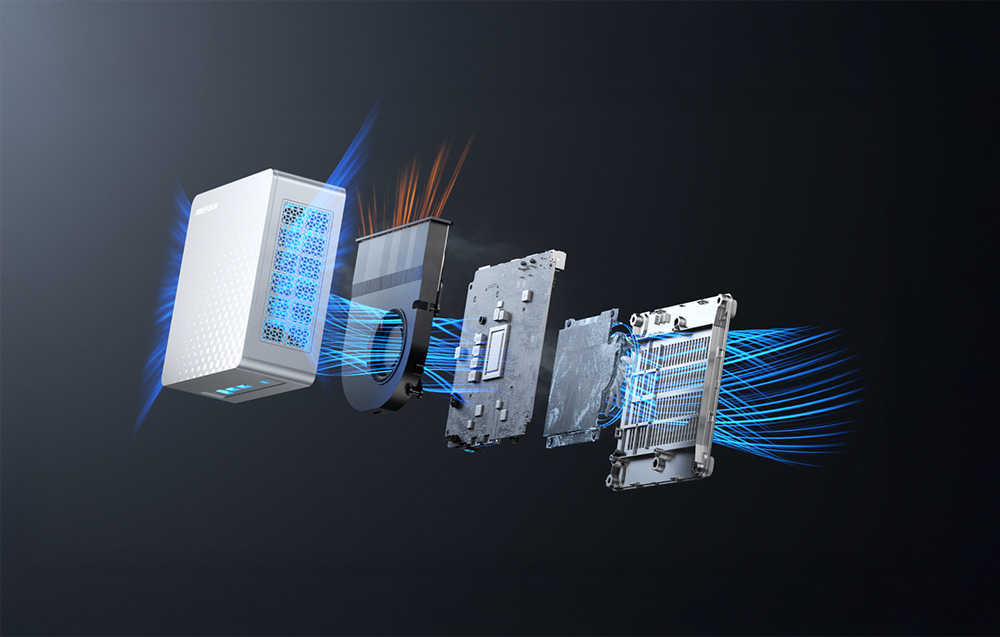

- Quiet & Efficient Active Cooling: Custom cooling design effectively dissipates heat from the CPU, RAM, and SSD while maintaining whisper-quiet operation below 45 dB.

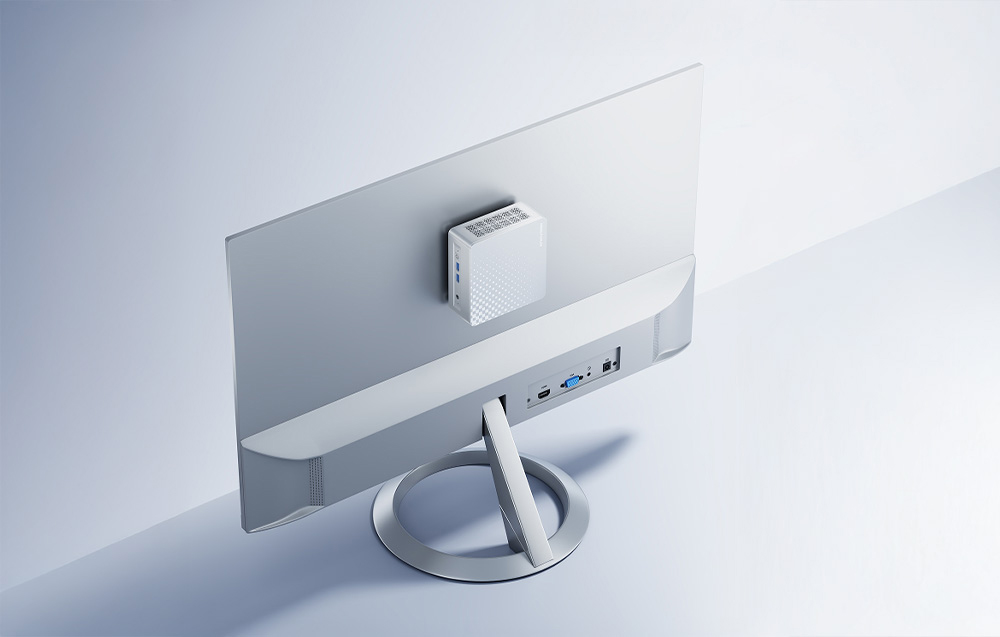

- Compact & VESA Mountable: Modern desk-friendly design includes a VESA mounting bracket to attach the Mini PC seamlessly behind any compatible monitor.
General
- Brand
- Minis Forum
- Model
- M1 Plus i5-12600H
- Form Factor
- Mini PC
- Operating System
- None (FreeDOS / OS Not Included)
- VESA Mounting Support
- Yes (Bracket and screws included)
Processor
- CPU
- Intel® Core™ i5-12600H
- Core Count
- 12 Cores
- Thread Count
- 16 Threads
- Max Turbo Speed
- Up to 4.50 GHz
- TDP
- 65 W
Memory & Storage
- Installed RAM
- 16 GB
- Memory Type
- DDR5 Dual Channel SO-DIMM
- Default RAM Frequency
- 4800 MHz
- Max Supported RAM Frequency
- 5200 MHz
- Maximum Supported RAM
- Up to 96 GB
- Storage Installed
- 512 GB
- Storage Interface
- M.2 2280 NVMe SSD (PCIe 4.0 x4)
Graphics & Video Output
- Graphics Card
- Intel® Iris® Xe Graphics
- Multi-Display Support
- Up to 3 Displays
- HDMI Output
- 1x HDMI 2.1 TMDS (Up to 4K@60Hz)
- DisplayPort Output
- 1x DisplayPort 1.4 (Up to 8K@60Hz / 4K@144Hz)
- USB4 Display Output
- 1x USB4 Alt DP (Up to 8K@60Hz / 4K@144Hz)
Connectivity & Networking
- Wired Network
- 2x 2.5GbE RJ45 LAN Ports
- Wireless LAN
- Wi-Fi 6E
- Bluetooth
- Bluetooth 5.2
Ports & Expansions
- USB4
- 1x USB Type-C (40 Gb/s, Alt DP, PD input 65-100W, PD output 15W)
- USB Type-A
- 2x USB 3.2 Gen 2, 2x USB 2.0
- Audio
- 1x 3.5 mm Audio Combo Jack
- Power Input
- 1x DC 19V Jack
Power & Cooling
- Power Supply
- 19V / 6.32A (120W External Power Adapter)
- Cooling System
- Active Fan Cooling (CPU, RAM, and SSD)
- Noise Level
- ≤ 45 dB under typical load
Package Contents
- Included Items
- Minis Forum M1 Plus Mini PC, AC Power Adapter, Power Cord, HDMI Cable, VESA Mounting Bracket, Mounting Screws, User Manual
