Mini PC GMKtec EVO-X1- AMD Ryzen AI 9 HX 370 - 32GB RAM + 1TB SSD WIN 11 Pro
Unlock unprecedented desktop-class computing in an ultra-compact footprint with the GMKtec EVO-X1 Mini PC. Powered by the groundbreaking AMD Ryzen AI 9 HX 370 processor featuring Zen 5 architecture and an integrated 50 TOPS XDNA 2 NPU, this mini workstation is built for next-generation local AI processing, high-end content creation, dynamic multitasking, and modern 3D gaming. Pre-installed with Windows 11 Pro, the EVO-X1 delivers maximum performance without compromise.
Equipped with cutting-edge AMD Radeon 890M integrated graphics (RDNA 3.5), ultra-fast quad-channel LPDDR5X RAM running at 7,500 MT/s, and a high-speed 1TB PCIe 4.0 NVMe SSD, the EVO-X1 handles intensive workflow bottlenecks with ease. Connectivity is fully future-proofed with OCuLink 64 Gbps external GPU support, dual 2.5G Intel Ethernet ports, Wi-Fi 6, USB 4.0, and support for up to three independent 8K displays.
Key Features

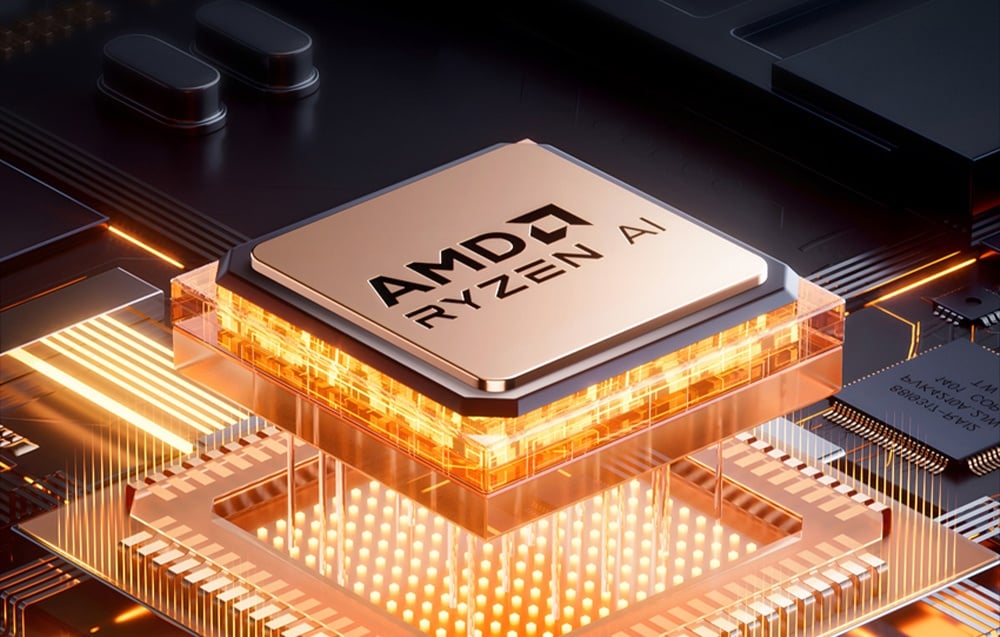

- Cutting-Edge AMD Ryzen AI Processor: 12 cores, 24 threads, up to 5.1 GHz boost clock, and a dedicated 50 TOPS XDNA 2 NPU for accelerated AI workloads.
- Advanced Radeon 890M Graphics: Powered by RDNA 3.5 architecture with 16 compute units, driving crisp visuals, smooth 8K video editing, and modern triple-A gaming.

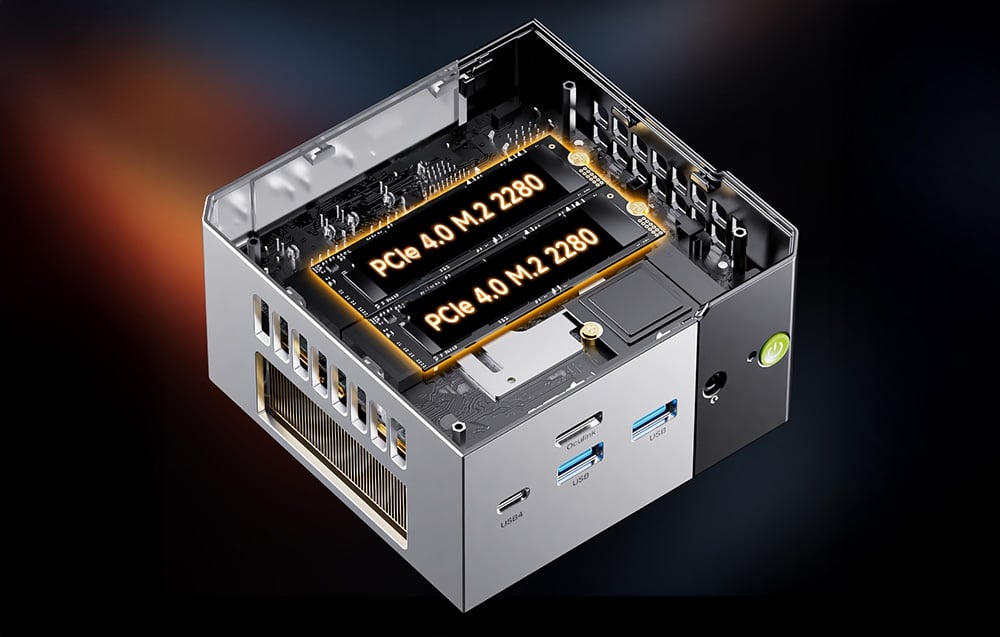

- Blazing-Fast Memory & Storage: 32GB Quad-Channel LPDDR5X RAM @ 7500 MT/s combined with a fast 1TB M.2 PCIe 4.0 NVMe SSD (plus an extra expansion slot).

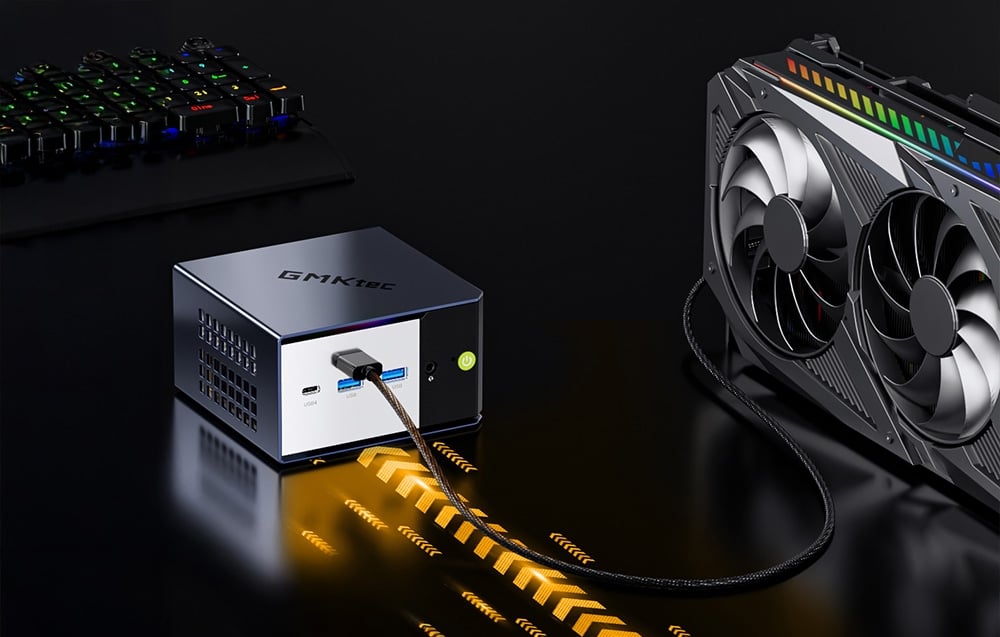

- OCuLink eGPU Ready: Dedicated high-speed OCuLink interface (64 Gbps) allows seamless connection to high-performance external graphics cards.

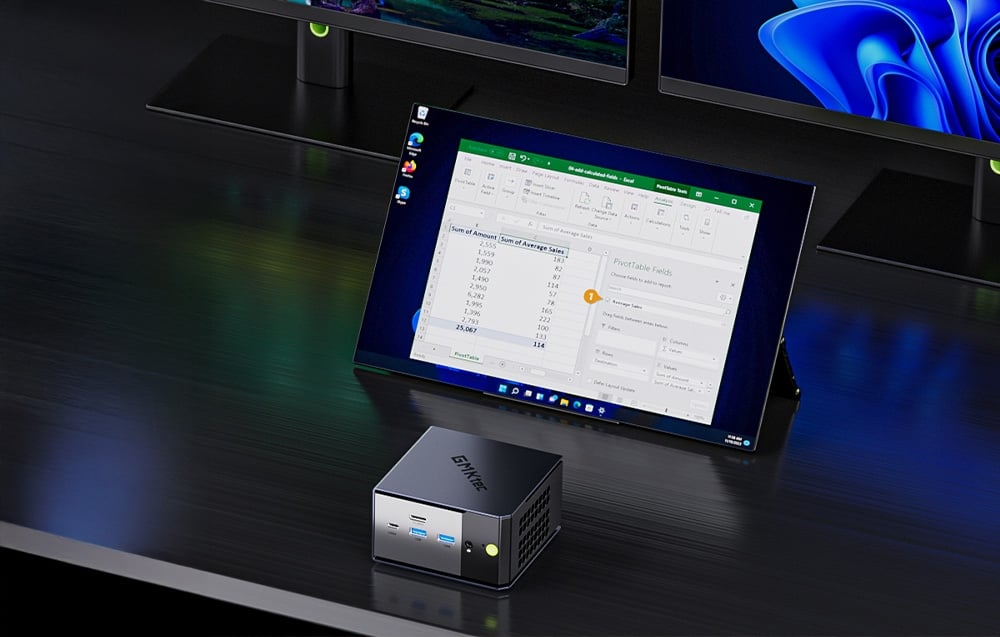

- Triple 8K Display Output: Connect up to 3 monitors simultaneously via HDMI 2.1, DisplayPort 2.1, and full-featured USB 4.0 ports.
- Enterprise Networking & Silent Cooling: Dual 2.5 GbE Intel LAN ports, Wi-Fi 6, Bluetooth 5.2, and an advanced dual-fan thermal design for whisper-quiet high-load operation.
General
- Brand
- GMKtec
- Model
- EVO-X1
- Operating System
- Windows 11 Pro
- Color
- Black
- Included Accessories
- Mini PC EVO-X1, Power Adapter, Power Cable, HDMI Cable, Vertical Stand, User Manual
Processor
- Model
- AMD Ryzen AI 9 HX 370
- Architecture
- Zen 5
- Cores / Threads
- 12 Cores / 24 Threads
- Max Clock Speed
- Up to 5.1 GHz
- Cache
- 36 MB L3 Cache
- TDP
- 65 W
- NPU Performance
- AMD XDNA 2 (Up to 50 TOPS)
Graphics
- Graphics Type
- Integrated AMD Radeon 890M
- Architecture
- RDNA 3.5
- Compute Units
- 16 CUs
- GPU Boost Frequency
- Up to 2900 MHz
Memory & Storage
- RAM Capacity
- 32GB
- RAM Type
- Quad-channel LPDDR5X @ 7500 MT/s
- Storage Capacity
- 1TB
- Storage Interface
- M.2 2280 NVMe PCIe 4.0 SSD
- Storage Expansion
- 2x M.2 2280 PCIe 4.0 Slots (Compatible with PCIe 3.0/4.0)
Connectivity & Networking
- Ethernet
- Dual 2.5 GbE Intel i226-V RJ45 Ports
- Wireless
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.2
- OS Compatibility
- Windows 11 Pro, Linux, Ubuntu, ESXi, VMware
Ports & Interfaces
- Video Output
- 1x HDMI 2.1, 1x DisplayPort 2.1, 1x USB 4.0 (Supports 3x Independent Displays)
- USB Ports
- 4x USB 3.2 Gen 2 Type-A, 1x USB 4.0 Type-C
- eGPU Interface
- 1x OCuLink Port (PCIe 4.0 x4, up to 64 Gbps)
- Audio
- 1x 3.5mm CTIA Audio Jack
