METROX 3D Standard Edition SCANNER REVOPOINT

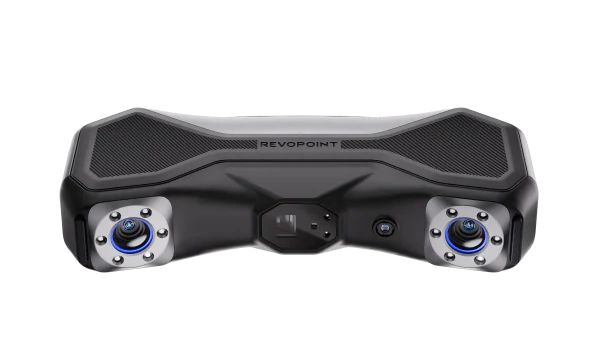

The Revopoint MetroX Standard Edition marks Revopoint’s entry into industrial metrology, featuring a high-performance hybrid light system. It combines 14 blue laser cross lines, 7 parallel blue laser lines, and 62-line full-field structured light. This combination allows the scanner to achieve a professional accuracy of 0.03 mm and a precision of up to 0.01 mm. Designed for small to medium-sized objects (10 mm to 1000 mm), it is an ideal tool for reverse engineering, quality control, and rapid prototyping where sub-millimeter detail is critical.

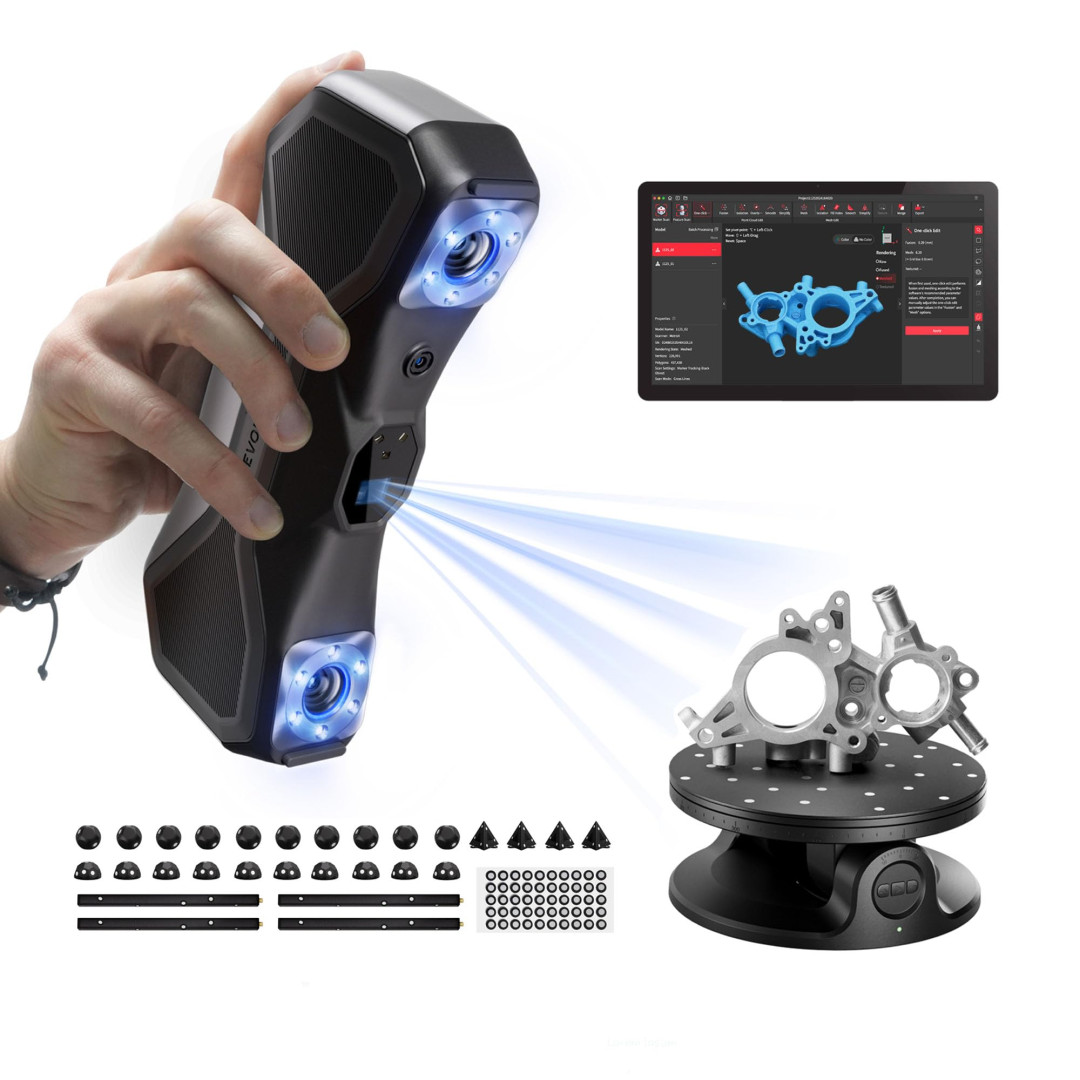

The MetroX is highly versatile, offering four distinct modes to handle different surface types. The Cross Lines mode is optimized for quickly capturing flat, featureless surfaces on shiny or black objects without scanning spray. The Parallel Lines mode is designed to pick up fine details and sharp edges on complex geometries. For high-speed data acquisition, the Full-Field Structured Light mode can capture up to 7 million points per second, while the Auto Turntable mode provides a fully automated workflow for 360° digitization with vibrant color support.
The Standard Edition includes the essential hardware for a complete desktop and handheld scanning setup, featuring a Dual-axis Turntable that can tilt and rotate simultaneously to eliminate blind spots. Weighing 508 g, the scanner is portable but requires a powerful PC to handle its high data throughput, specifically recommending an NVIDIA RTX 30/40 series GPU for real-time processing at up to 60 FPS. The system uses the dedicated Revo Metro software, which streamlines everything from point-cloud fusion to exporting watertight models in STL, OBJ, or PLY formats.
General
- Brand
- REVOPOINT
- Model
- METROX 3D Standard Edition
- Category
- 3D Scanners
- Target Applications
- Reverse Engineering, Inspection, Industrial Design, 3D Printing, Metrology
Scanning Performance
- Technology
- Hybrid Blue Laser + Structured Light
- Light Source
- Blue Laser (Class 1 Eye Safe) + Structured Blue Light
- Single-Frame Precision
- Up to 0.02 mm
- Volumetric Accuracy
- 0.025 mm + 0.05 mm/m
- Point Distance / Resolution
- Up to 0.05 mm
- Working Distance
- 200 – 400 mm
- Scanning Speed (Structured Light)
- Up to 7,000,000 points/sec
- Scanning Speed (Laser Mode)
- Up to 800,000 points/sec
Scanning Modes & Volume
- Scanning Modes
- Crossed Blue Laser (14 lines), Parallel Blue Laser (7 lines), Full-field Structured Light (62 lines), Dual-axis Turntable Mode
- Close Scan Volume
- 160 × 70 mm @ 200 mm
- Far Scan Volume
- 320 × 215 mm @ 400 mm
- Surface Adaptability
- Dark, shiny, and textureless surfaces
- Tracking Method
- Feature tracking, Marker tracking
Optics & Imaging
- Depth Cameras
- Dual 5 MP
- RGB Camera
- 2 MP
Software & Export
- Software
- Revo Scan 5 MetroX
- Supported Export Formats
- PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
- OS Compatibility
- Windows 10 / 11 (64-bit), macOS, Linux
System Requirements
- Recommended CPU
- Intel Core i5 or higher
- Recommended RAM
- 16 GB or higher
- Graphics Card
- Discrete GPU recommended for Laser Mode
Connectivity & Interface
- Connection Interface
- USB 3.0 Type-A to Type-C
Package Contents
- In the Box

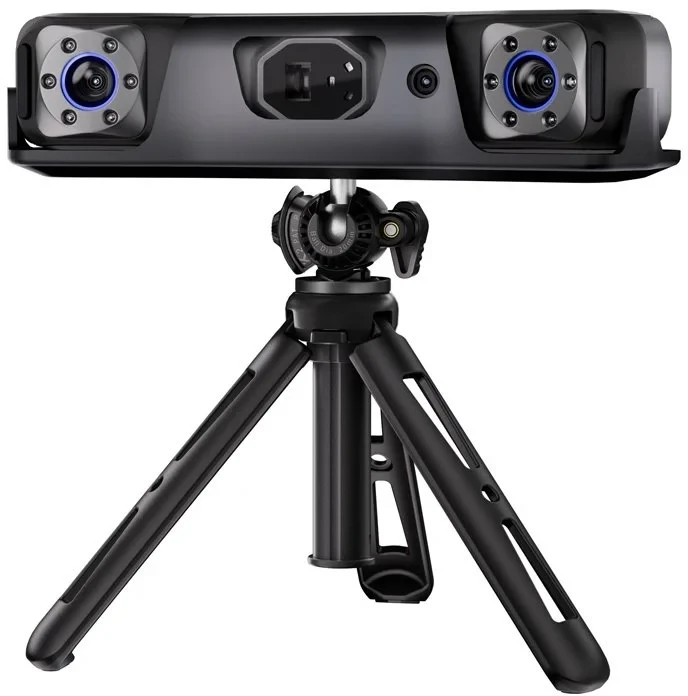

- Revopoint MetroX 3D Scanner, 500+ Marker Dots (6mm), Calibration Board, Dual-axis Turntable, Tripod & Scanner Cradle, USB Cable + Adapter + Power Supply, Premium Hard Carrying Case, Sample Bust Test Object, Quick Start Guide, Certificate & Warranty Card
