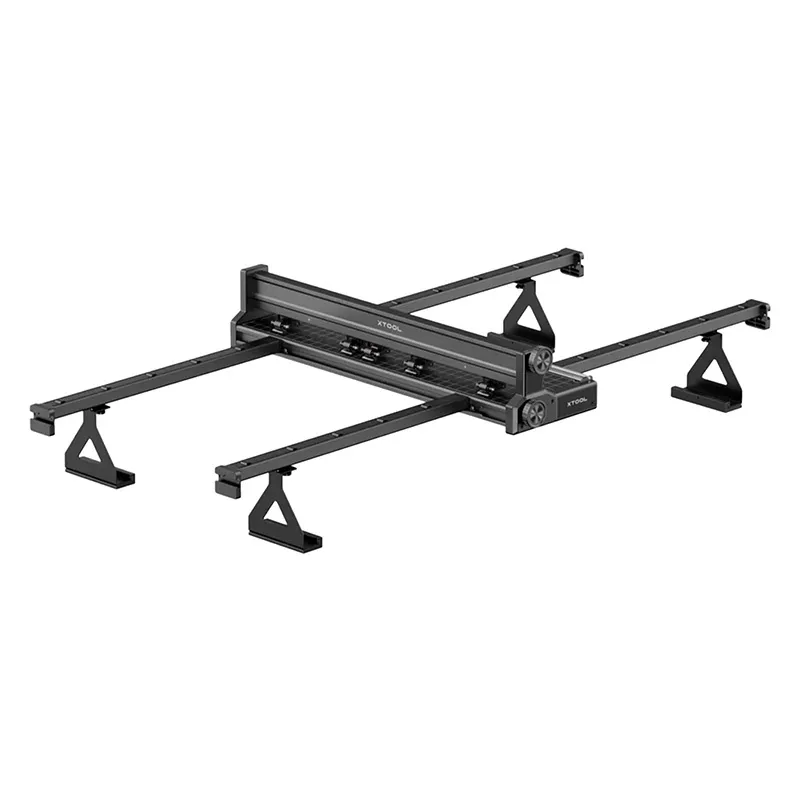

Belt feeder for xTool P2/P2S - Description
The belt feeder for the xTool P2 and P2S significantly increases the machine's working area - up to 3000 mm × 500 mm. This allows you to engrave long materials without having to split them and process more parts at one time. This is a solution for those who want to work faster, more accurately and more efficiently.

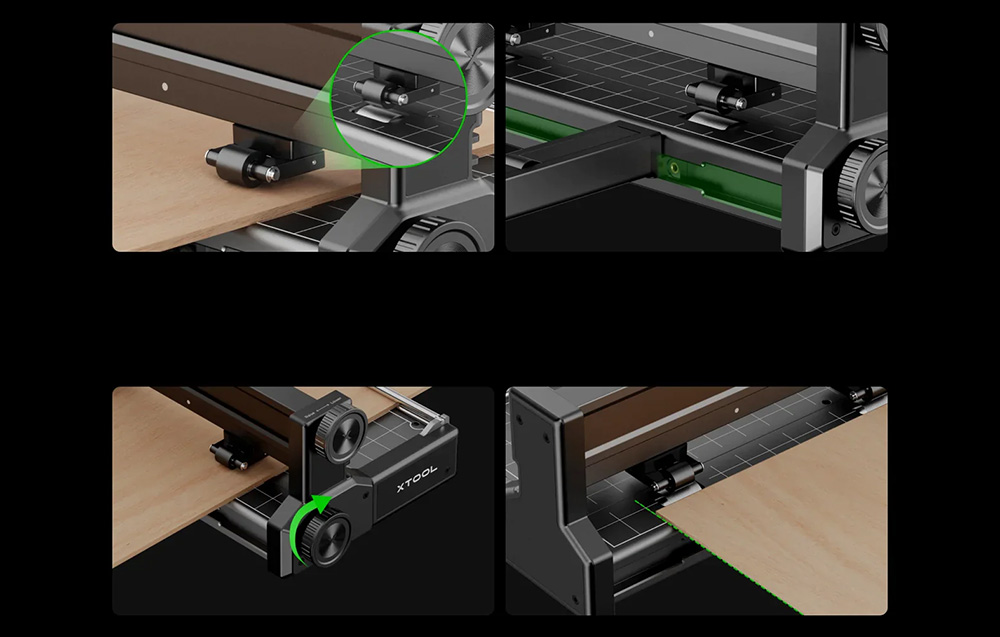

The machine automatically plans the engraving path and moves the material without the need for manual feeding. This not only saves time, but also increases precision - forget about positioning errors.
With this feeder, you expand the range of materials that can be processed. In addition to classic plywood, acrylic or MDF (Medium Density Fibreboard), you can also work with soft materials such as cork, felt or EVA foam (Ethylene Vinyl Acetate, foam made from a copolymer of ethylene and vinyl acetate). Regardless of texture or thickness - the feeder ensures stable and smooth movement of the material.

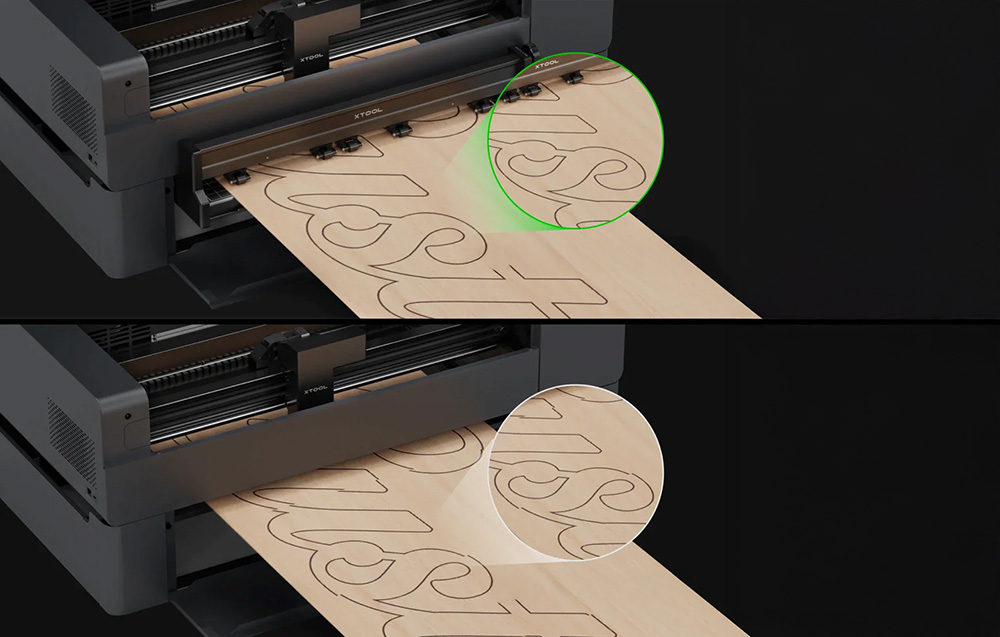

The upper and lower pressure rollers are made of non-slip materials. This ensures that both thin and thicker plates are held securely, without the risk of shifting during operation.

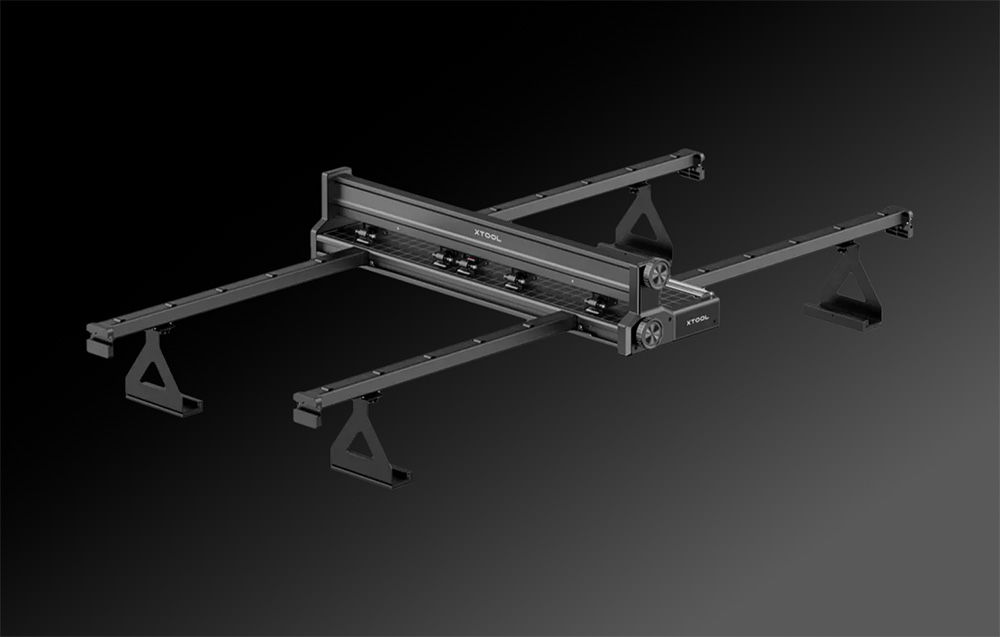

Mounting the feeder rails is easy thanks to a snap-in system, and color-coded pressure markings help you quickly select the right pressure for a particular material. In addition, the bottom knob allows you to conveniently adjust the position of the material, and the alignment grid helps evenly align the selected material with respect to the feed direction.
Belt feeder for xTool P2/P2S - Specifications
General
- Brand
- xTool
- Model
- P5010199
- SKU
- INN-P5010199
- Product Type
- Automated Belt Feeder
- Compatibility
- xTool P2, xTool P2S Laser Engraver / Cutters
Processing & Capacity
- Maximum Machining Area
- 3000 mm × 500 mm
- Maximum Material Width
- 624 mm
- Minimum Material Width
- 65 mm
- Maximum Material Thickness
- 14 mm
- Maximum Material Length
- 1 m (including 30 cm overhang)
- Processing Length
- 0.85 m (including 30 cm overhang)
- Maximum Feeding Speed
- 160 mm/s
Physical Attributes
- Product Dimensions
- 687 × 200 × 135 mm
- Product Weight
- 4.55 kg
- Mounting Mechanism
- Quick Snap-in Rail System
- Roller Construction
- Non-slip grip rollers
Usability Features
- Pressure Adjustment
- Color-coded pressure indicator system
- Alignment Guide
- Built-in measurement grid and position fine-tuning knob
- Supported Materials
- Plywood, Acrylic, MDF, Cork, Felt, EVA Foam, Leather
