2-in-1 xTool F1 laser engraving machine - deluxe kit - Description

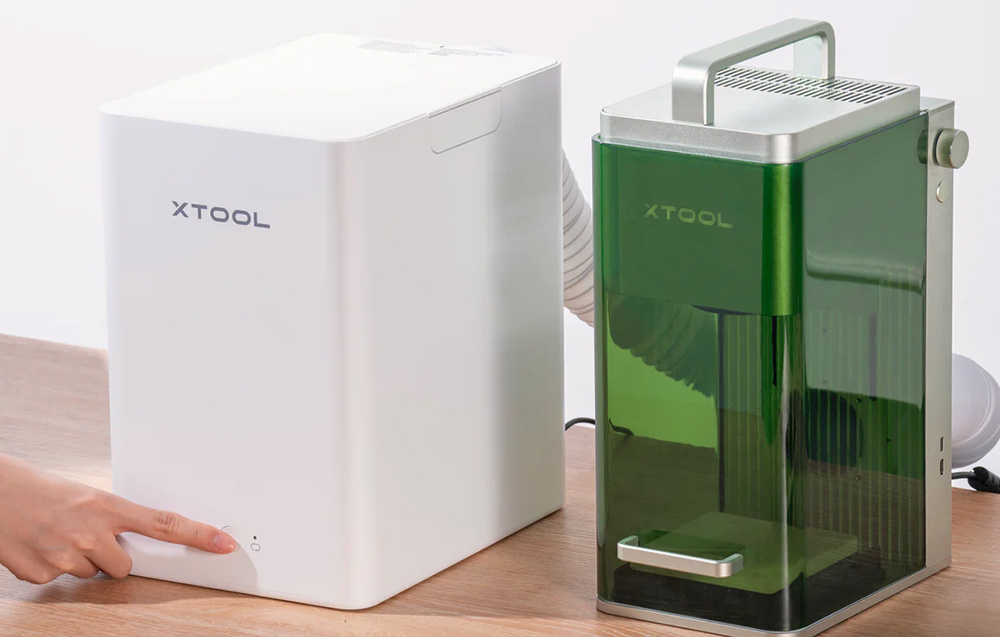

Introducing a comprehensive engraving kit that combines four advanced devices: the xTool F1-Mint Green, the RA2 Pro rotary attachment, the xTool Desktop Smoke Purifier and the xTool Slide Extension mobile base. The kit is the ideal solution for those looking for precision, versatility and cleanliness during their creative engraving work.

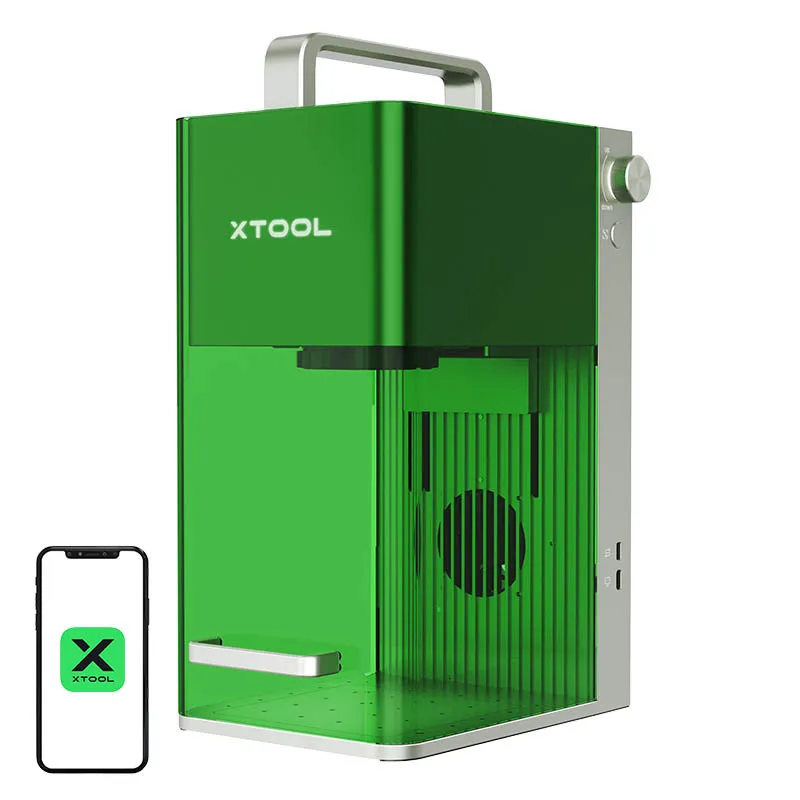

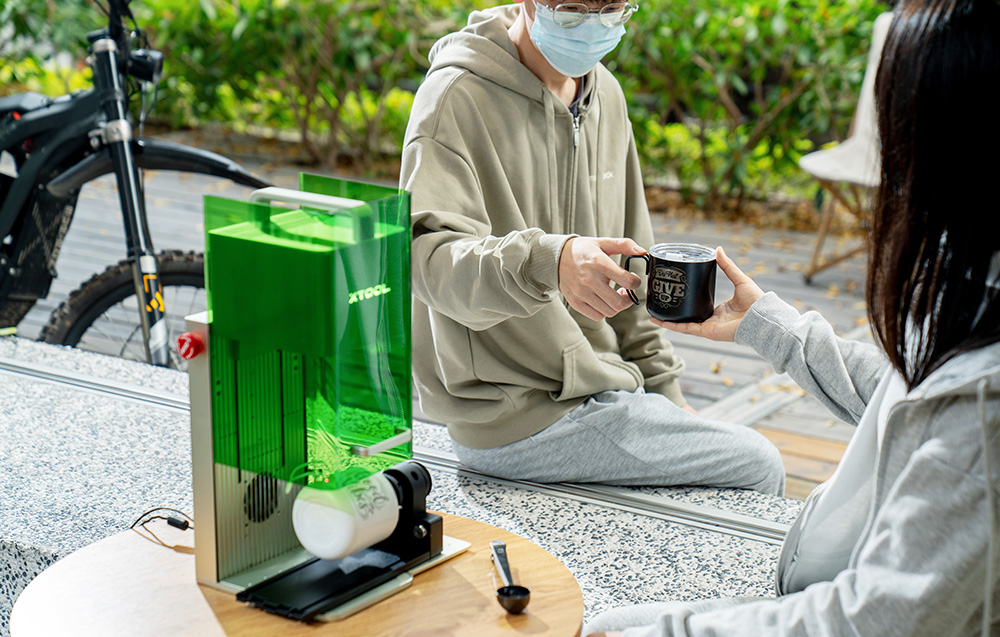

The xTool F1-Mint Green is a high-end engraving device that offers outstanding speed and precision thanks to its two lasers: a 10W 455nm diode laser and a 2W 1064nm infrared laser. The ability to work on a wide range of materials makes it the perfect tool for professionals and DIY enthusiasts.

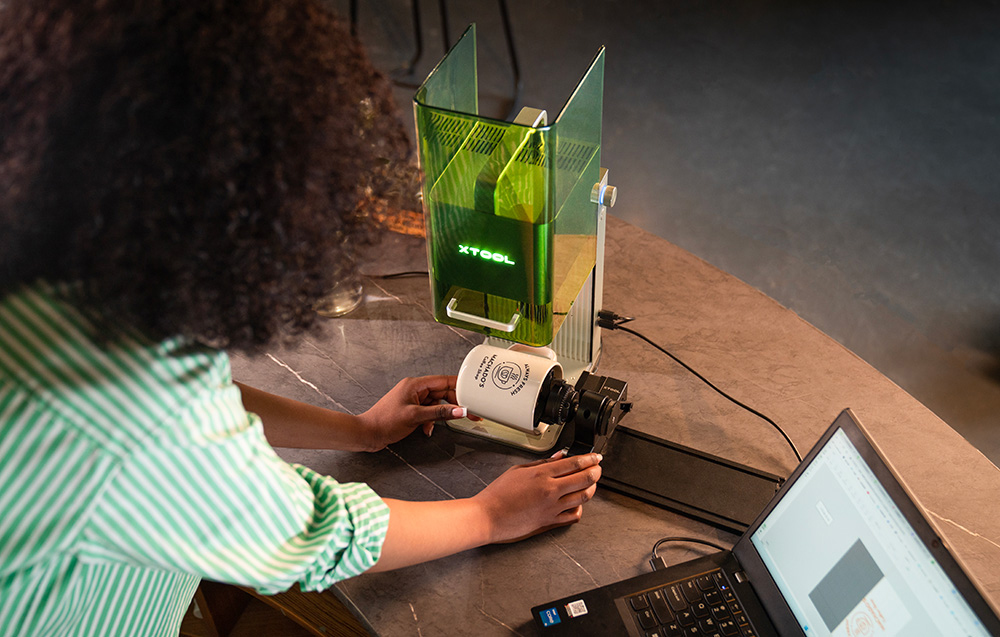

The RA2 Pro rotary attachment allows you to engrave objects of various shapes, including cylindrical and spherical ones. With its fast and precise control capabilities, the attachment significantly expands the functionality of the xTool F1 engraver, enabling the creation of more complex and detailed designs.

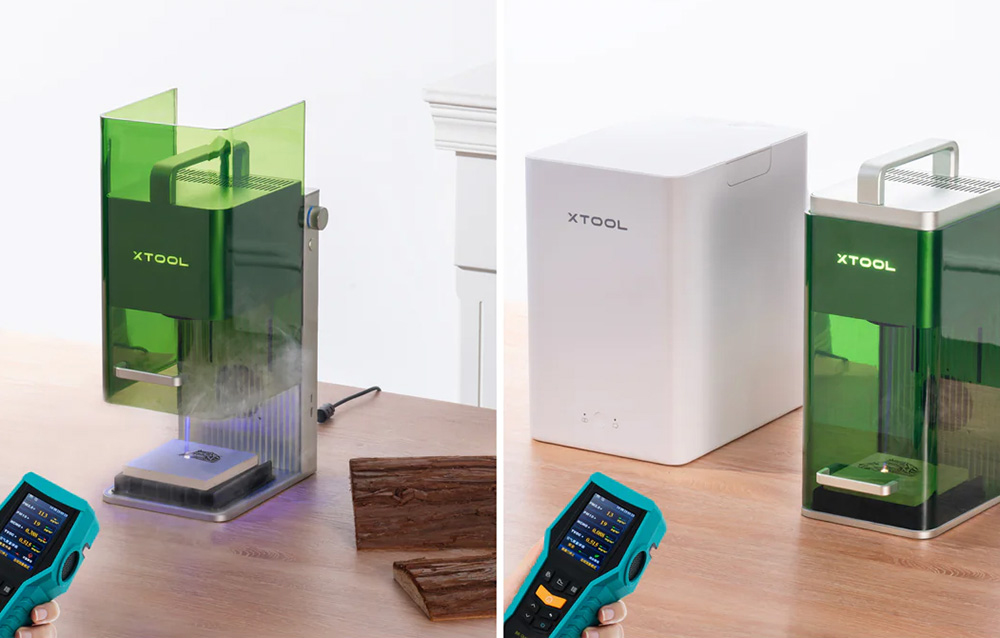

The xTool Desktop Smoke Purifier effectively eliminates smoke and contaminants while working with the laser, ensuring a clean and healthy working environment. It synchronizes with the operation of the engraver, automatically starting and stopping, further enhancing the user experience.

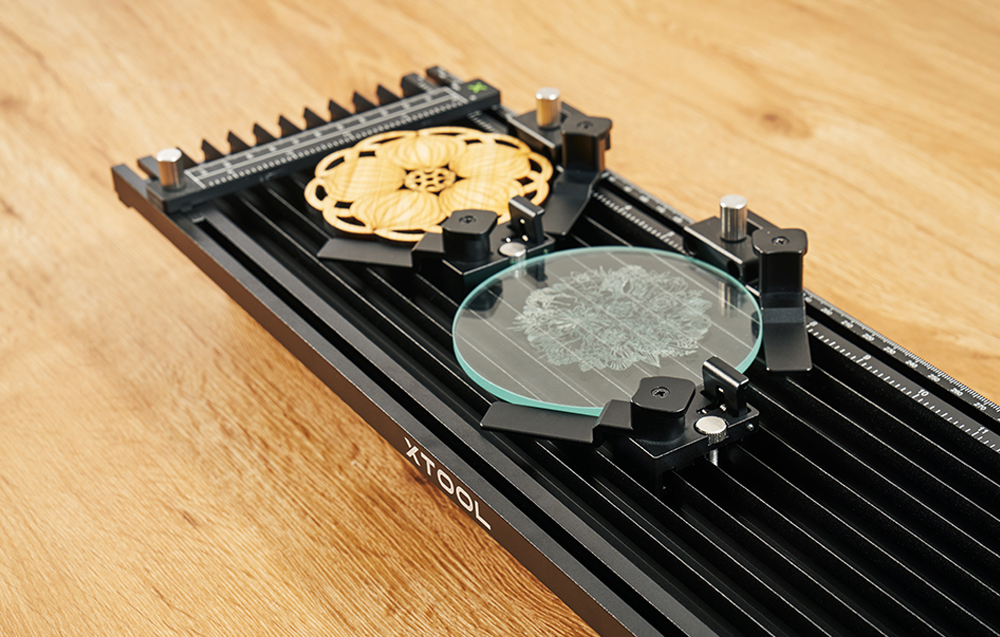

The xTool Slide Extension moving base is a state-of-the-art solution to increase the working space of the xTool F1 engraver. It provides exceptional precision and ease of use with its calibration system and intuitive one-button operation. The state-of-the-art cutting panel and perfectly designed airflow guarantee clean and smooth cuts, enhancing the quality of the final product.

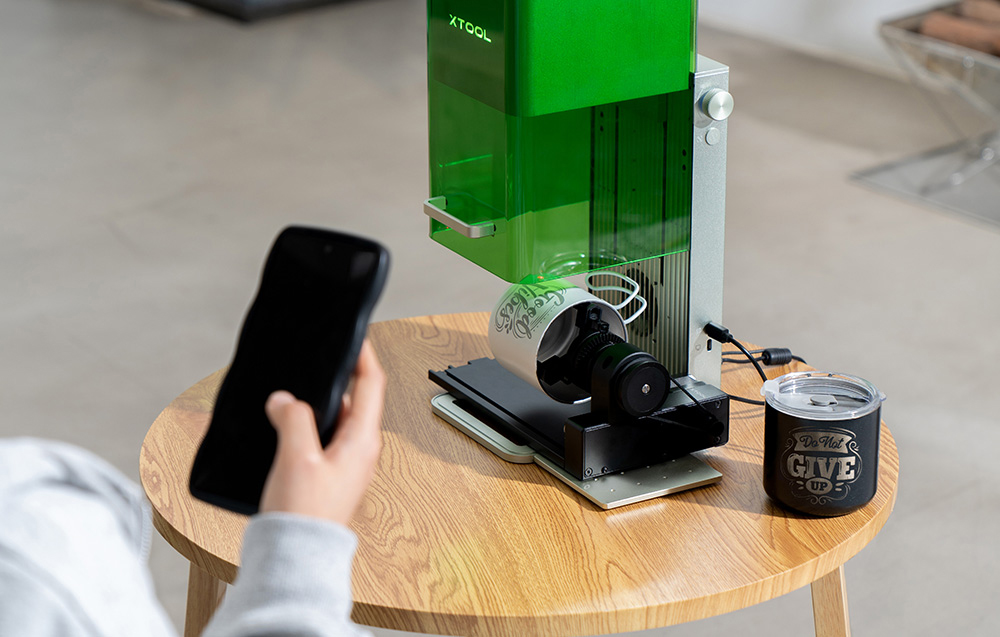

All devices in the kit are designed to connect and cooperate easily, offering users a seamless and efficient workflow. Intuitive interfaces and compatibility with various software ensure smooth operation and quick customization.
2-in-1 xTool F1 laser engraving machine - deluxe kit - Specifications
General
- Brand
- XTOOL
- Model
- F1 Deluxe Kit
- SKU / OEM Code
- INN-P5010308
- Color
- Mint Green
- Product Type
- Portable Dual Laser Engraver & Cutter Bundle
Laser Performance
- Laser Type
- Dual Laser (455nm Blue Diode & 1064nm Infrared)
- Laser Output Power
- 10W (Diode) / 2W (Infrared)
- Maximum Working Speed
- 4000 mm/s
- Movement Accuracy
- 0.00199 mm
- Focus Method
- Auto-Focus / Manual Dual-Light Focus
- Engraving Resolution
- Up to 4K / Ultra-HD
Working Area & Capacity
- Standard Working Area
- 115 x 115 mm (rounded square)
- Expanded Area with Slide Extension
- Up to 115 x 400 mm
- Compatible Materials
- Wood, Acrylic, Leather, Glass, Paper, Ceramics, Stainless Steel, Gold, Silver, Platinum, Brass, Aluminum, Plastic
RA2 Pro Rotary Attachment
- Attachment Types
- Roller Rotary, Chuck Rotary, Sphere Engraving, Ring Engraving
- Gear Ratio
- 4:1
- Engraving Diameter Range
- Roller: 3–198 mm; Chuck: 0–100 mm; Sphere: 25–100 mm; Ring: 11–70 mm
- Dimensions
- 261 x 138 x 93.5 mm (without support)
- Weight
- 2.33 kg
Desktop Smoke Purifier
- Dimensions
- 285 x 190 x 296 mm
- Weight
- 4.6 kg
- Input Voltage
- 24V / 2.5A
- Synchronization
- Auto-sync via USB-C connection to xTool F1
Connectivity & Software
- Connectivity
- Wi-Fi, USB-C, USB-A
- Supported Operating Systems
- Windows, macOS, iPadOS, iOS, Android
- Compatible Software
- xTool Creative Space (XCS), LightBurn
- Supported File Formats
- SVG, DXF, JPG, JPEG, PNG, BMP
Physical & Power Specifications
- F1 Main Unit Dimensions
- 179 x 235 x 334 mm
- F1 Main Unit Weight
- 4.6 kg
- Power Input
- 24V 5A
- Safety Features
- Protective Enclosure, Smoke Exhaust Fan, Auto-Stop Flame Sensor, Emergency Stop
