Zyxel Switch PoE Gigabit 4PoE 60W GS1005-HP UK Plug - Description
Upgrade your office or home network infrastructure with the Zyxel GS1005-HP 5-Port Gigabit Unmanaged PoE Switch. Engineered to meet the growing connectivity and power demands of small businesses and SOHO environments, this compact desktop switch delivers high-speed Gigabit connectivity alongside high-budget Power over Ethernet (PoE+) capabilities without breaking the bank.
High-Power PoE+ Ready for Connected Devices
Featuring four 802.3at PoE+ ports delivering up to 30W per port and a robust 60W total power budget, the GS1005-HP easily powers hungry network peripherals such as pan-tilt-zoom (PTZ) IP surveillance cameras, Wi-Fi 6 wireless access points, and VoIP telephony systems over standard Cat5e/Cat6 cabling—eliminating the need for separate power adapters and electrical wiring.
Smart Power Budget Indicators
Avoid network overloads with intuitive front-panel LED indicators. The switch provides real-time visibility into PoE status, alerting you when total power consumption approaches or reaches the 60W threshold, ensuring your connected hardware operates reliably without service interruptions.
Silent, Energy-Saving, and Durable Design
Built with a sturdy, fanless metal housing, the Zyxel GS1005-HP operates in total silence, making it ideal for desktop placement in quiet offices, reception desks, or meeting rooms. Integrated IEEE 802.3az Energy Efficient Ethernet automatically adjusts power consumption based on traffic loads and cable lengths, maximizing energy savings.
Key Features
- 5 Gigabit Ports: 1 standard Gigabit uplink port plus 4 Gigabit PoE+ (802.3af/at) ports for high-bandwidth data transfer.
- 60W PoE Power Budget: Supplies up to 30W per port to run modern access points, VoIP phones, and IP cameras.
- Plug-and-Play Installation: Unmanaged design requires zero configuration; connect your devices and get started immediately.

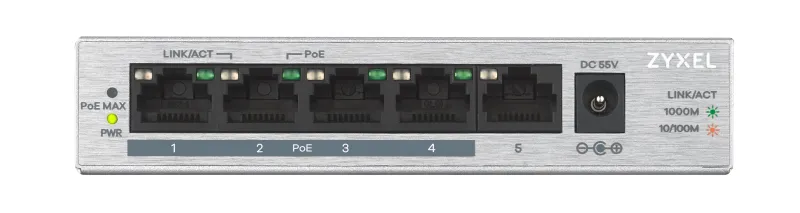

- PoE Budget LEDs: Instantly view and manage power capacity through visible LED status indicators.
- Whisper-Quiet Operation: Fanless metal chassis guarantees silent, maintenance-free performance.
- UK Plug Included: Ready for immediate deployment with standard UK power supplies across Cyprus.
Zyxel Switch PoE Gigabit 4PoE 60W GS1005-HP UK Plug - Specifications
General
- Brand
- Zyxel
- Model
- GS1005-HP
- SKU
- MS-28116
- Switch Type
- Unmanaged Desktop Switch
- Enclosure Material
- Metal
Port Configuration
- Total 10/100/1000 Mbps Ports
- 5
- PoE Ports
- 4 (Ports 1–4)
- Uplink Ports
- 1 Gigabit Ethernet (Port 5)
Power Over Ethernet (PoE)
- PoE Standard
- IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
- Total PoE Power Budget
- 60 Watts
- Max Power Per Port
- Up to 30 Watts
Performance
- Switching Capacity
- 10 Gbps
- Forwarding Rate
- 7.44 Mpps
- Packet Buffer
- 128 KB
- MAC Address Table
- 2K
- Jumbo Frame
- Up to 9 KB
Power & Environmental
- Power Supply
- External Power Adapter (UK Plug)
- Input Voltage
- 100 - 240 V AC, 50/60 Hz
- Energy Efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Acoustic Noise
- 0 dBA (Fanless)
- Operating Temperature
- 0°C to 40°C
Physical Dimensions
- Form Factor
- Compact Desktop / Wall-Mountable
- Cooling
- Fanless (Passive Cooling)
