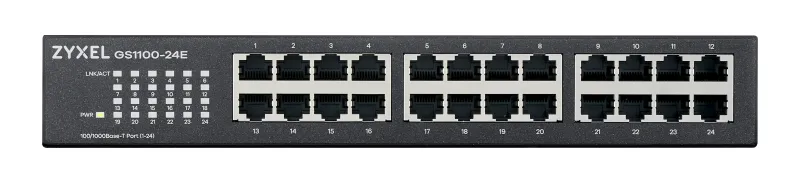

Zyxel Switch Gigabit Ethernet 24-Port R/M UK Plug GS1100-24E - Description
Experience seamless, high-speed office connectivity with the Zyxel GS1100-24E 24-Port Gigabit Ethernet Switch. Purpose-built for small-to-medium businesses and demanding work environments, this unmanaged switch provides a dependable, high-bandwidth backbone for workstations, network printers, NAS storage, and VoIP systems without the hassle of complex software configuration.
Silent and Eco-Friendly Operation
Designed with modern office acoustics in mind, the GS1100-24E features an intelligent fanless architecture that guarantees whisper-quiet performance, even under heavy data loads. In addition, built-in IEEE 802.3az Energy Efficient Ethernet (EEE) technology automatically detects network traffic and adjusts power usage accordingly, significantly lowering energy consumption while keeping your operations green.
True Plug-and-Play Simplicity
Eliminate network deployment headaches. With automatic MDI/MDI-X crossover detection on all 24 Gigabit ports, you can connect devices using standard patch cables without worrying about cabling type. Intuitive per-port LED indicators give network administrators and office staff immediate visibility into link activity and connection speed at a glance.
Key Features
- 24 Gigabit Ethernet Ports: Full 10/100/1000 Mbps wire-speed throughput for ultra-fast, uninterrupted data transfers.
- Fanless Silent Design: Completely noiseless operation ideal for desktop, open-plan, or acoustic-sensitive environments.
- Energy-Efficient Ethernet (IEEE 802.3az): Smart power-saving features reduce operational costs and carbon footprint.
- Zero Configuration Required: Instant plug-and-play functionality connects computers, servers, and peripherals effortlessly.
- Rackmount & Desktop Ready: Versatile, compact metal housing complete with UK plug compatibility for quick and secure deployment.
Zyxel Switch Gigabit Ethernet 24-Port R/M UK Plug GS1100-24E - Specifications
General
- Brand
- Zyxel
- Model
- GS1100-24E
- SKU
- MS-28113
- Switch Type
- Unmanaged
- Form Factor
- Desktop / Rackmountable (R/M)
Port Configuration
- Total Network Ports
- 24
- Port Type
- 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
- Auto-MDI/MDI-X
- Yes, on all ports
Performance
- Switching Capacity
- 48 Gbps
- Forwarding Rate
- 35.7 Mpps
- MAC Address Table
- 8K entries
- Packet Buffer
- 525 KB
- Jumbo Frame Support
- Up to 10 KB
Standards & Protocols
- IEEE Standards
- IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3az EEE, IEEE 802.3x Flow Control
- Quality of Service (QoS)
- 802.1p CoS supported
Physical & Environmental
- Cooling
- Fanless (Silent)
- Housing Material
- Metal
- LED Indicators
- Power, Link/Activity per port
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Operating Humidity
- 10% to 90% (non-condensing)
Power Specifications
- Power Supply
- Internal
- Input Voltage
- 100 - 240 V AC, 50/60 Hz
- Plug Type
- UK Plug
