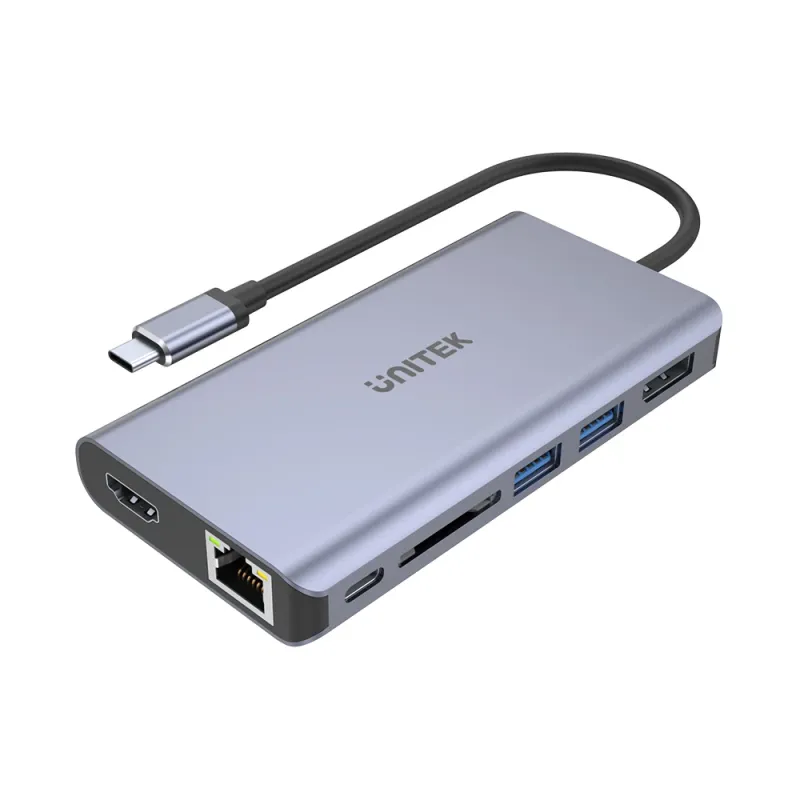

Unitek D1056A Type-C 3.1 HDMI/DP/RJ45/SD/PD100W Hub Space Grey - Description
Transform your ultrabook, MacBook, or workstation laptop into an all-in-one desktop setup with the Unitek D1056A Type-C 3.1 Multiport Hub. Engineered for high performance and sleek aesthetics, this versatile adapter delivers essential peripheral connectivity, ultra-fast networking, high-resolution multi-monitor streaming, and high-wattage charging over a single USB-C cable.
Dual 4K Video Output & Multi-Stream Transport (MST)
Boost your productivity with dual monitor options via HDMI and DisplayPort. Connect a single display to stream crisp Ultra HD 4K@30Hz video, or utilize Multi-Stream Transport (MST) on compatible Windows systems to expand across two external screens simultaneously (HDMI running at 1080P@60Hz alongside DisplayPort). Ideal for multitasking, content creation, and detailed technical workflows.
100W Power Delivery & High-Speed Data
Never worry about draining your battery while running demanding peripherals. The dedicated USB-C Power Delivery port provides up to 100W (20V/5A) pass-through charging directly to your host computer. Two high-speed USB-A 3.1 Gen 1 ports offer up to 5Gbps transfer rates for external hard drives, flash storage, and desktop peripherals, while the integrated SDXC card reader supports capacities up to 2TB.
Reliable Gigabit Ethernet & Premium Build
Enjoy stable, high-speed wired internet access with the integrated RJ45 Gigabit Ethernet port, featuring Wake-on-LAN and full/half duplex support. Built with a heat-dissipating, durable Space Grey aluminium alloy enclosure, the Unitek D1056A is designed for reliable daily use whether at the office or on the road.
Key Features
- High-Definition Video: Up to 4K@30Hz UHD via HDMI and DisplayPort.
- MST Dual Display: Stream to two independent displays simultaneously (Windows).
- 100W USB-C Power Delivery: Rapid pass-through charging for modern laptops.
- Gigabit Ethernet: 10/100/1000Mbps RJ45 port for low-latency wired connectivity.
- SuperSpeed USB 3.1: 5Gbps transfer speeds across two USB-A ports.
- Integrated Card Reader: Supports SDHC / SDXC cards up to 2TB capacity.
- Durable Aluminium Casing: Elegant space grey finish matches modern devices.
- Plug & Play: Bus-powered operation with no drivers required.
Unitek D1056A Type-C 3.1 HDMI/DP/RJ45/SD/PD100W Hub Space Grey - Specifications
General
- Brand
- UNITEK
- Model
- D1056A
- SKU
- MS-21357
- Product Type
- USB-C Multiport Hub / Docking Station
- Housing Material
- Aluminium Alloy
- Colour
- Space Grey
Host Interface
- Connector Type
- USB-C Male
- Compatibility
- Thunderbolt 3 / USB-C with DisplayPort Alt Mode
Video Outputs
- HDMI Port
- 1x HDMI (up to 4K @ 30Hz)
- DisplayPort
- 1x DisplayPort (up to 4K @ 30Hz)
- Dual Monitor Support
- Yes (MST supported; HDMI adjusts to 1080P @ 60Hz)
- OS Note
- macOS does not support MST (Mirror mode only)
Data & Expansion Ports
- USB Ports
- 2x USB 3.1 Gen 1 Type-A (up to 5Gbps)
- Card Reader
- 1x SD Slot (supports SDHC / SDXC up to 2TB)
Networking
- Ethernet Port
- 1x RJ45 Gigabit Ethernet
- Network Speeds
- 10/100/1000 Mbps
- Protocols Supported
- IEEE 802.3, IPv4/IPv6, COE, Wake-on-LAN, Full & Half-Duplex
Power & Charging
- Power Delivery Port
- 1x USB-C Female (PD 3.0)
- Maximum Input / Pass-Through
- Up to 100W (20V / 5A)
- Power Source
- Bus-powered / USB-C PD Pass-through
