TP-LINK SWITCH 8-PORT GIGABIT SG1008P 4-PORT PoE SG1008P - Description

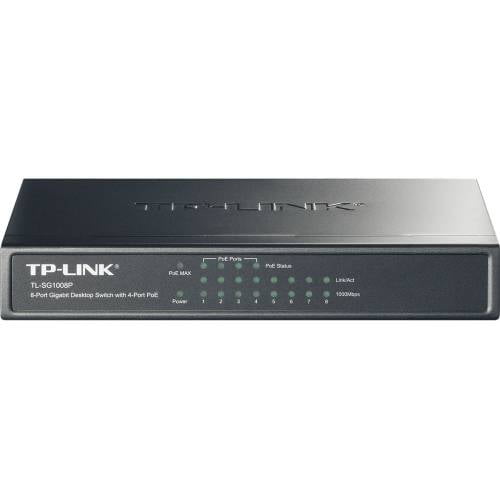

The TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch provides an effortless way to expand your wired network while delivering power and data over a single Ethernet cable. Equipped with four Power over Ethernet (PoE) ports, this versatile switch is the ideal networking solution for surveillance systems, home offices, and small business workspaces requiring clean, clutter-free installations of IP cameras, wireless access points, and VoIP phones.
Key Features
- 8 Gigabit Ethernet Ports: Features 8x 10/100/1000 Mbps auto-negotiation RJ45 ports for high-bandwidth data transfers.
- 4 Dedicated PoE Ports: Ports 1 through 4 support IEEE 802.3af PoE standard with up to 15.4W per port and a generous total power budget of 64W.
- Intelligent Power Management: Automatically cuts lower-priority port power if total consumption exceeds 64W, protecting your equipment from power overload.
- Plug and Play: No configuration or software required—simply connect your devices and start transferring data immediately.
- Silent & Durable: Compact desktop design housed in a sturdy metal casing with a fanless architecture for whisper-quiet operation in noise-sensitive environments.
- Advanced Traffic Optimization: Supports 802.1p/DSCP QoS for lag-free latency-sensitive traffic such as voice and high-definition video streaming.
Simplified Cable Management & Deployment
By integrating power and network connectivity into standard Ethernet cabling, the TL-SG1008P eliminates the need for nearby electrical power outlets when positioning network hardware. Whether mounting surveillance cameras on walls or setting up access points across ceilings, enjoy flexible installation, lower wiring costs, and reliable Gigabit throughput throughout your premises.
TP-LINK SWITCH 8-PORT GIGABIT SG1008P 4-PORT PoE SG1008P - Specifications
General
- Brand
- TP-Link
- Model
- TL-SG1008P
- Device Type
- Unmanaged Gigabit Switch
- Enclosure Type
- Sturdy Metal Casing (Desktop / Wall-Mountable)
Network & Ports
- Total Ports
- 8
- Port Speed
- 10/100/1000 Mbps (Gigabit)
- Port Type
- RJ45 (Auto-Negotiation, Auto MDI/MDIX)
- PoE Ports
- Ports 1 to 4
Power Over Ethernet (PoE)
- PoE Standard
- IEEE 802.3af compliant
- PoE Power Budget
- 64 W total
- Power Per Port
- Up to 15.4 W
Performance & Protocols
- Switching Capacity
- 16 Gbps
- Packet Forwarding Rate
- 11.9 Mpps
- MAC Address Table
- 4K entries
- Jumbo Frame
- 16 KB
- Transmission Method
- Store-and-Forward
- Quality of Service (QoS)
- 802.1p/DSCP QoS, IGMP Snooping
Power & Environmental
- Power Supply
- External Power Adapter (Output: 53.5V DC / 1.31A)
- Max Power Consumption
- 65.2 W (with 64W PoE load), 2.2 W (no PoE device connected)
- Cooling
- Fanless (Passive Cooling)
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
Physical Dimensions
- Dimensions (W x D x H)
- 171 x 98 x 27 mm
- Certifications
- CE, FCC, RoHS
