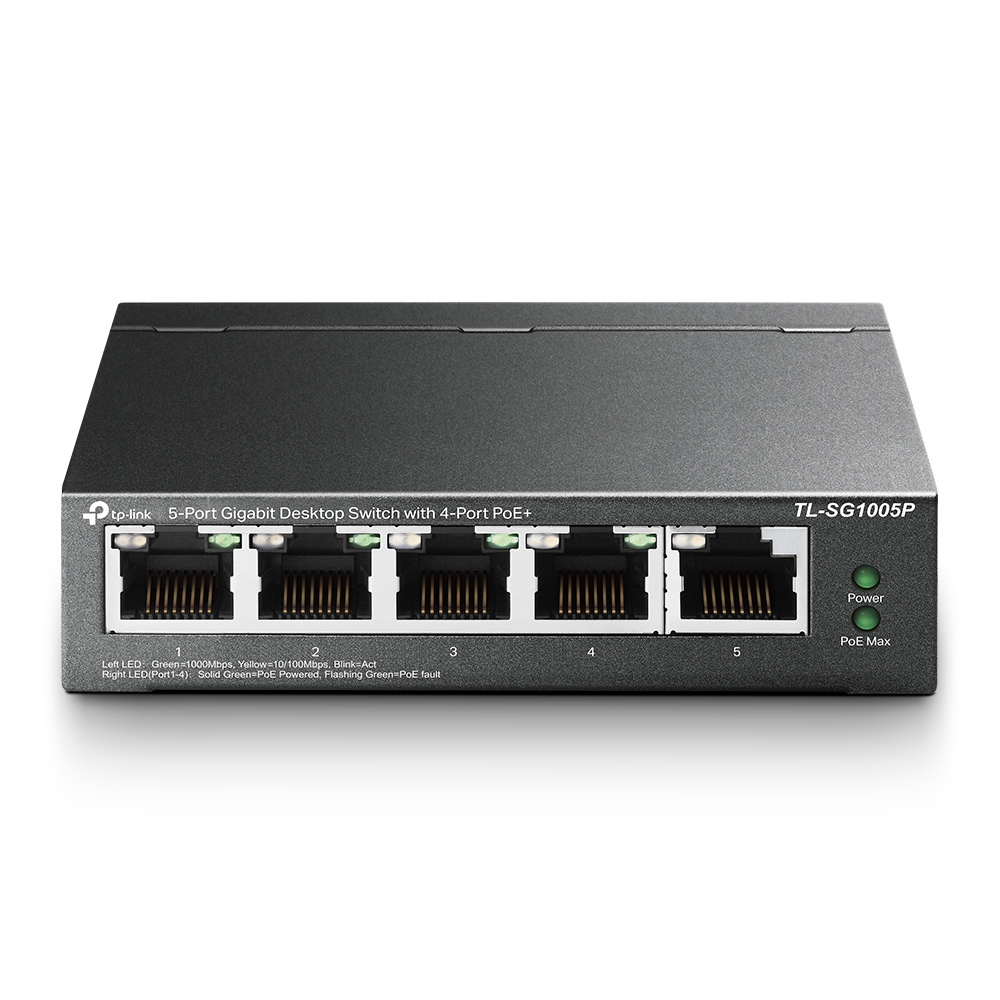

TP-LINK SWITCH 5-PORT 4 POE SG1005P - Description
Upgrade your network infrastructure with the TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+. Designed for small-to-medium businesses, home offices, and surveillance systems, this unmanaged switch simplifies device deployment by delivering both high-speed gigabit data and power through a single standard Ethernet cable.
Key Features
- Power over Ethernet (PoE+): 4 of the 5 Gigabit RJ45 ports support the IEEE 802.3af/at standard, delivering up to 30W per port with a generous total power budget of 65W.
- High-Speed Gigabit Connectivity: 5× 10/100/1000 Mbps auto-negotiation ports significantly expand network capacity, enabling instant large file transfers without bottlenecking.
- Traffic Prioritization (QoS): 802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video surveillance feeds.
- Intelligent Power Management: Automatically cuts lower-priority port power to protect the device from overload when total consumption exceeds 65W.
- Plug and Play: Requires zero configuration or complex installation, making setup immediate and hassle-free.
- Durable & Silent Design: High-grade metal casing with a fanless design ensures quiet operation and long-term durability on any desktop or wall mount.
TP-LINK SWITCH 5-PORT 4 POE SG1005P - Specifications
General
- Brand
- TP-LINK
- Model
- TL-SG1005P
- SKU
- OS-TL-SG1005P
- Switch Type
- Unmanaged Desktop Switch
- Enclosure
- Metal
Network Ports & Interfaces
- Total Network Ports
- 5
- Port Speed
- 10/100/1000 Mbps (Gigabit)
- PoE Ports
- 4 Ports (Ports 1 to 4)
- Connector Type
- RJ45 Auto-Negotiation / Auto MDI/MDIX
Power Over Ethernet (PoE)
- PoE Standard
- IEEE 802.3af, IEEE 802.3at
- Power per PoE Port
- Up to 30 W
- Total PoE Power Budget
- 65 W
Performance & Protocols
- Switching Capacity
- 10 Gbps
- Packet Forwarding Rate
- 7.44 Mpps
- MAC Address Table
- 2K
- Jumbo Frame
- 16 KB
- Transmission Method
- Store-and-Forward
- Advanced Features
- 802.1p/DSCP QoS, IGMP Snooping, Flow Control
Physical & Environmental
- Cooling
- Fanless (Silent Operation)
- Installation
- Desktop / Wall Mounting
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Operating Humidity
- 10% to 90% RH non-condensing
