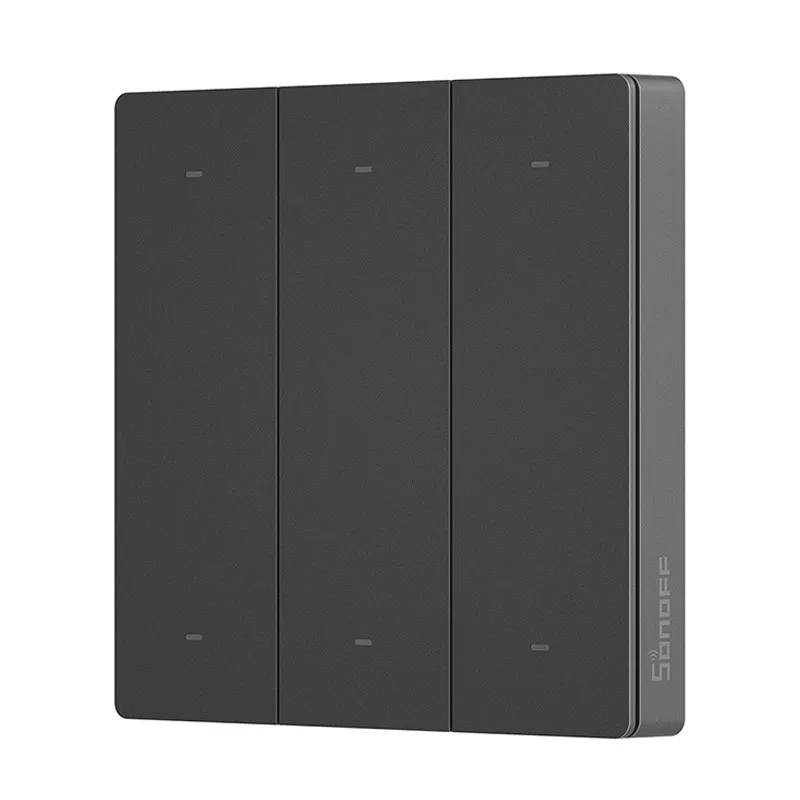

Sonoff SwitchMan R5 Scene Controller - Description
Tired of reaching for your smartphone every time you want to adjust lights or trigger smart home routines? The Sonoff SwitchMan R5 Scene Controller provides immediate, intuitive physical control over your entire smart ecosystem. Acting as an eWeLink-Remote sub-device, the R5 seamlessly integrates into your setup to control multiple appliances, lights, and automated scenes across your home or office with a simple press.
Key Features
- 18 Custom Scene Triggers: Equipped with 6 physical buttons, each supporting single click, double click, and long-press actions to execute up to 18 individual smart scenes.
- Offline eWeLink-Remote Control: Controls compatible eWeLink-Remote gateway devices (such as SONOFF M5, MINIR3, and B05-BL bulbs) locally up to 90 meters away—even without an active internet connection.
- Effortless Multi-Way Switching: Pair with the SONOFF M5 Switchman to instantly establish 2-way or multi-way light switching on opposite sides of a room without cutting walls or running new wires.
- Versatile Wire-Free Mounting: Mount the controller using the included 3M adhesive tape, attach it magnetically to metal surfaces, or lift it off its base to use as a portable handheld remote.
- High Capacity Gateway Integration: A single eWeLink-Remote gateway can connect up to 8 R5 controllers, allowing complete building-wide control.
Sonoff SwitchMan R5 Scene Controller - Specifications
General
- Brand
- SONOFF
- Model
- SwitchMan R5
- Part Number / SKU
- MS-23628
- Device Type
- Smart Scene Controller / Remote Wall Switch
- Casing Material
- PC V0 (Flame-retardant plastic)
Connectivity & Compatibility
- Communication Protocol
- eWeLink-Remote (2.4GHz proprietary)
- Transmission Range
- Up to 90m (Open space / line of sight)
- Supported Gateways
- SONOFF M5, MINIR3, S40, S40 LITE, B02-BL, B05-BL
- Max Controllers per Gateway
- Up to 8 units
Control & Automation
- Button Count
- 6 Gang / 6 Physical Buttons
- Trigger Types
- Single Click, Double Click, Long Press
- Total Programmable Actions
- Up to 18 Scenes / Triggers
- Offline Operation
- Yes (with compatible eWeLink-Remote gateway)
Power & Battery
- Power Source
- Battery Powered
- Battery Type
- 2 x 3V CR2032 Button Cells (approx. 2 years typical life)
Installation & Dimensions
- Mounting Method
- 3M Double-Sided Adhesive / Magnetic Docking / Handheld
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Dimensions
- 86 x 86 x 13.5 mm
- Color
- Dark Grey
