SNAPMAKER U1 3D PRINTER - Description

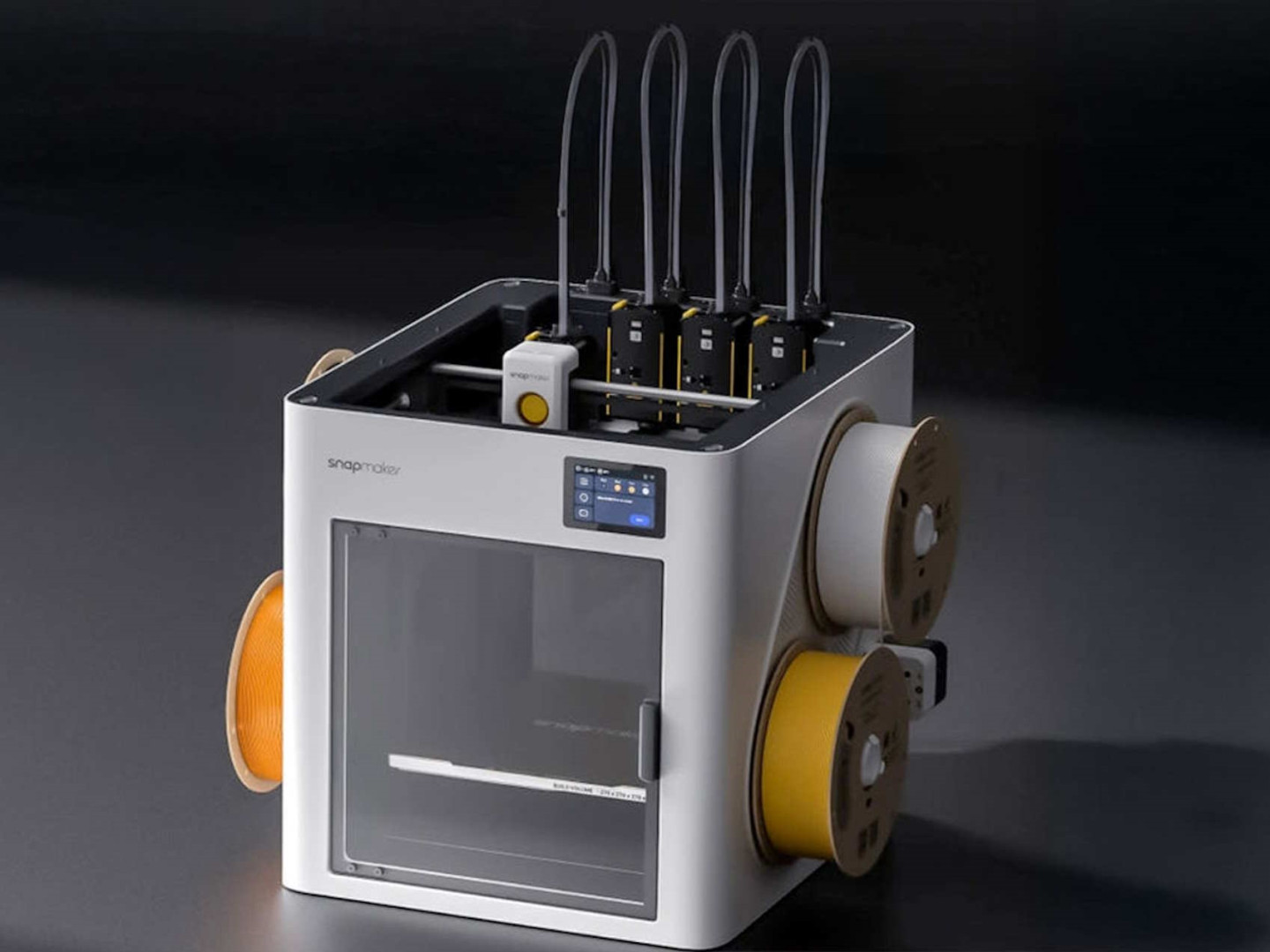

Switch Filaments in 5 Seconds with SnapSwap
Most printers rely on filament changers to switch between colors or materials, spending more time purging than actually printing. With four toolheads preloaded and pre-heated with their own filaments, the SnapSwap™ system lets the U1 switch by simply swapping the toolheads, cutting your wait time from approximately two minutes to only five seconds.

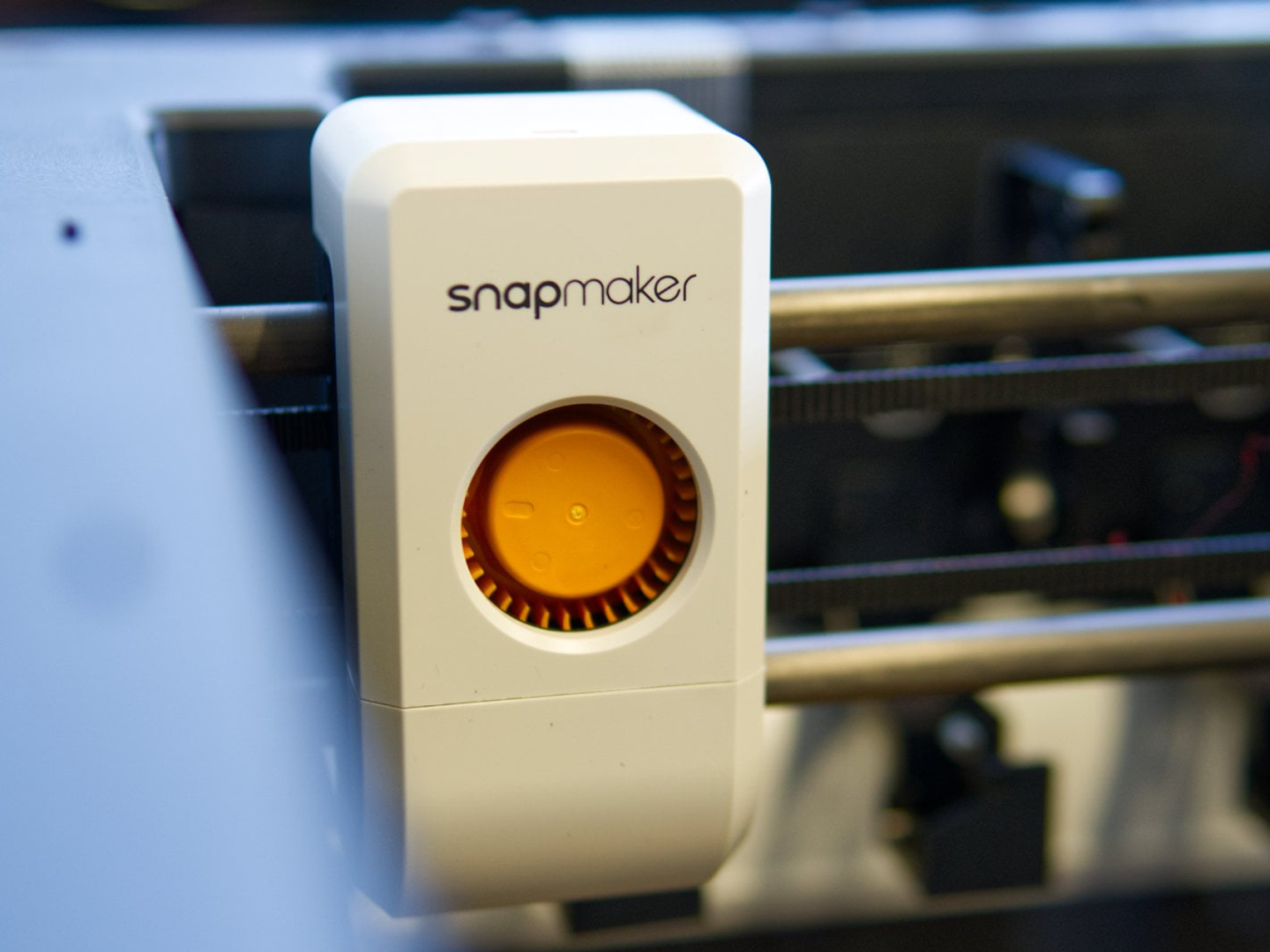

No More Purging for Color Change
Filament-changing printers 'purge' by wasting perfectly good filament—pushing one color through the nozzle until the last trace of the old one is gone. The U1 doesn't play that game. It only purges the tiny amount of filament that's actually degraded by the time a new print job begins, or during flow-rate calibration, cutting waste by up to 80% on every print.

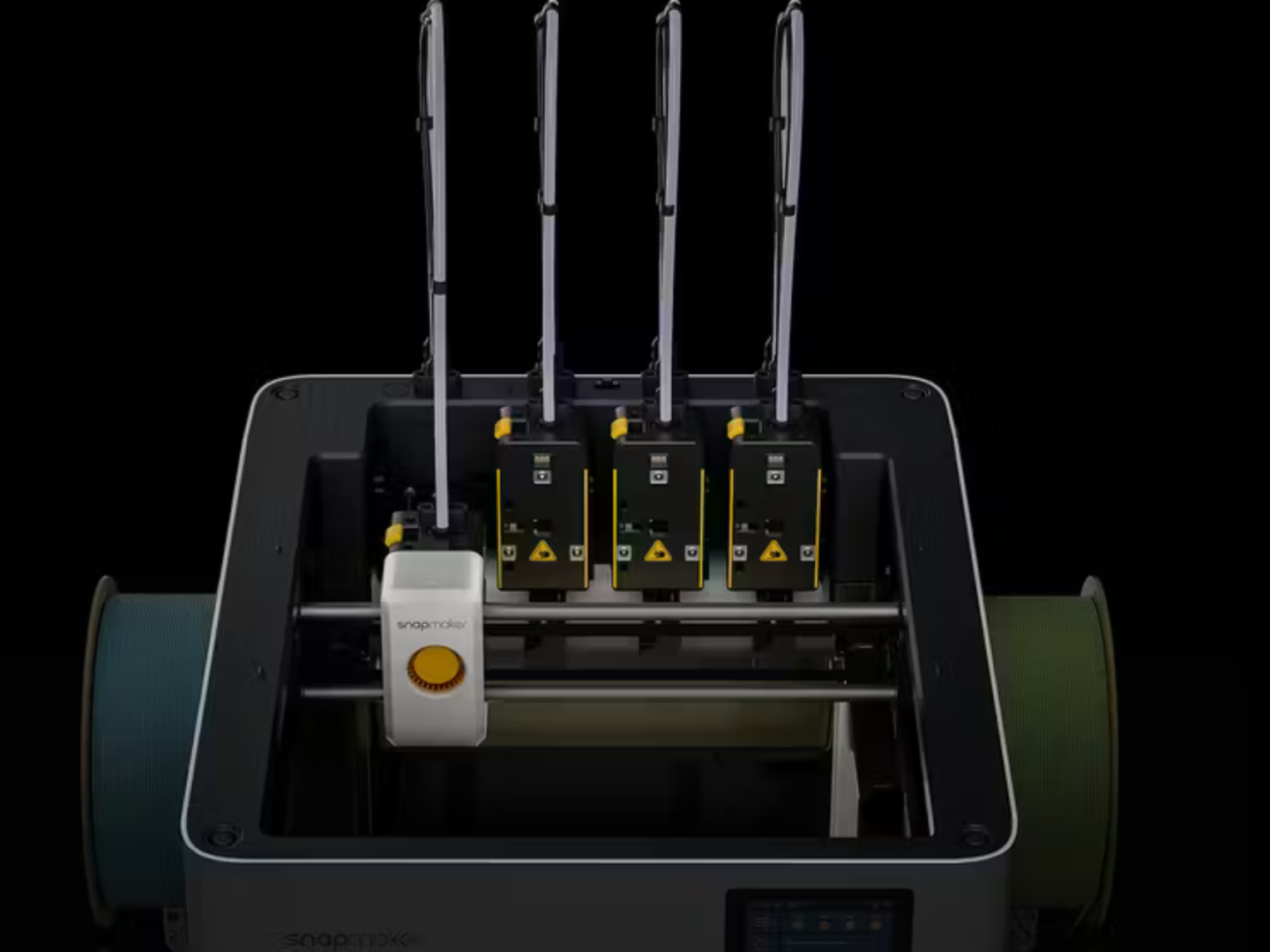

Rock-Solid & Precise Locks
The U1 uses steel-ball kinematic couplings to click each print heat into perfect position, then locks it securely—no screws, no magnets, no extra motors. Locked fast, rock solid, tested over 1,000,000 swaps with zero failures.
Less Waste Means Serious Savings
So. Much. Waste. On other 3D printers, printing a multi-color model leaves a mountain of trash – often 3 or 4 times more material is wasted than actually ends up in the model! The U1 avoids waste through smart tool switching, saving filament, saving money, and even helping the environment.
Toolhead Offset Calibration
The U1 automatically aligns XYZ offsets between multiple toolheads, keeping offsets within 0.04mm for sharp prints without vertical shifts.

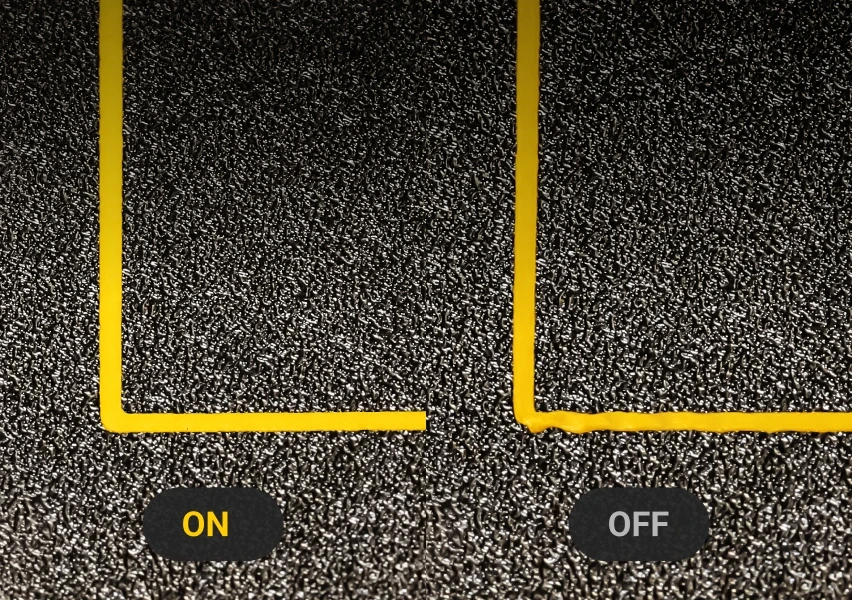

Vibration Compensation for Consistent Prints
Input Shaping, aided by a precision accelerometer sensor, reduces vibrations caused by rapid directional changes by pre-processing movement commands to cancel out resonant frequencies. By adjusting acceleration profiles and introducing calculated delays, it prevents surface artifacts like ghosting or ripples, allowing the U1 to deliver clean edges, smooth walls, and sharp details even at high speeds.

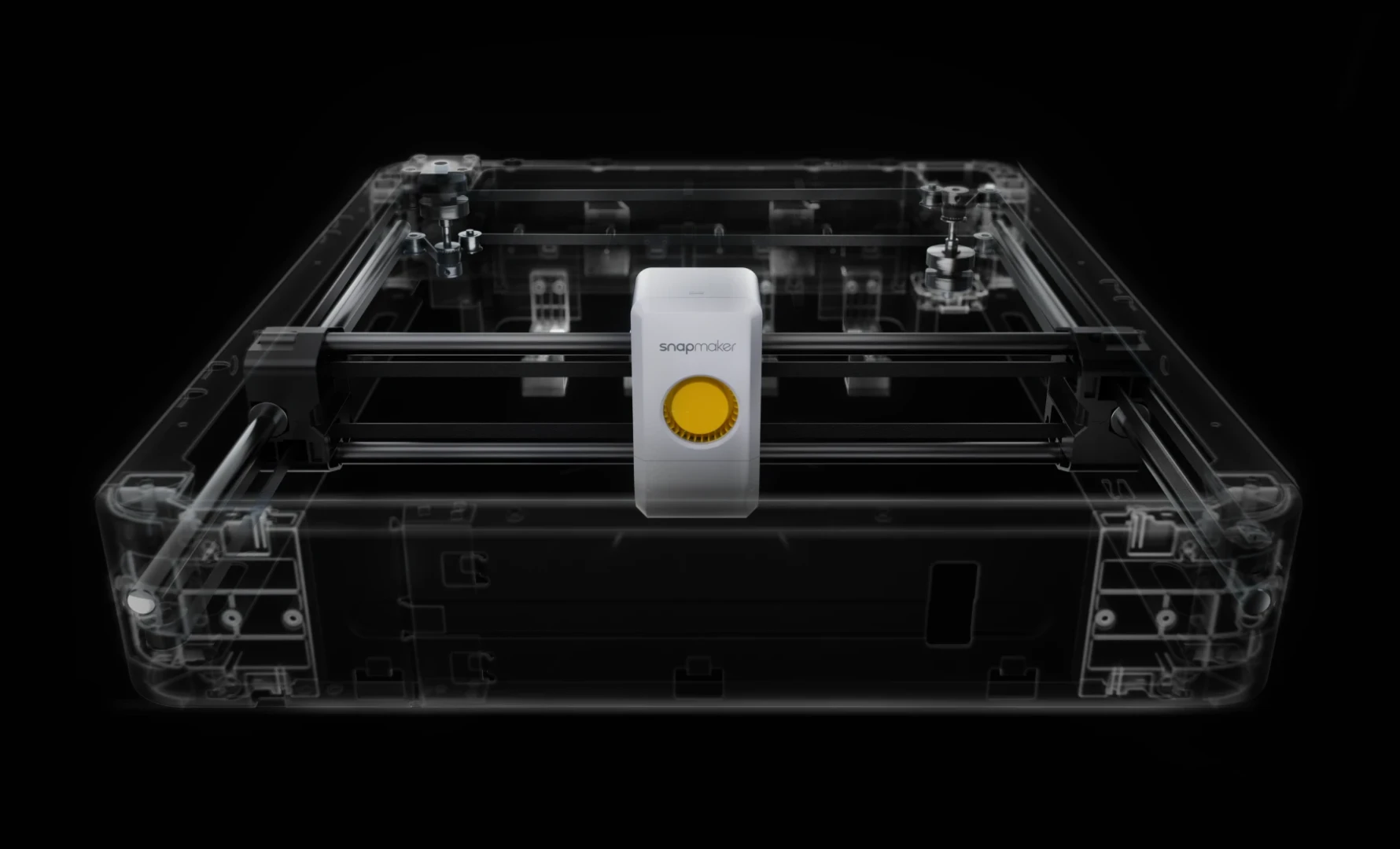

Fine-tuned Extrusion for Exquisite Details
The U1 uses Pressure Advance to stay ahead of flow delays, especially during quick moves or sharp corners. It tweaks extrusion timing based on motion changes, so filament flows smoothly even when speeds shift. That means fewer blobs, less thinning, and crisp, consistent detail.
SNAPMAKER U1 3D PRINTER - Specifications
General
- Brand
- SNAPMAKER
- Model
- U1
- Printing Technology
- Fused Deposition Modeling (FDM)
- Motion System
- CoreXY
- Firmware
- Klipper
- Display
- 3.5-inch 320 × 480 Color Touchscreen
Printing Specifications
- Build Volume
- 270 × 270 × 270 mm³
- Max Toolhead Speed
- 500 mm/s
- Max Acceleration
- 20,000 mm/s²
- Layer Height Range
- 0.08 mm to 0.24 mm
- Printing Dimensional Accuracy
- ±0.1 mm
- Bed Leveling
- Automatic Mesh Bed Leveling
- Print Bed
- Flexible Steel PEI Build Plate (Textured)
- Max Print Bed Temperature
- 100°C
- Advanced Compensation
- Pressure Advance, Input Shaping
- Filament Waste Reduction
- Up to 80%
Extruder & Hotend
- Number of Toolheads
- 4 (SnapSwap™ System)
- Tool Change Speed
- 5 seconds
- Extruder Type
- Direct Drive Extruder
- Nozzle Diameter
- 0.4 mm (Stainless Steel)
- Max Nozzle Temperature
- 300°C
- Filament Diameter
- 1.75 mm
- Max Flow for Hot End
- 32 mm³/s
- Supported Filaments
- PLA, PETG, TPU, PVA, PCTG, PET, ABS, ASA, PA, PC, Carbon-fiber-reinforced Polymer, Glass-fiber-reinforced Polymer
- Automatic Filament System
- Supported (Auto-feed, RFID recognition, Backup Mode)
Connectivity & Software
- Data Transmission Methods
- Wi-Fi (2.4GHz), USB Flash Drive
- Supported Slicer
- Snapmaker Orca (based on Orca Slicer)
- App
- Snapmaker App
- Operating System Compatibility
- Windows (7+), macOS (10.7+), Linux (Ubuntu 12.04+)
- Internal Storage
- 26 GB eMMC
- Live View Camera
- 2 Megapixel Built-in Chamber Camera
- Failure Detection
- Air Printing Detection, Toolhead Swap Error Detection, Build Plate Presence Detection, Build Plate Obstruction Detection
- Power Loss Recovery
- Supported
Physical & Power Attributes
- Printer Dimensions
- 584 mm × 499 mm × 730 mm
- Net Weight
- 18.2 kg
- Input Voltage
- 100–240V AC, 50/60Hz
- Rated Power
- 1150 W (Max, 220-240 V~)
