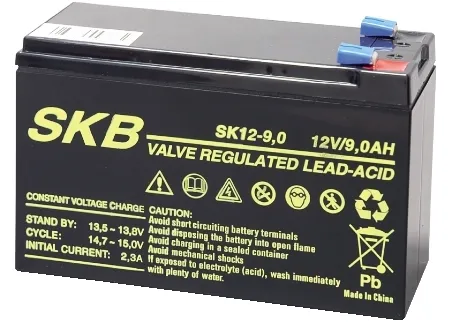

SKB Lead Acid Battery 12V 9.0AH SK12-9 - Description
Ensure uninterrupted operation for your critical equipment with the SKB Lead Acid Battery 12V 9.0AH (SK12-9). Engineered for high-drain standby and cyclic applications, this Valve Regulated Lead-Acid (VRLA) battery provides dependable backup power for Uninterruptible Power Supplies (UPS), emergency backup lighting, fire alarms, and security installations.
Key Features
- High Energy Output: Rated at 12V and 9.0Ah, delivering up to 204W (15 min rate) for reliable high-rate discharge performance during outages.
- Maintenance-Free VRLA Design: Sealed construction prevents electrolyte leakage and eliminates the need for water replenishment.
- Robust Terminal Connection: Standard 6.3 mm Faston (T2) terminals ensure secure, low-resistance electrical connections.
- Wide Operational Temperature: Operates efficiently under demanding conditions with a discharge tolerance range from -10°C to +60°C.
- Flame-Retardant Casing: Rugged ABS (UL94-HB) container offers superior shock resistance and durability.
- Standard Commercial Grade: EUROBAT classified for a 3 to 5-year design life in standby commercial applications.
SKB Lead Acid Battery 12V 9.0AH SK12-9 - Specifications
General
- Brand
- SKB
- Model
- SK12-9
- SKU
- MS-25629
- Battery Type
- Valve Regulated Lead Acid (VRLA)
- EUROBAT Classification
- 3 - 5 Years 'Standard Commercial'
- Intended Application
- UPS Systems, Emergency Lighting, Security & Alarms
Electrical Characteristics
- Nominal Voltage
- 12 Vdc
- Nominal Capacity
- 9.0 Ah
- Number of Cells
- 6
- Battery Power (15 min)
- 204 W
- Power per Cell (15 min)
- 34 W
- Max Discharge Current (5 sec)
- 130 A
Charging & Operational Parameters
- Buffer / Float Charging Voltage
- 13.5 - 13.8 Vdc
- Cyclic Charging Voltage
- 14.4 - 15.0 Vdc
- Standard Charging Current
- 2.70 A
- Discharge Operating Temperature
- -10°C to +60°C
- Charge Operating Temperature
- -20°C to +60°C
- Storage Temperature
- -20°C to +60°C
Physical Attributes
- Dimensions (L x W x H)
- 151 x 65 x 95 mm
- Total Height with Terminals
- 101 mm
- Weight
- 2.60 kg
- Terminal Type
- Faston 6.3 mm
- Terminal Layout
- Layout 4
- Container Material
- ABS - HB
