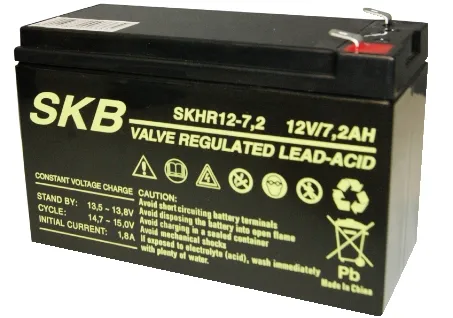

SKB Lead Acid Battery 12V 7.2AH 186W SK12-7.2HR - Description
Keep your critical electronics and security hardware running during power interruptions with the SKB Lead Acid Battery 12V 7.2AH 186W (SK12-7.2HR). Engineered for high-rate discharge efficiency, this valve-regulated lead-acid (VRLA) battery delivers exceptional energy density, making it a reliable choice for Uninterruptible Power Supplies (UPS), medical equipment, and security alarm systems.
Key Features
- High-Rate Discharge: Delivers 186W of backup power over a 15-minute discharge cycle (31W/cell), safeguarding connected equipment when mains power drops.
- Maintenance-Free VRLA Design: Sealed construction eliminates the need for water replenishment and allows safe, leak-free operation in multiple orientations.
- Standard 6.3 mm Faston Terminals: Features industry-standard F2 faston terminals for fast, tool-free sliding connections and seamless compatibility with leading UPS units.
- Commercial Grade Durability: Rated under the EUROBAT classification for 3 to 5 years of standard commercial service life in standby applications.
- Resilient Operating Range: Built to function reliably across a broad temperature spectrum, from -20°C up to +60°C.
Common Applications
- UPS backup units (APC, Eaton, Riello, etc.)
- Intruder alarm and fire security panels
- Emergency exit and backup lighting systems
- Telecommunications and networking equipment
SKB Lead Acid Battery 12V 7.2AH 186W SK12-7.2HR - Specifications
General
- Brand
- SKB
- Model
- SK12-7.2HR
- Part Number (SKU)
- MS-26286
- Battery Type
- Valve Regulated Lead Acid (VRLA)
- Number of Cells
- 6
- EUROBAT Classification
- 3 - 5 Years (Standard Commercial)
Electrical Specifications
- Nominal Voltage
- 12 Vdc
- Nominal Capacity
- 7.2 Ah
- Battery Power (15 min)
- 186 W
- Power per Cell (15 min)
- 31 W
- Buffer Charging Voltage
- 13.5 - 13.8 Vdc
- Cyclic Charging Voltage
- 14.4 - 15.0 Vdc
- Standard Charging Current
- 2.16 A
- Max Discharge Current (5 sec)
- 120 A
Connectivity & Terminals
- Terminal Type
- Faston 6.3 mm (F2)
- Terminal Layout
- Layout 4
Physical Attributes
- Dimensions (L x W x H)
- 151 x 65 x 95 mm
- Total Height with Terminals
- 101 mm
- Weight
- 2.20 kg
Operating Environment
- Discharge Temperature
- -10°C to +60°C
- Charging Temperature
- -20°C to +60°C
- Storage Temperature
- -20°C to +60°C
