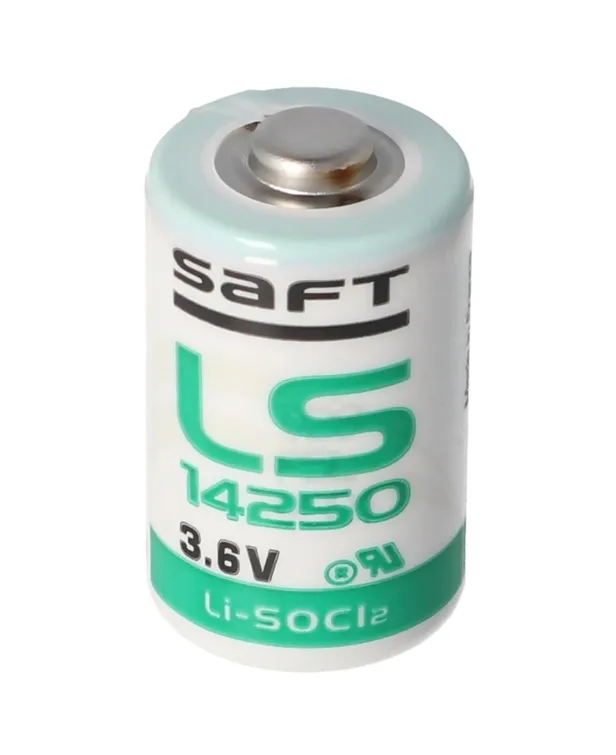

Saft Lithium 14250 1/2 AA Battery Thionyl Chloride (1pc) - Description
The Saft Lithium 14250 1/2 AA Battery is an industrial-grade 3.6V non-rechargeable Lithium Thionyl Chloride (Li-SOCl2) cell engineered for long-term autonomous applications requiring dependable power. Designed by global battery specialist SAFT, this compact battery utilizes advanced LS-series bobbin technology to deliver a stable operating voltage, high energy density, and exceptional reliability across a wide range of electronic devices.
Key Features
- High & Stable Operating Voltage: Delivers a consistent nominal 3.6V during continuous discharge and low-amperage pulsing.
- Ultra-Low Self-Discharge: Loses less than 3% capacity per year at 20°C, offering an outstanding shelf and service life up to 10+ years.
- Extreme Temperature Resilience: Operates flawlessly in demanding industrial conditions with an operating range from -60°C to +85°C.
- Robust Hermetic Seal: Stainless steel construction with guaranteed airtightness up to 110°C to prevent leakage and corrosion.
- Certified Safety: Fully compliant with IEC86-4 and EN50020 standards, with UL component recognition (MH126009).
Recommended Applications
Ideal for automated meter reading (AMR), alarms, wireless security sensors, GPS tracking units, medical instrumentation, automotive telematics, and industrial memory back-up systems (CMOS/RAM).
Saft Lithium 14250 1/2 AA Battery Thionyl Chloride (1pc) - Specifications
General
- Brand
- SAFT
- Product Type
- Primary (Non-Rechargeable) Lithium Battery
- Part Number / Series
- LS 14250 (LS Series)
- SKU
- MS-28675
- Pack Quantity
- 1 pc
Electrical Characteristics
- Chemical System
- Lithium Thionyl Chloride (Li-SOCl2)
- Nominal Voltage
- 3.6V
- Technology Type
- Bobbin / Coil Construction
- Self-Discharge Rate
- < 3% per year at 20°C
Operating Conditions
- Operating Temperature Range
- -60°C to +85°C
- Maximum Airtightness Temperature
- Up to 110°C
Physical Attributes
- Standard Cell Size
- 1/2 AA (14250)
- Casing Material
- Stainless Steel Container
- Electrolyte
- Non-flammable electrolyte
Certifications & Compliance
- Safety Standards
- IEC 60086-4, EN 50020
- UL Recognition
- UL Certified (MH126009)
