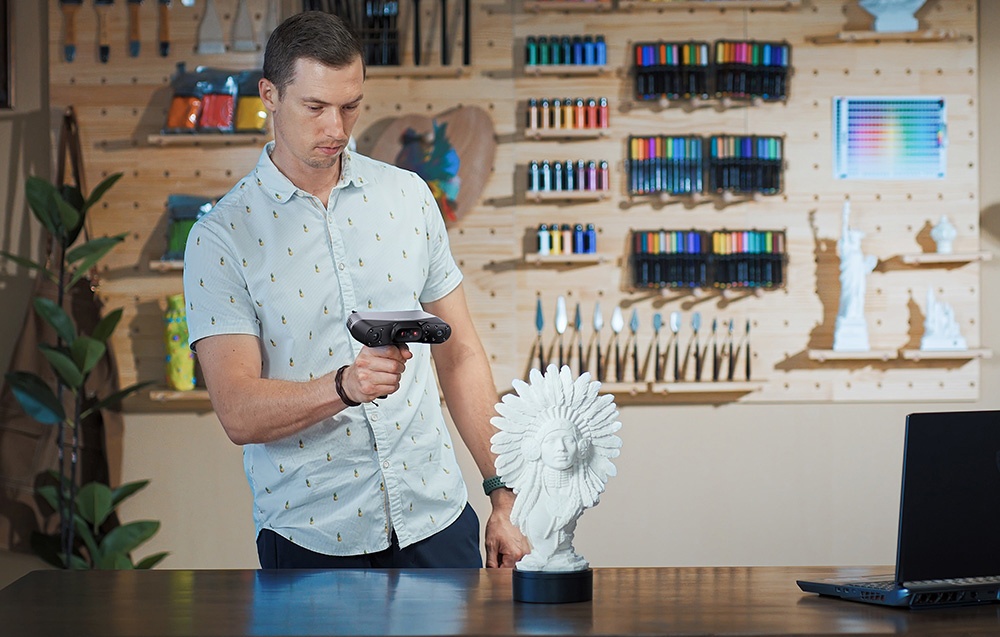

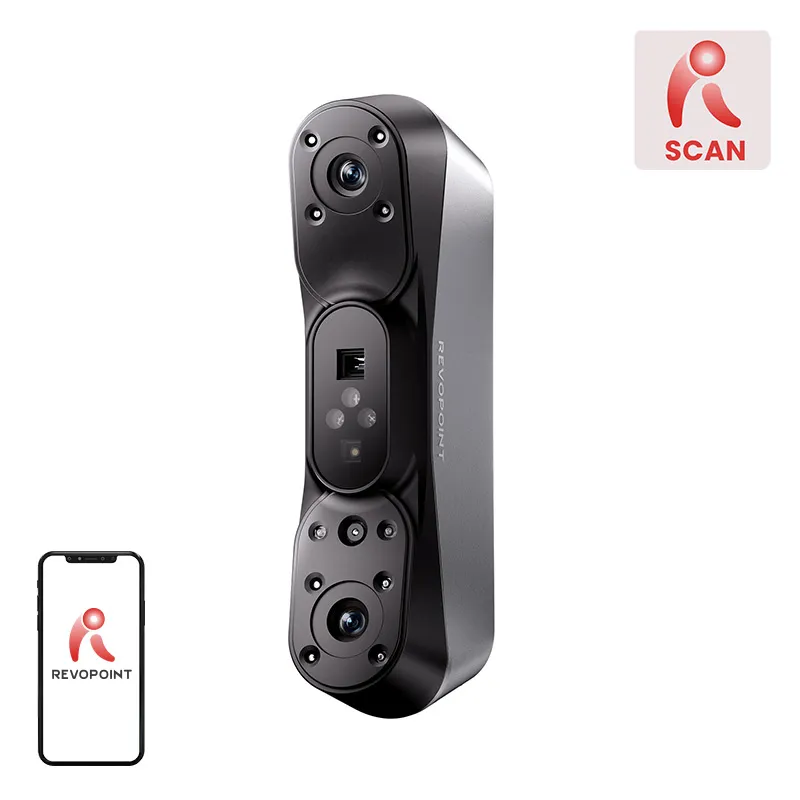

Revopoint POP 4 Premium 3D Scanner

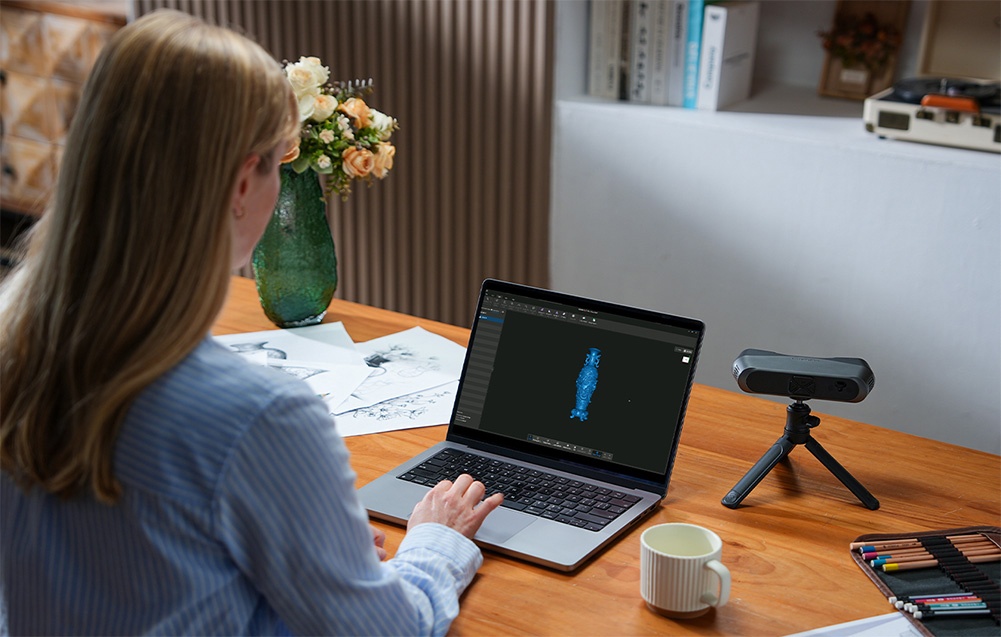

The Revopoint POP 4 is an advanced 3D scanner designed for both handheld and desktop use, featuring three data capture technologies: blue multi-line laser, full-field infrared structured light, and VCSEL projection. The device offers accuracy up to 0.03 mm in laser mode, RGB color scanning, real-time AI segmentation, and support for Gaussian Splatting models. With support for objects ranging from 10 × 10 × 10 mm to 2 × 2 × 2 m, Wi-Fi 6 and USB-C connectivity, and compatibility with Windows, macOS, Android, and iOS, the POP 4 is ideal for product design, reverse engineering, quality control, object digitization, and preparing models for 3D printing.

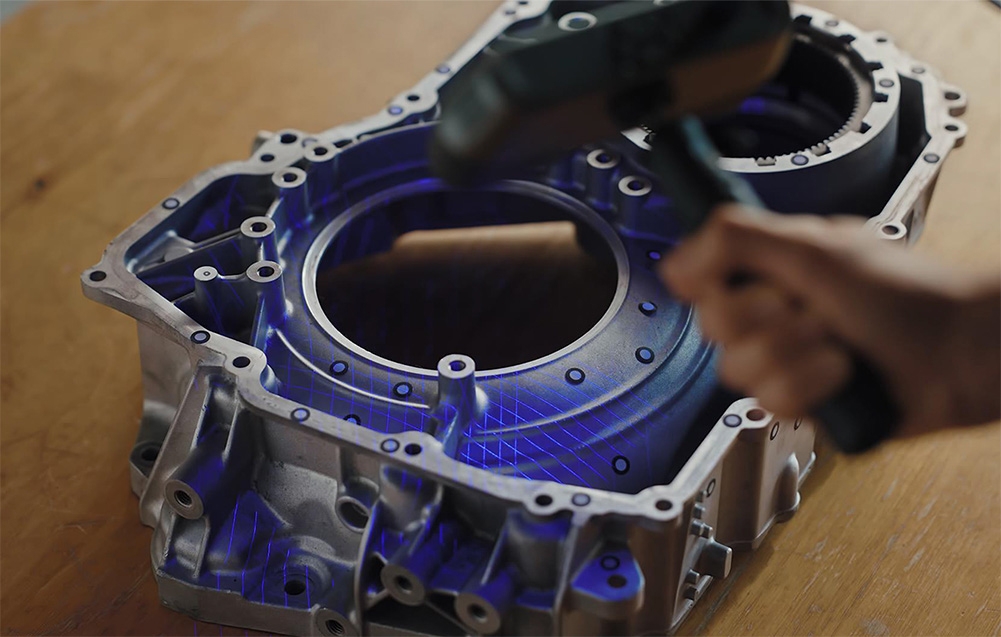

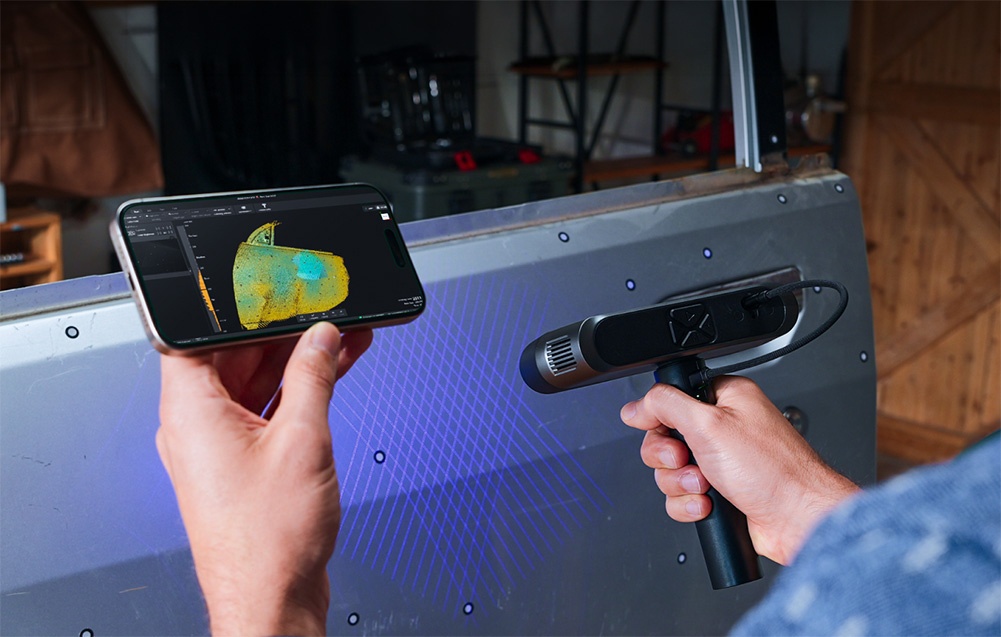

The scanner utilizes three independent data capture technologies, allowing you to select the appropriate mode for the type of object. The multi-line laser mode with 30 crosshairs is designed for scanning technical components and surfaces requiring high accuracy. Full-Field HD, which uses infrared structured light, allows for convenient scanning of faces, figures, and objects without the need for markers. VCSEL mode is optimized for larger objects and fieldwork, enabling fast data capture from a greater distance.

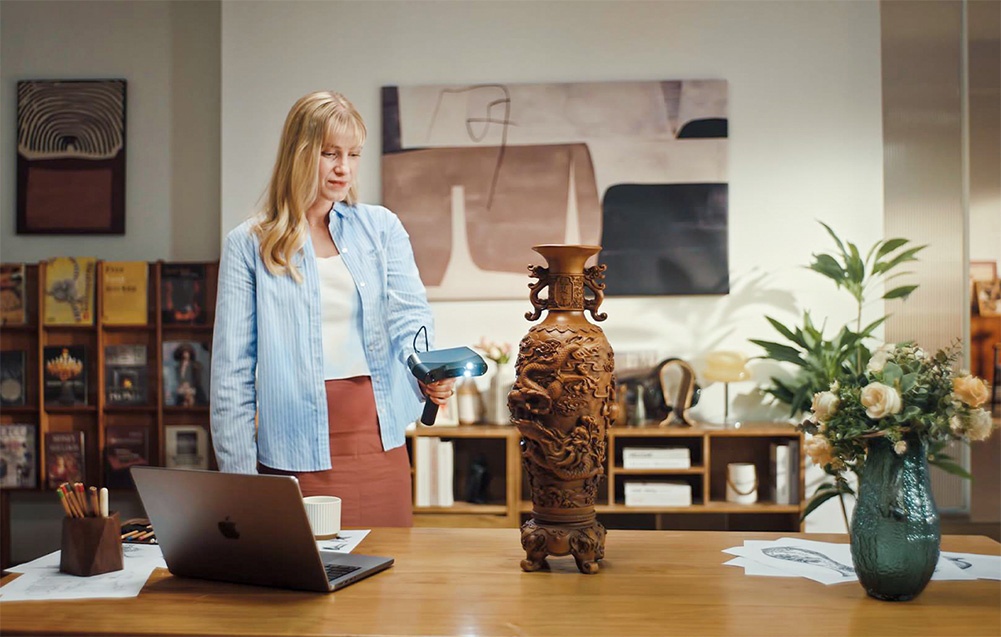

POP 4 is equipped with Real-Time AI Segmentation, which automatically analyzes the scanned scene during operation. AI algorithms recognize the object and immediately remove the background, work surface, and other unnecessary elements of the environment. The system can also detect hands holding the scanned object and remove them from the model without additional user intervention. This results in significantly cleaner models right from the scanning stage, reducing the time needed for post-processing.

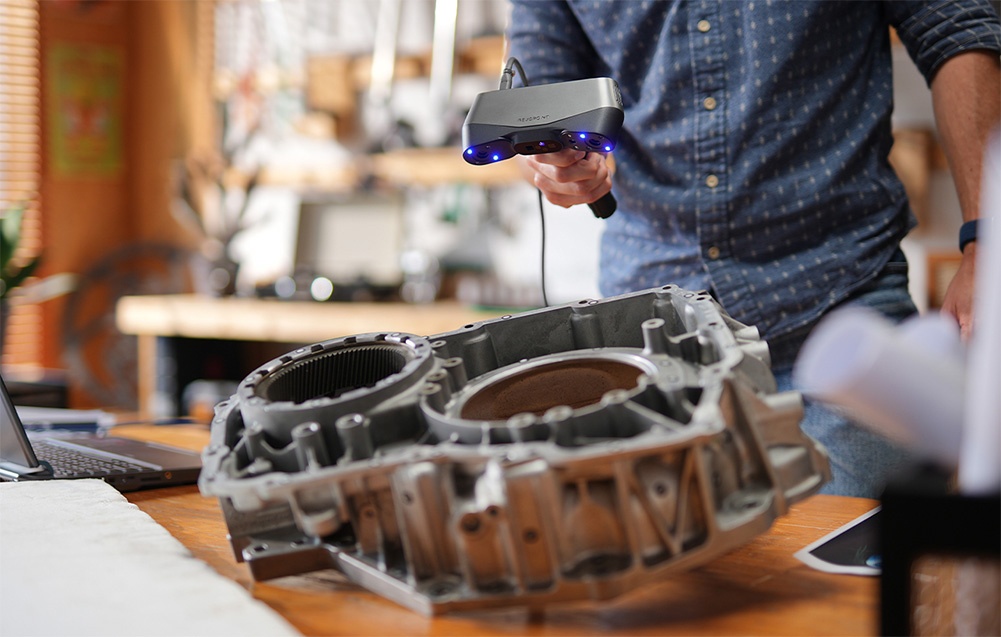

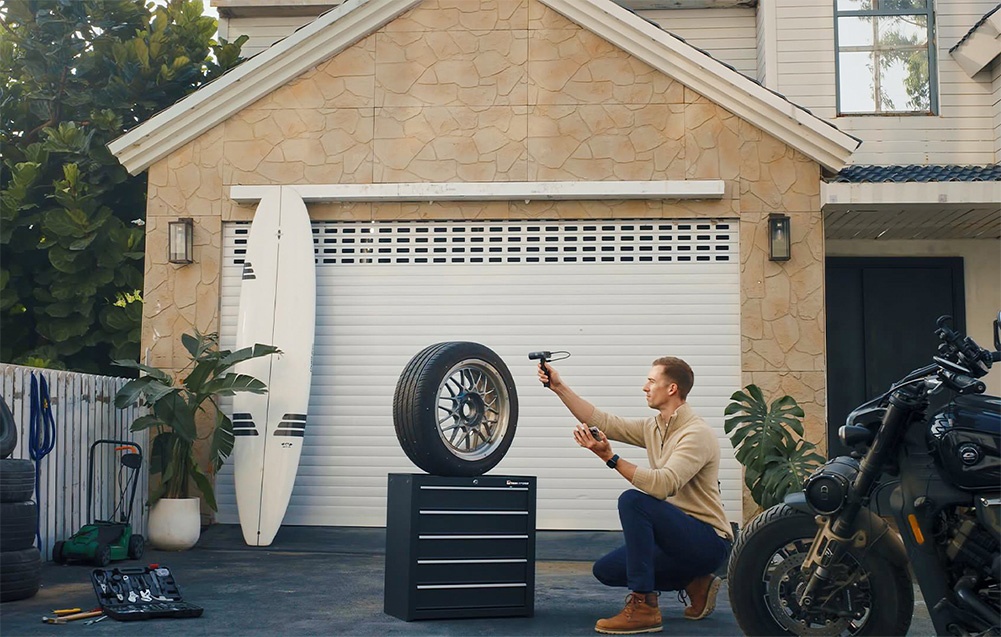

The advanced laser projection system effectively captures many surfaces that traditionally pose challenges during 3D scanning. The POP 4 handles dark objects, mechanical parts, and many shiny materials well without the need for a matte spray. For transparent or highly reflective surfaces, the manufacturer still recommends using a dedicated scanning spray to achieve the best results.

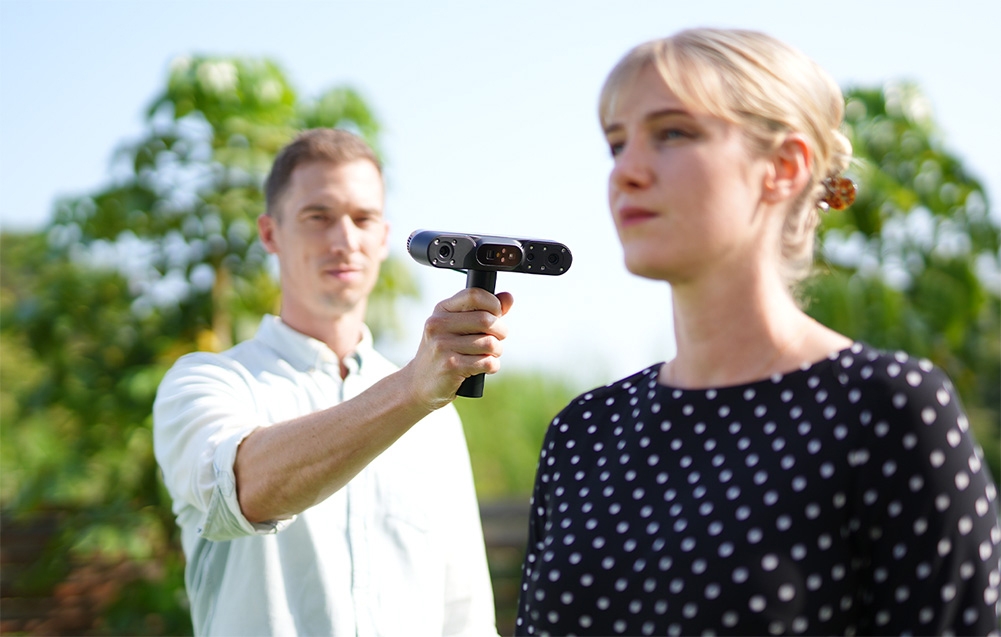

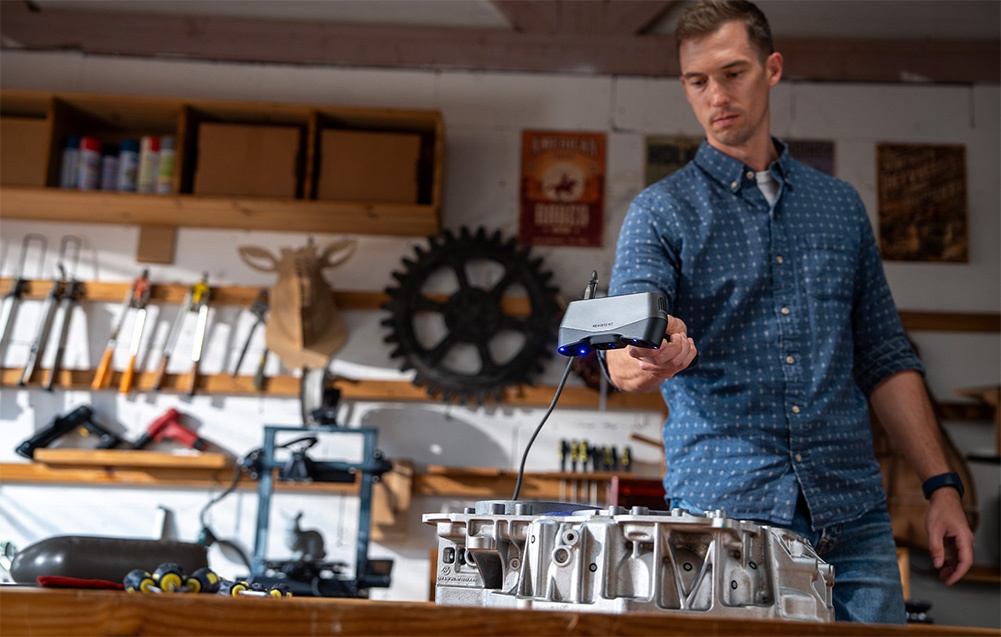

The POP 4 allows you to adjust the working distance to suit the task at hand. In multi-line laser mode, scanning is possible from a distance of 200 to 400 mm, which facilitates the capture of fine details. Full-Field HD and Hybrid HD modes operate within a range of 250 to 500 mm. The greatest range is offered by VCSEL technology, which allows scanning from a distance of 300 to 800 mm, making it easier to digitize larger objects and human figures.

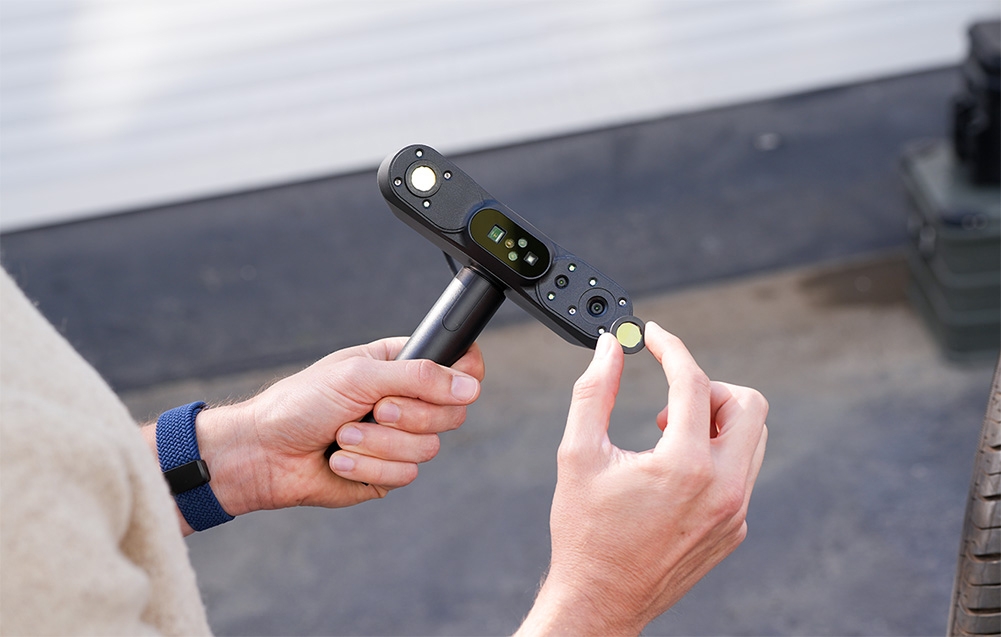

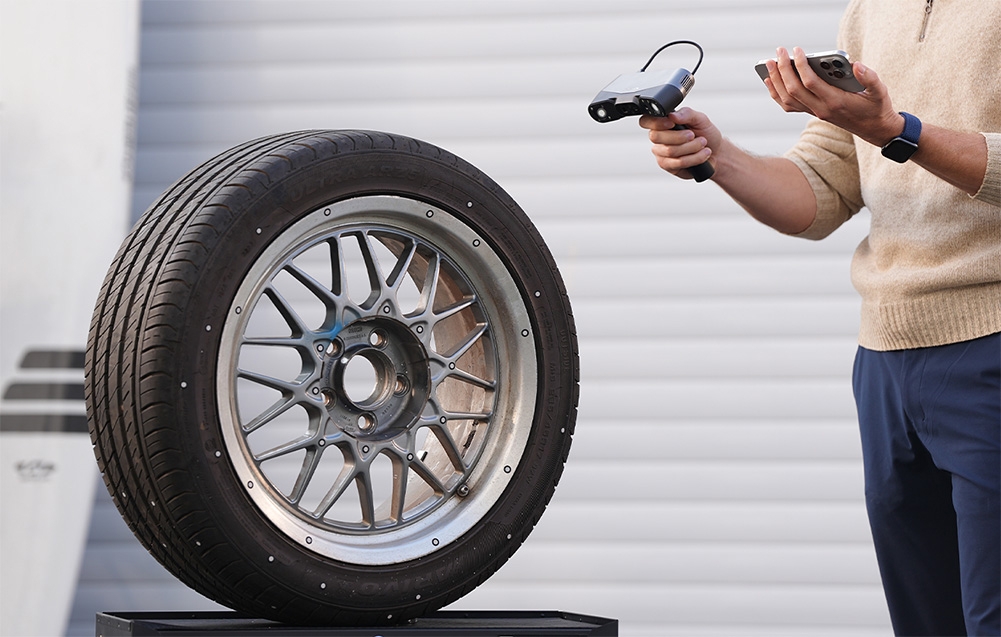

The Revopoint POP 4 KS Special Edition is an expanded version of the kit designed for users who frequently work outside the office or workshop. In addition to all the components found in the standard version, the special edition includes a handle with a 5500 mAh battery, a carrying case, and magnetic Outdoor Blue Filters. These filters allow for the use of the precise laser scanning mode even in lighting conditions reaching 100,000 lux, doubling its standard resistance to ambient light from 50,000 to 100,000 lux. As a result, detailed laser scans can also be performed in very bright daylight, which was previously the domain of the VCSEL mode. This equipment increases the kit’s mobility and makes it easier to carry out field projects requiring the highest accuracy in detail reproduction.
