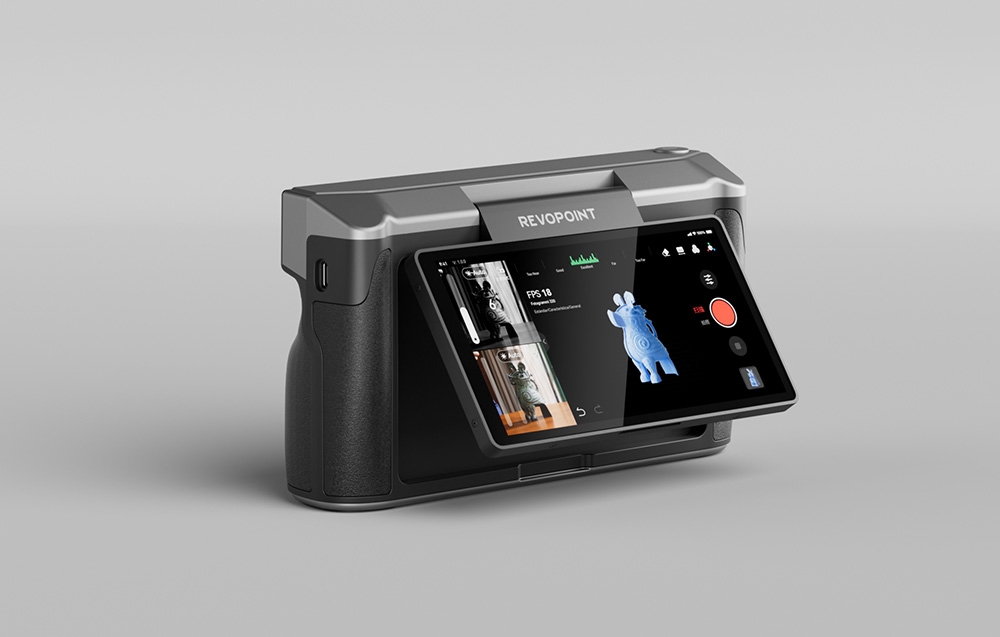

Revopoint Miraco Pro 3D Scanner

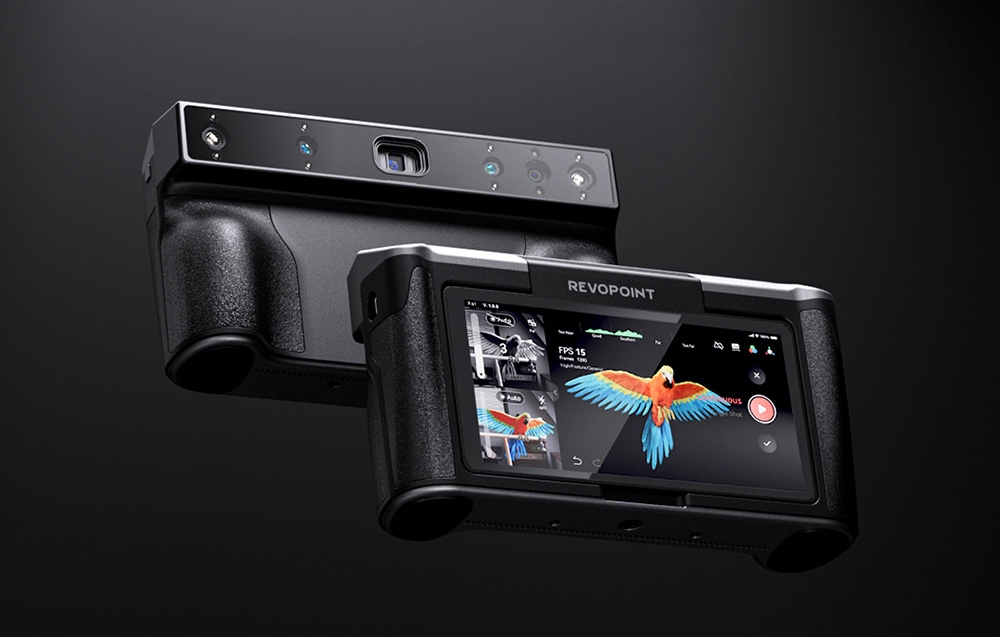

Immerse yourself in a new era of mobile 3D scanning with the Revopoint Miraco Pro, an ultralight and fully wireless scanner that runs continuously for up to two hours on a single charge. The four-camera depth system allows you to switch seamlessly between fine detail mapping (0.02 mm) and high-speed scanning of large objects (0.2 mm), available in Single Shot and Continuous Shot modes. A powerful 2.8GHz octa-core processor, 32GB of RAM and 256GB of internal memory accommodate up to 10,000 frames of scans without color and up to 8,000 frames in color, while a 6-inch AMOLED 2K screen with 180° adjustment and advanced post-processing features allow you to work without a computer. Photorealistic colors are provided by a 48MP RGB camera, while a 9-axis IMU, IP45 certification and Wi-Fi 6 guarantee reliability in all conditions. Discover how easy it is to transfer reality to the digital world!

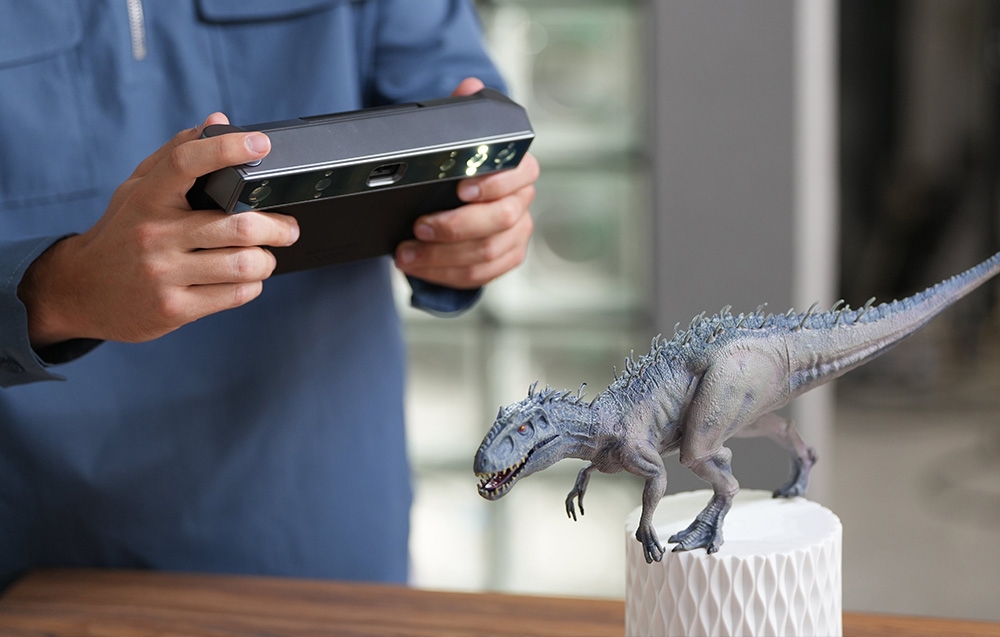

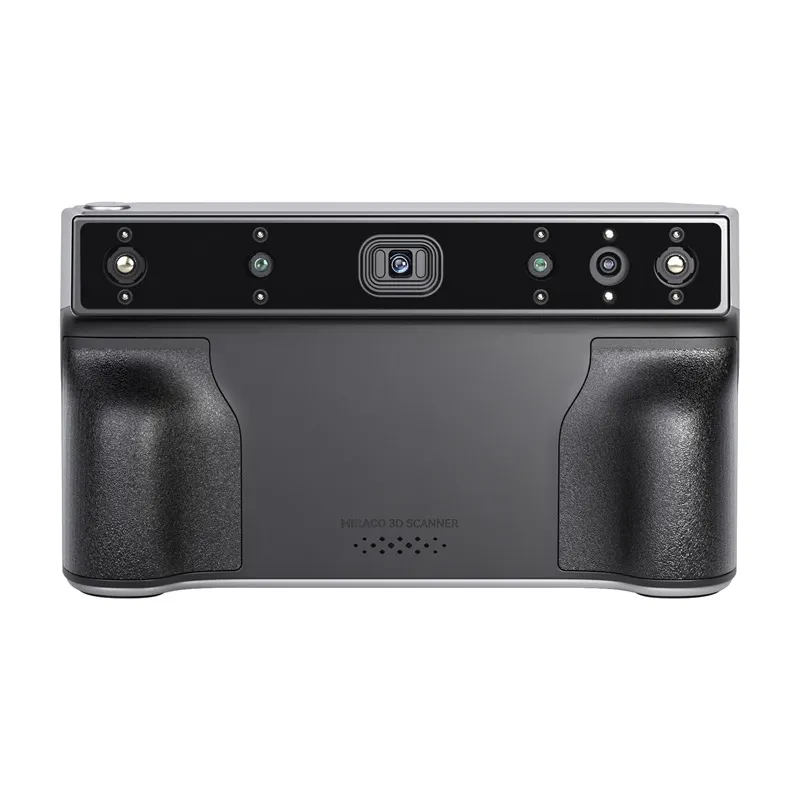

With its Quad Depth Camera system, Miraco seamlessly switches between capturing the smallest features (for example, a 33 × 10 × 10 mm screw) and imaging large objects (such as a 600 × 138 × 220 mm muffler). This dynamic combination allows the scanner to maintain surgical precision to as much as 0.02 mm in a single shot, while scanning larger forms to within 0.2 mm, without having to change equipment or prepare different modes.

Miraco is equipped with an 8-core 2.8 GHz processor, 32 GB of RAM (random-access memory), and a 256 GB hard drive, allowing you to store up to 10,000 grayscale scan frames and up to 8,000 color scan frames. Advanced point cloud processing and model editing features are available on the device—you don’t need a computer to view the scan results. Everything is displayed on a 6-inch 2K AMOLED screen (Active-Matrix Organic Light-Emitting Diode, an advanced display technology that uses organic light-emitting diodes), which you can adjust by 180°, adapting the frame to any measurement situation.
