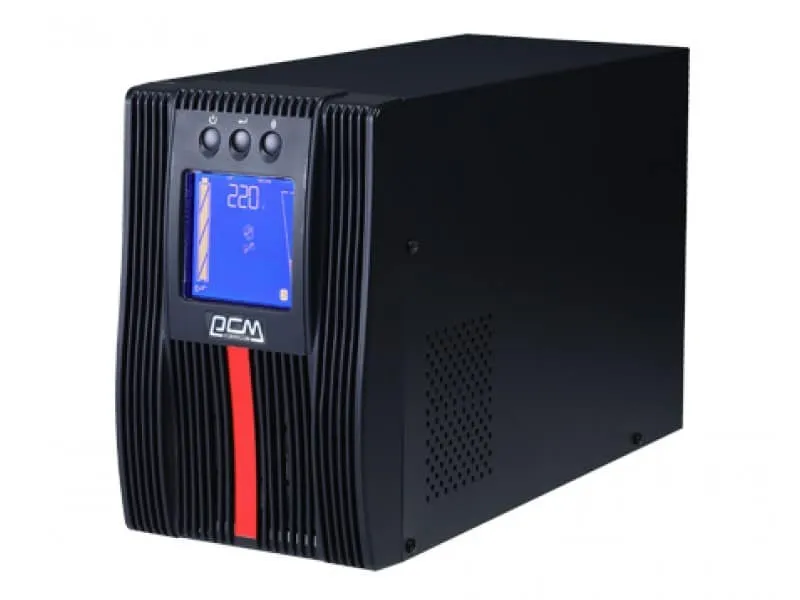

POWERCOM UPS MACAN MAC-3000 ON-LINE - Description
Ensure unparalleled power protection for your vital IT and electronic equipment with the POWERCOM UPS MACAN MAC-3000 ON-LINE. Engineered with true on-line double conversion technology, this UPS delivers a continuous, pure sine wave output, completely isolating your connected devices from mains power fluctuations and disturbances. With a robust 3000VA/3000W capacity, the MAC-3000 is the ideal solution for safeguarding servers, networking gear, medical equipment, and other mission-critical applications in Cyprus.
Key Features
- True On-Line Double Conversion: Provides the highest level of power protection by continuously regenerating clean, stable power, ensuring zero transfer time during outages.
- Pure Sine Wave Output: Delivers pristine power quality, essential for sensitive electronics and equipment that demand a perfect sine wave to operate reliably.
- High Power Factor (1.0): Maximizes usable power, allowing the UPS to support a full 3000W load from its 3000VA capacity, enhancing efficiency for larger power densities.
- ECO Mode Efficiency: Features an energy-saving ECO mode with efficiency greater than 94%, reducing operational costs and environmental impact.
- Comprehensive Protection: Guards against overload, surges (IEC 61000-4-5 Level 3), short circuits, and all forms of power irregularities.
- User-Friendly Interface: Equipped with a clear Diagram LCD display for easy monitoring of UPS status and parameters.
- Flexible Connectivity: Includes RS232 and USB (B-type) communication ports for seamless integration with power management software, with an optional SNMP slot for network monitoring.
- Cold Start Function: Allows the UPS to power on directly from its batteries, even without mains power, providing immediate backup when needed.
POWERCOM UPS MACAN MAC-3000 ON-LINE - Specifications
General
- Brand
- POWERCOM
- Model
- MAC-3000
- Capacity (VA)
- 3000 VA
- Capacity (Watts)
- 3000 W
- Form Factor
- Tower Type
- Phase
- Single Phase
- Energy Saving
- Yes (ECO Mode Efficiency > 94%)
Input
- Input Voltage
- 208 / 220 / 230 / 240 VAC
- Voltage Range
- 180 - 276 VAC (< 100% Load)
- Frequency Range
- 50 / 60 Hz (Auto Sensing)
- Power Factor
- > 0.97
- Cold Start
- Yes
Output
- Rated Power Factor
- 1.0
- Waveform
- Pure Sine Wave
- Output Voltage
- 208* / 220 / 230 / 240 VAC ± 2%
- Output Frequency
- 50 / 60 Hz ± 0.25 Hz
- Transfer Time
- 0 ms
- Harmonic Distortion
- ≤ 2.5% THD at Linear Load
- Crest Factor
- 3 : 1
- EPO Function
- Option
Protection
- Overload (Line Mode)
- 105% - 120% for 30 seconds; 121% - 150% for 10 seconds
- Overload (Battery Mode)
- 101% - 109% for 10 seconds; 110% - 120% for 3 seconds
- Surge Protection
- IEC 61000-4-5 Level 3
- Bypass
- Internal Bypass (Automatic and Manual)
- Short Circuit Protection
- UPS Output Cut Off Immediately
Battery
- Type
- 12V 9Ah
- Quantity
- 6
- Typical Recharge Time
- 4 Hr to 90%
- External Battery Module
- Option
- External Battery Connector
- Option
Management & Communication
- LCD Control Panel
- Yes (Diagram LCD)
- Communication Ports
- RS232, USB (B-type)
- SNMP Slot
- Option
- Audible Alarms
- Yes
