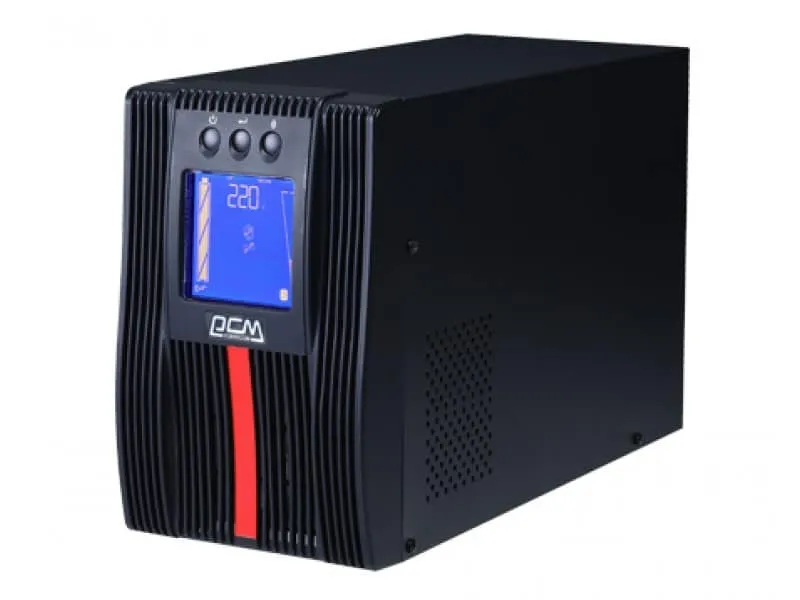

POWERCOM UPS MACAN MAC-2000 ON-LINE - Description
The POWERCOM MACAN MAC-2000 is an enterprise-grade on-line double-conversion UPS designed to deliver continuous, pure sine wave power to critical IT environments, workstations, network closets, and high-end audio/video equipment. By isolating connected hardware from utility power anomalies, it guarantees zero transfer time to battery during grid failures, voltage sags, or electrical surges.
Key Features
- True Double-Conversion Topology: Continuously converts incoming AC to DC and back to filtered AC, ensuring clean, regulated power with zero transfer time (0 ms) to battery backup.
- Pure Sine Wave Output: Provides optimal electrical compatibility with active PFC power supplies, sensitive medical equipment, and mission-critical servers.
- High Capacity Protection: 2000VA rating engineered to handle demanding electrical loads with superior efficiency and an advanced ECO mode for energy savings.
- Interactive LCD Display: Real-time monitoring of load levels, battery capacity, input/output voltage, and operational status at a glance.
- Comprehensive Management: Integrated USB and RS-232 communication ports, plus an intelligent expansion slot for optional SNMP network monitoring cards.
- Advanced Battery Care: Intelligent multi-stage battery charging prolongs battery lifespan and optimizes recharge cycles.
POWERCOM UPS MACAN MAC-2000 ON-LINE - Specifications
General
- Brand
- POWERCOM
- Model
- MACAN MAC-2000
- SKU
- OS-MAC-2000
- UPS Topology
- On-Line Double Conversion
- Form Factor
- Tower
Power Ratings
- Apparent Power
- 2000 VA
- Active Power
- 2000 W
- Power Factor
- 1.0
- Waveform Type
- Pure Sine Wave
- Transfer Time
- 0 ms (AC to DC / Inverter to Bypass)
Input Characteristics
- Nominal Voltage
- 208 / 220 / 230 / 240 VAC
- Input Voltage Range
- 110 - 300 VAC (load dependent)
- Frequency Range
- 44 - 66 Hz (Auto-sensing)
Output Characteristics
- Output Voltage
- 208 / 220 / 230 / 240 VAC (Selectable)
- Voltage Regulation
- ±1%
- Output Frequency
- 50 / 60 Hz ±0.1 Hz (Battery Mode)
Battery & Runtime
- Battery Type
- Sealed Lead-Acid, Maintenance-Free
- DC Voltage
- 48 V / 72 V (Internal Configuration)
- Typical Recharge Time
- 4 hours to 90% capacity
Connectivity & Management
- Interface Ports
- 1 x USB Type-B, 1 x RS-232
- Expansion Slot
- Intelligent Slot for optional SNMP / Web Card
- Control Panel
- Multifunction LCD Status Display & Audible Alarms
