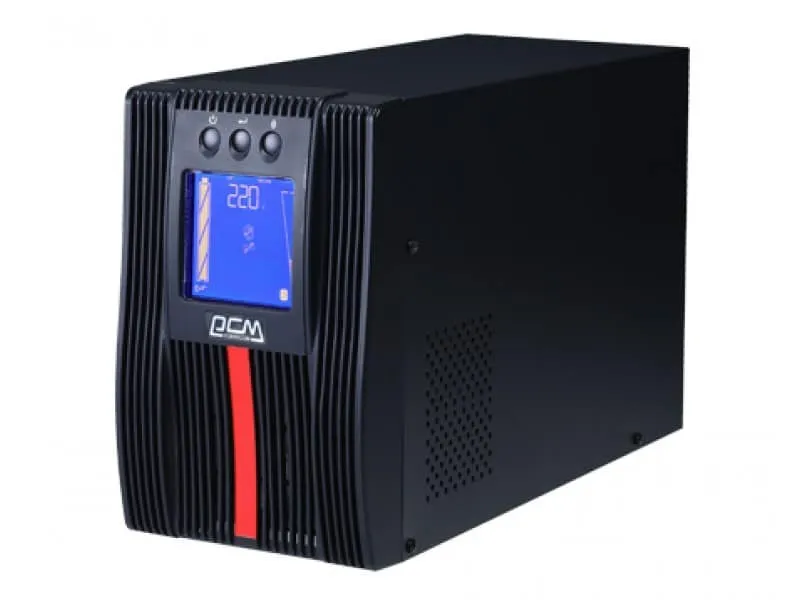

POWERCOM UPS MACAN MAC-1000 ON-LINE - Description
The POWERCOM MACAN MAC-1000 is an advanced On-Line double-conversion Uninterruptible Power Supply engineered to provide continuous, pristine electrical power to mission-critical equipment. Designed for IT environments, enterprise servers, telecommunications, and laboratory instrumentation, the MAC-1000 isolates connected devices completely from utility grid fluctuations, voltage spikes, brownouts, and electrical noise.
Key Features
- True On-Line Double Conversion: Delivers continuous pure sine wave power with zero transfer time (0 ms) from mains to battery mode, preventing data corruption and hardware failure.
- High Output Power Factor: Optimised efficiency ensures maximum active power delivery to support modern, high-density computing loads.
- Interactive LCD Control Panel: High-visibility front panel provides real-time metrics on load capacity, battery charge, input/output voltage, and operating modes.
- Intelligent Battery Care: Multi-stage charging maximizes battery lifespan and minimizes recharge times, supported by cold-start and hot-swappable battery capability.
- ECO Mode Operation: High-efficiency energy-saving mode cuts operational costs and thermal dissipation during stable grid conditions.
- Comprehensive Connectivity & Management: Equipped with standard USB and RS-232 ports, an intelligent expansion slot for optional SNMP network cards, and Emergency Power Off (EPO) support.
Ideal For
Small-to-medium business data centers, network server racks, telecom systems, high-end workstations, and sensitive diagnostic or retail point-of-sale infrastructure demanding uninterrupted reliability.
POWERCOM UPS MACAN MAC-1000 ON-LINE - Specifications
General
- Brand
- POWERCOM
- Series
- MACAN
- Model
- MAC-1000
- Part Number (SKU)
- OS-MAC-1000
- UPS Topology
- On-Line Double Conversion
- Form Factor
- Tower
Power & Capacity
- Capacity (VA)
- 1000 VA
- Capacity (Watts)
- 1000 W
- Power Factor
- 1.0
- Output Waveform
- Pure Sine Wave
- Nominal Input Voltage
- 208 / 220 / 230 / 240 VAC
- Input Frequency Range
- 40 Hz – 70 Hz (Auto-Sensing)
- Output Voltage Regulation
- ±1%
- Transfer Time
- 0 ms (Mains to Battery / Inverter to Bypass)
Battery & Runtime
- Battery Type
- Sealed, Maintenance-Free Lead-Acid (VRLA)
- Battery Configuration
- 12V / 9Ah
- Typical Recharge Time
- 4 hours to 90% capacity
- Cold Start Function
- Yes
Connectivity & Outlets
- Output Receptacles
- 4 x IEC C13
- Communication Ports
- 1 x USB Type-B, 1 x RS-232
- Expansion Slot
- Intelligent Slot for SNMP/Web Card
- Emergency Power Off (EPO)
- Yes
Monitoring & Management
- Display Interface
- Multifunction LCD Display + LED Status Indicators
- Audible Alarms
- Battery Mode, Low Battery, Overload, UPS Fault
Physical Attributes
- Dimensions (W x D x H)
- 144 x 399 x 228 mm
- Net Weight
- 10.6 kg
- Acoustic Noise Level
- < 50 dBA at 1 meter
- Operating Temperature
- 0°C to 40°C
