POP3 PLUS Advanced Edition 3D SCANNER REVOPOINT
- Single-frame Accuracy Up to 0.08 mm
- Up to 18 fps Scanning Speeds
- Up to 2× Optical Zoom
- New Global Marker Tracking Mode
- HD RGB Camera Better Color Capture
- 9-axis IMU
Technical Specification
Designed for smooth, frustration-free scanning, the POP 3 Plus features a built-in 9-axis IMU (Inertial Measurement Unit). This hardware acts as an internal stabilizer, automatically detecting and skipping "faulty" frames caused by shaky hands or rapid movement, ensuring a seamless point cloud fusion. Additionally, the new Global Marker Tracking mode significantly improves the scanner's ability to track physical markers on large or featureless objects, reducing cumulative errors and increasing the volumetric accuracy of the final 3D mesh across its wide scan volume of 20mm to 2000mm.

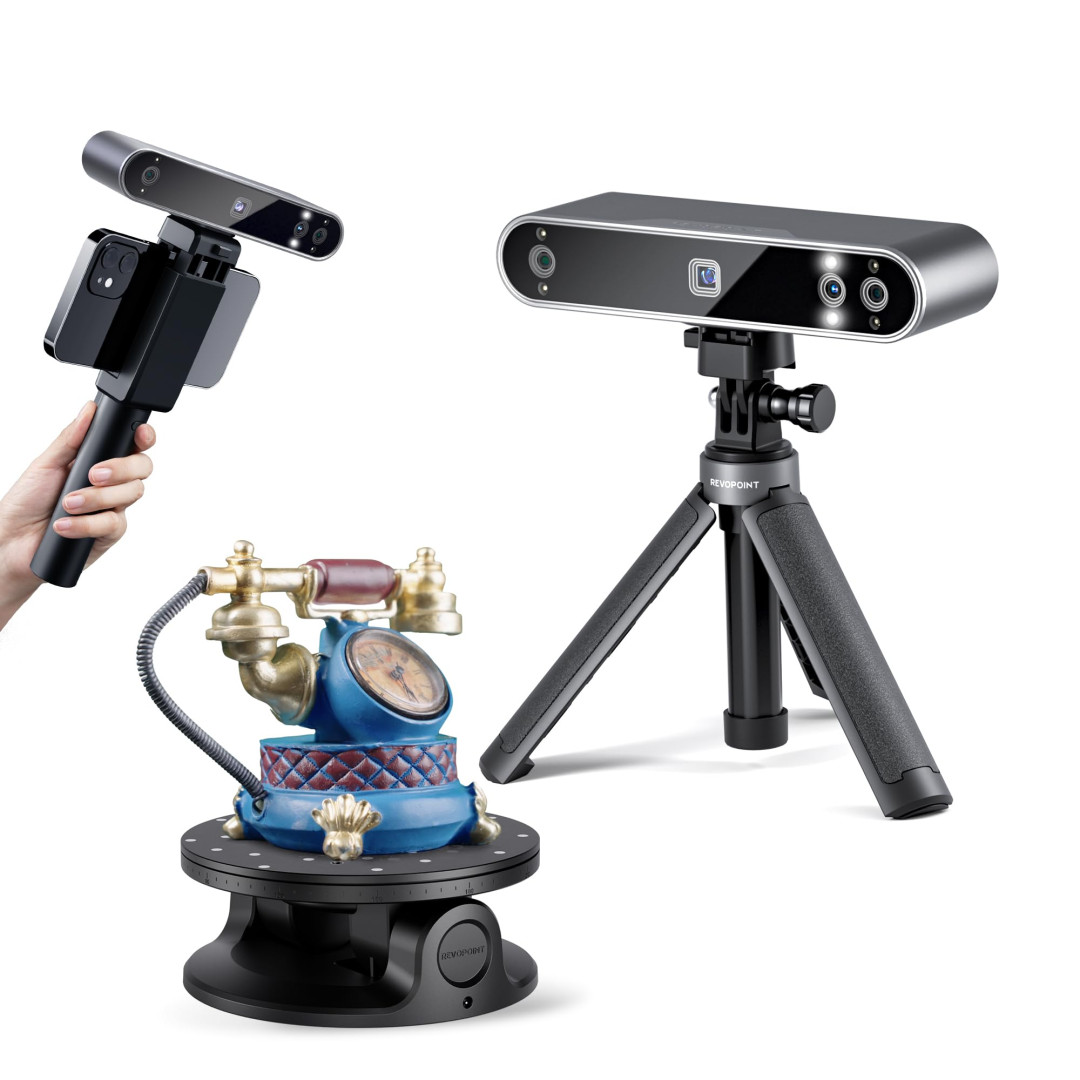

The Advanced Edition significantly upgrades the scanning experience by adding a Dual-axis Turntable and a Power Bank Handle to the standard kit. The dual-axis turntable allows for automatic tilting (+/- 30°) and rotation, which is essential for capturing "hidden" areas or deep recesses that a standard flat turntable might miss. The included Power Bank Handle provides portable power and an ergonomic grip, making it a complete workstation for both automated desktop scanning and mobile handheld use.

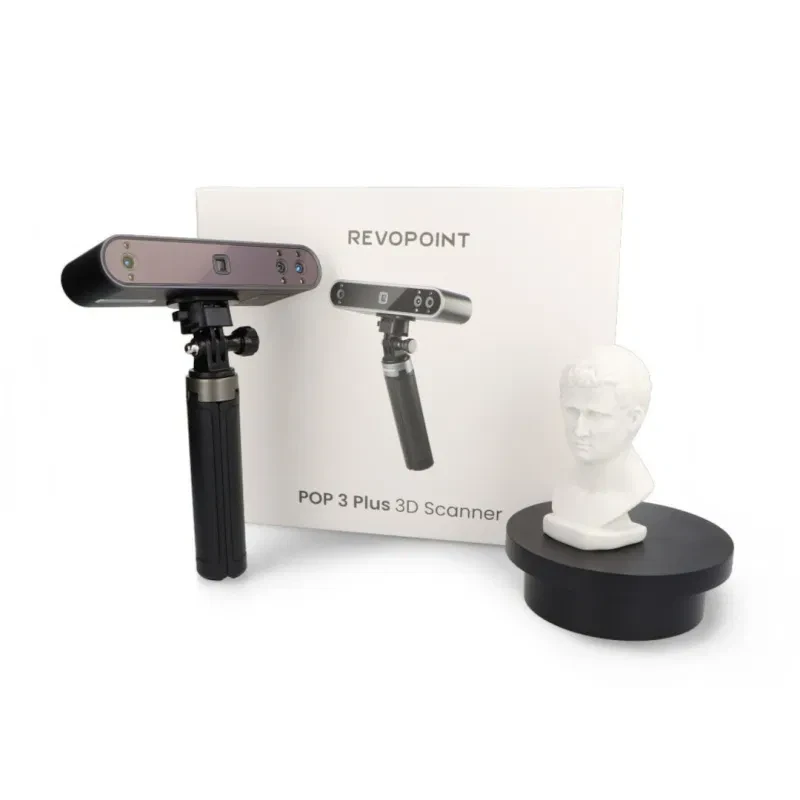

The Revopoint POP 3 Plus is the advanced evolution of the popular POP series, specifically engineered to bridge the gap between hobbyist tools and professional metrology. The standout feature of the "Plus" model is its new Optical Zoom Projector, which offers 1.5x and 2x magnification. This allows the scanner to focus its structured light more intensely on specific areas, delivering a 20% increase in accuracy and precision compared to its predecessor—reaching a single-frame accuracy of 0.08 mm and precision of 0.04 mm.
