POP 3 PLUS Standard Edition 3D SCANNER REVOPOINT

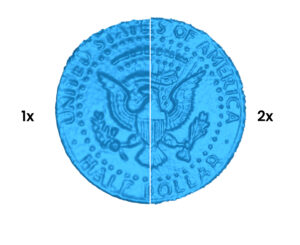

The Revopoint POP 3 Plus is the advanced evolution of the popular POP series, specifically engineered to bridge the gap between hobbyist tools and professional metrology. The standout feature of the "Plus" model is its new Optical Zoom Projector, which offers 1.5x and 2x magnification. This allows the scanner to focus its structured light more intensely on specific areas, delivering a 20% increase in accuracy and precision compared to its predecessor—reaching a single-frame accuracy of 0.08 mm.
Designed for smooth, frustration-free scanning, the POP 3 Plus features a built-in 9-axis IMU (Inertial Measurement Unit). This hardware acts as an internal stabilizer, automatically detecting and skipping "faulty" frames caused by shaky hands or rapid movement, ensuring a seamless point cloud fusion. Additionally, the new Global Marker Tracking mode significantly improves the scanner's ability to track physical markers on large or featureless objects, reducing cumulative errors and increasing the volumetric accuracy of the final 3D mesh.

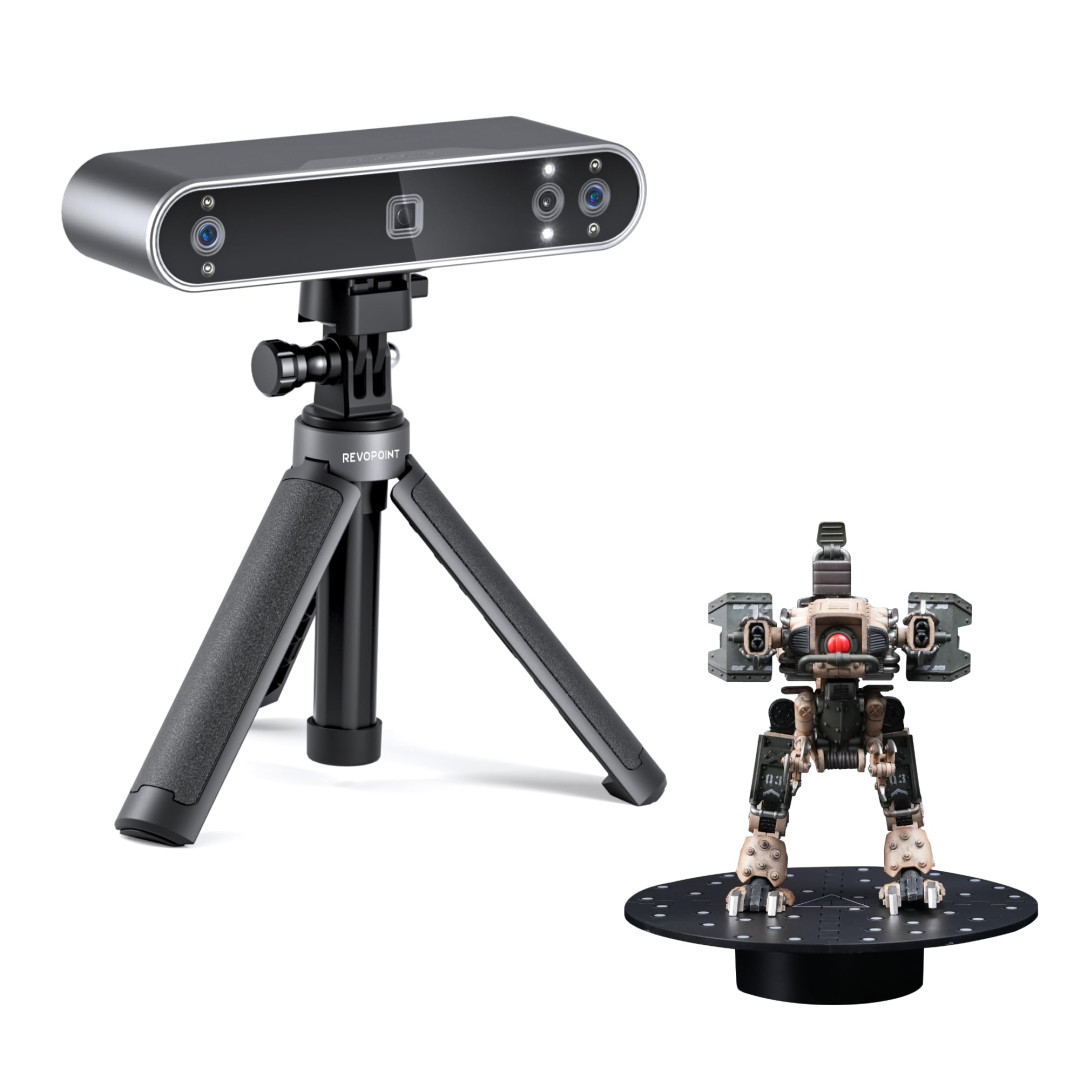

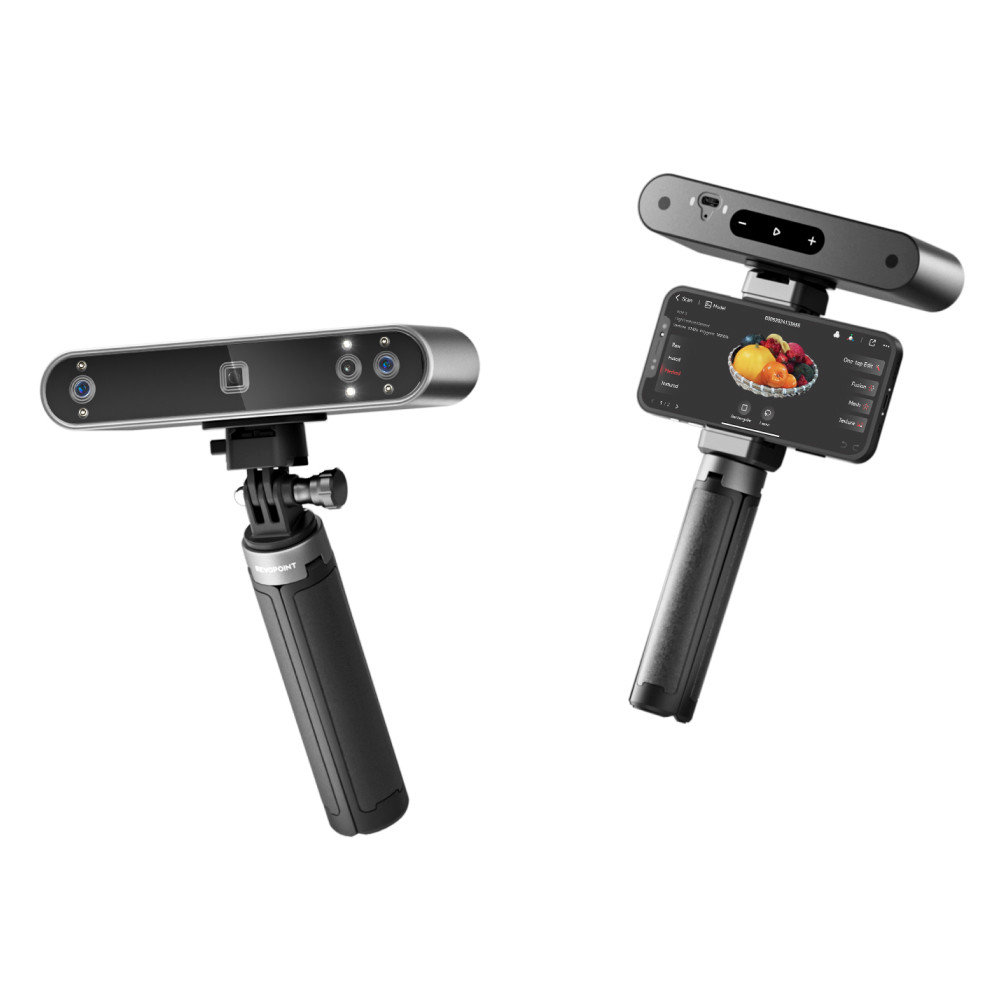

The scanner features an upgraded HD RGB camera with a larger aperture and a dual White LED flash system. This combination eliminates shadows and captures lifelike textures, making it ideal for creating digital twins, animation assets, or colorful 3D prints. The Standard Edition provides a complete out-of-the-box experience, including the 190g scanner, a Mini Turntable for automated desktop work, a tripod, and a high-precision lithographic calibration board. The system is fully cross-platform, supporting high-speed Wi-Fi 6 connectivity for Windows, macOS, Android, and iOS.
General
- Brand
- REVOPOINT
- Model
- POP 3 PLUS Standard Edition
- Scanner Type
- Handheld and Desktop
- Light Source
- Class 1 Infrared Light (Eye Safe)
- Scanning Environment
- Indoors and Outdoors
- Special Object Scanning
- Scanning spray required for transparent, dark, or reflective surfaces
Performance & Scanning Specs
- Single-frame Accuracy
- Up to 0.08 mm
- Single-frame Precision
- Up to 0.04 mm
- Calibration Accuracy
- Within 20 microns
- Scanning Speed
- Up to 18 fps
- Fused Point Distance
- Up to 0.05 mm
- Working Distance
- 150 mm ~ 400 mm
- Single Capture Area (Nearest)
- 61 x 68 mm @ 150 mm
- Single Capture Area (Furthest)
- 244 x 180 mm @ 400 mm
- Minimum Scan Volume
- 20 x 20 x 20 mm
- Maximum Scan Volume
- 2000 x 2000 x 2000 mm
- Angular Field of View (H × V)
- 40 x 25°
- Tracking Methods
- Feature, Marker, Global Marker
Hardware & Lighting
- Internal CPU
- 2-core, 1.6GHz
- Position Sensor
- 9-axis IMU
- Auxiliary Lighting
- Infrared Fill Lights, White Flash LEDs
- Control Buttons
- 3 Physical Buttons
Connectivity & Power
- Connector Type
- USB Type-C
- Wireless Connectivity
- Wi-Fi 6, Bluetooth 4.1
- Power Requirements
- DC 5V, 1A
Physical Attributes
- Dimensions (L x W x H)
- 153 x 45 x 29 mm
- Weight
- 190 g
System Requirements
- Compatible OS
- Windows 10/11 (64-bit), Android, iOS, macOS 11.0 or better
- Minimum PC Specs (Windows)
- CPU: Intel i7 12th Gen or better | RAM: ≥ 16GB
- Minimum PC Specs (macOS)
- CPU: Apple M1 Pro or better | RAM: ≥ 8GB
- Recommended PC Specs (Windows)
- CPU: Intel i9 11th Gen or better | RAM: ≥ 32GB
- Recommended PC Specs (macOS)
- CPU: Apple M3 or better | RAM: ≥ 8GB
