PC GA DELL 5070 SFF I5-8500/1X8GB/M2-256GB/NO-ODD - Description

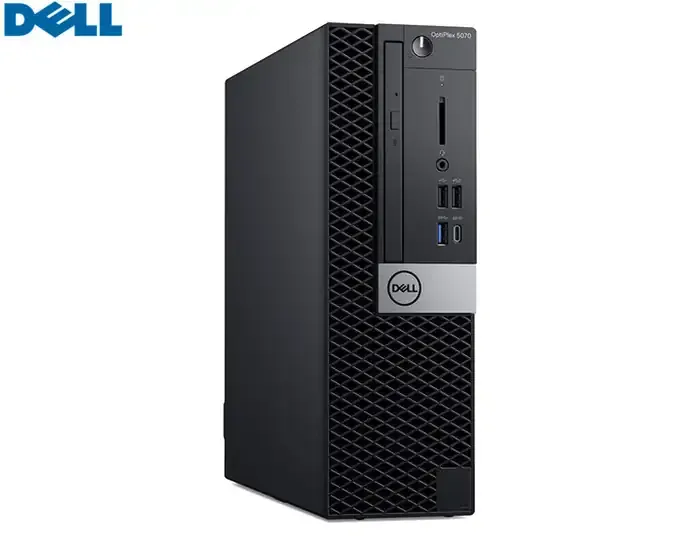

The Dell OptiPlex 5070 Small Form Factor (SFF) desktop is engineered to deliver reliable, enterprise-grade computing power without cluttering your workspace. Designed for professionals, commercial offices, and academic institutions, this compact PC combines robust performance with flexible expandability.
High-Efficiency Multitasking
Driven by the 8th Generation Intel Core i5-8500 six-core processor, the Dell 5070 handles intense workflows, extensive spreadsheets, and multitasking effortlessly. Paired with 8GB of responsive DDR4 memory (expandable up to 64GB across four DIMM slots) and a rapid 256GB M.2 SSD, you benefit from swift boot times and rapid data access.
Space-Saving Design with Full Connectivity
Despite its sleek, small-footprint chassis, this desktop does not compromise on connectivity. It features a modern front-facing USB 3.1 Gen 2 Type-C port, multiple high-speed USB 3.1 Type-A ports, Gigabit Ethernet, and dual DisplayPort outputs, enabling easy dual-monitor setups for enhanced workflow efficiency.
Key Features
- Processor: Intel Core i5-8500 (6 Cores, up to 4.10 GHz Max Turbo)
- Memory: 8GB DDR4 RAM (Expandable up to 64GB via 4 DIMM slots)
- Storage: 256GB M.2 Solid State Drive (SSD) for ultra-fast response
- Display Connectivity: 2 x DisplayPort connectors for multi-screen support
- Modern I/O: High-speed USB Type-C 3.1 Gen 2 alongside 9 standard USB ports
- Form Factor: Compact Small Form Factor (SFF) engineered for quiet, efficient operation
- Network: Integrated Intel I219-LM Gigabit Ethernet LAN
PC GA DELL 5070 SFF I5-8500/1X8GB/M2-256GB/NO-ODD - Specifications
General
- Brand
- DELL
- Series
- OptiPlex 5070
- Form Factor
- Small Form Factor (SFF)
- Part Number / SKU
- AL-1.109.418
Processor
- CPU Model
- Intel Core i5-8500
- Generation
- 8th Generation
- Cores / Threads
- 6 Cores / 6 Threads
- Base Frequency
- 3.00 GHz
- Max Turbo Frequency
- 4.10 GHz
- Chipset
- Intel Q370
Memory
- Installed Memory
- 8GB (1 x 8GB)
- Memory Type
- DDR4 SDRAM
- Memory Speed
- 2666 MHz
- Total Memory Slots
- 4 DIMM slots
- Maximum Memory Supported
- Up to 64GB
Storage & Drives
- Primary Storage
- 256GB M.2 SSD
- Storage Interface
- M.2 PCIe / NVMe
- Drive Bays
- 1 x 3.5" or 2 x 2.5" HDD, 1 internal slim ODD
- Optical Drive
- None (No-ODD)
Graphics & Audio
- Graphics Controller
- Integrated Intel UHD Graphics 630
- Audio
- Integrated High Definition Audio Codec
Connectivity & Ports
- Network Interface
- Intel I219-LM 10/100/1000 Gigabit Ethernet
- USB Ports
- 1 x USB Type-C 3.1 Gen 2 (Front), 5 x USB 3.1 Gen 1 Type-A (1 Front, 4 Rear), 4 x USB 2.0 Type-A (2 Front with PowerShare, 2 Rear)
- Video Outputs
- 2 x DisplayPort
- Audio Ports
- 1 x Universal Audio Jack, 1 x Line-out
- Ethernet
- 1 x RJ-45 LAN
Expansion Slots
- PCIe Slots
- 1 x PCIe x16 (Half Height), 1 x PCIe x4 (Half Height)
- M.2 Slots
- 1 x M.2 for storage (2280/2230), 1 x M.2 for wireless (2230)
Power & Dimensions
- Power Supply
- Standard 200W PSU
- Dimensions (H x W x D)
- 29.21 x 9.4 x 28.96 cm
- Weight
- 5.26 kg
