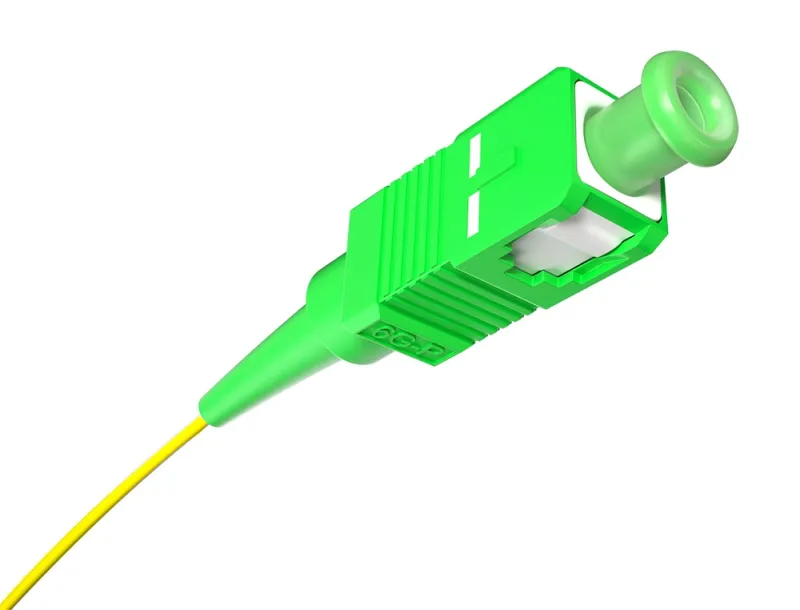

Opton Fiber Pigtail SC/APC SM 0.9mm G657A EasyStrip 1.0m - Description
The Opton Fiber Pigtail SC/APC SM 0.9mm G657A EasyStrip 1.0m (SKU: MS-23941) provides high-performance optical connectivity designed specifically for fusion splicing in distribution boxes, patch panels, and optical termination points. Featuring a factory-terminated and polished SC/APC connector, this singlemode pigtail ensures ultra-low return loss and maximum transmission efficiency.
Key Features
- Bend-Insensitive G.657.A Fiber: Features high flexibility with a reduced bending radius, minimizing signal loss in tight enclosures and high-density fiber management trays.
- EasyStrip Loose Tube Buffer: Specially designed 0.9mm jacket allows effortless, smooth stripping up to extended lengths without damaging the bare optical fiber.
- Precision SC/APC Connector: Angled Physical Contact (APC) polish ensures minimal back reflection and high return loss for sensitive high-speed networks and GPON/FTTH applications.
- Factory-Polished & Tested: Ensures consistent optical performance, low insertion loss, and dependable durability across telecom installations.
Opton Fiber Pigtail SC/APC SM 0.9mm G657A EasyStrip 1.0m - Specifications
General
- Brand
- OPTON
- Product Type
- Fiber Optic Pigtail
- SKU
- MS-23941
- Application
- FTTx, Telecom, Patch Panels, Splicing Enclosures
Optical Specifications
- Fiber Mode
- Singlemode (SM)
- Fiber Standard
- ITU-T G.657.A (Bend-Insensitive)
- Connector Type
- SC
- Polish Type
- APC (Angled Physical Contact)
Cable Construction
- Cable Diameter
- 0.9 mm
- Buffer Type
- EasyStrip (Loose Tube)
- Cable Length
- 1.0 m
