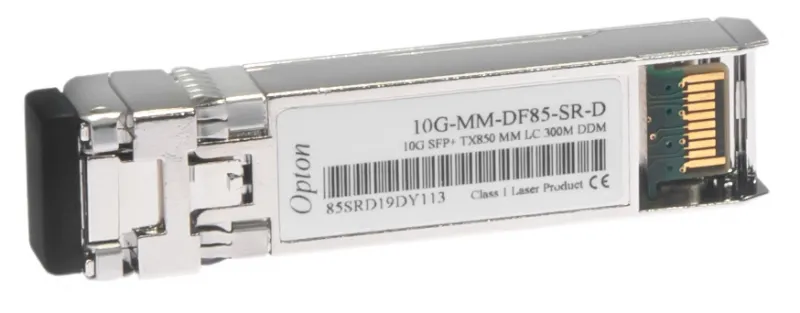

Opton 10G SFP+ Module MM Dual LC 300m

Upgrade your network infrastructure with the Opton 10G SFP+ Multimode Optical Transceiver Module (10G-MM-DF85-SR-D). Engineered for demanding data centers, enterprise server rooms, and campus networks, this pluggable optical transceiver offers fast, reliable 10 Gb/s throughput over multimode optical fiber.

High-Speed Multimode Performance

Equipped with dual LC/UPC connectors, this module separates transmission (Tx) and reception (Rx) channels across two fibers at an 850 nm wavelength. It supports distances of up to 300 meters using high-bandwidth OM3 or OM4 cabling, making it a reliable solution for short-reach inter-rack and intra-building interconnections.

Real-Time Diagnostic Monitoring

The integrated Digital Diagnostics Monitoring (DDM) interface allows network administrators to monitor real-time system metrics, including optical output power, optical input power, temperature, and supply voltage, ensuring proactive link management and maximum uptime.

Key Features

• High Bandwidth: Delivers continuous data transfer speeds up to 10 Gb/s.
• Dual LC/UPC Interface: Standard duplex LC optical interface for secure, low-loss connections.
• Extended Reach: Transmits up to 300 m on OM3/OM4 fiber (82 m on OM2, 33 m on OM1).
• DDM Support: Built-in digital diagnostics for real-time performance and fault monitoring.
• Standard Operating Range: Built for commercial deployments with a 0°C to 70°C operating window.
