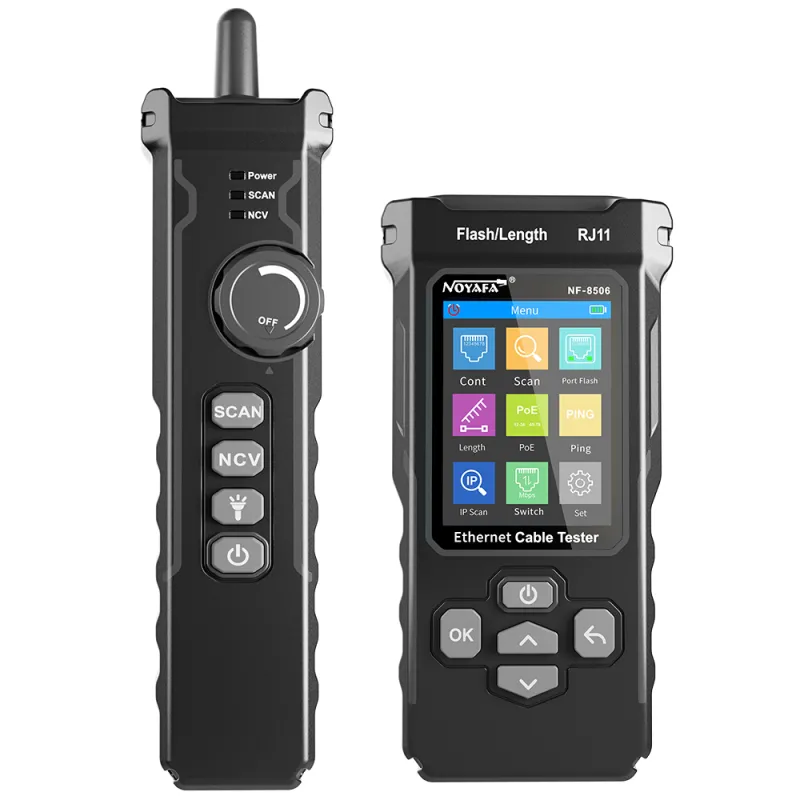

Noyafa Multi-Function Cable Tester with PoE Detection, Cable Length Measurement, Port Flashing, PING Testing & NCV Function NF-8506

The Noyafa NF-8506 Multi-Function Network Cable Tester is an all-in-one diagnostic and troubleshooting tool purpose-built for network engineers, IT technicians, and cabling contractors. Combining physical wire mapping with sophisticated active network diagnostics, the NF-8506 simplifies everyday installation, verification, and maintenance tasks on twisted-pair infrastructure.

Comprehensive Cable Verification & Length Measurement

• Precise Length Measurement: Accurately measures LAN cable length up to 200 meters, helping verify run distances and pinpoint breaks.
• Wiremap & Continuity Testing: Rapidly checks physical wire status across STP and UTP cables to identify open circuits, short circuits, and miswires.
• Dual Anti-Interference Scan Modes: Toggle between AC filter and Non-AC filter modes to trace cables smoothly and cleanly, even in electrically noisy server environments.

Advanced Network Diagnostics & PoE Analysis

• PoE Detection: Identifies which pins provide power, reads voltage levels accurately, and identifies PSE standards (IEEE 802.3af / 802.3at).
• PING & IP Scanning: Quickly verify network connectivity, packet loss, and identify active IP addresses operating on the local switch.
• Switch Port Testing & Hub Blink: Detects switch port speeds (10M/100M/1000M) and duplex modes (Full/Half), while the Hub Blink feature visually flashes switch port lights for effortless cable tracing.

Safety & Convenience in the Field

• NCV Voltage Detection: Built-in Non-Contact AC Voltage detection (50V–1000V) ensures operator safety around live circuits before servicing.
• Integrated Flashlight: Integrated LED torch assists with clean, confident troubleshooting in dark server racks and ceiling spaces.
