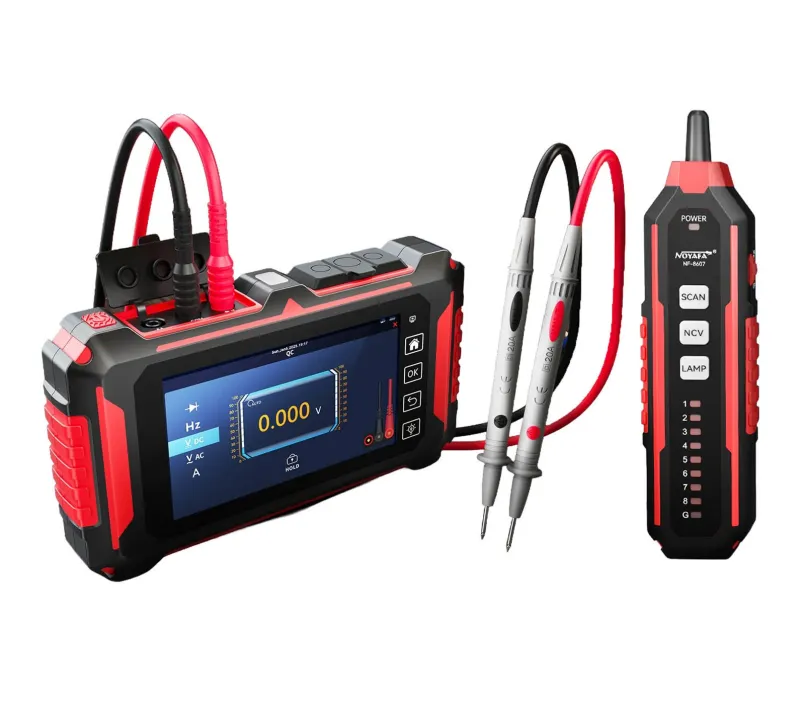

Noyafa Fiber & Network Tester with 150km OTDR, Full-protocol Network Analysis, PoE Testing, Ethernet Cable Verification, Multimeter NF-8607

The Noyafa NF-8607 represents the pinnacle of multi-functional field testing, engineered specifically for telecommunication engineers, ISP technicians, and network specialists who demand a single-device solution for both fiber optic and copper network infrastructure. Eliminating the need to carry multiple bulky diagnostic tools, this high-performance unit combines a long-range 150km Optical Time-Domain Reflectometer (OTDR), an optical power meter, visual fault locator, advanced copper Ethernet analyzer, and a digital multimeter into a single rugged field tester.

True 3-in-1 Comprehensive Testing Platform

Streamline your toolkit and lower equipment expenditure with an all-in-one diagnostic solution. The NF-8607 integrates fiber optic qualification, network diagnostics, and electrical troubleshooting, allowing field engineers to seamlessly transition between fiber backbone splicing, copper patch panel verification, and power distribution diagnostics without switching devices.

Long-Range 150km Dual-Wavelength OTDR

Equipped with dual-wavelength testing at 1310nm and 1550nm, the NF-8607 features both Auto and Expert OTDR modes alongside intuitive event mapping and breakpoint detection. Capable of testing spans up to 150 kilometers, it pinpoints splices, bends, macro-bends, and optical signal degradation with pinpoint accuracy, making it ideal for FTTH rollout, metro rings, and ISP backbone maintenance.

Precision Optical Power Meter & Visual Fault Locator

• Optical Power Meter (OPM): Calibrated across 10 wavelengths (850nm to 1650nm) with a wide dynamic range of -70 dBm to +10 dBm for accurate power verification.
• 10mW Visual Fault Locator (VFL): Emits a visible 650nm red laser with continuous and flashing modes for quick identification of breaks, bends, and faulty connectors with the naked eye.

Advanced Ethernet, PoE & Cable Diagnostics

• PoE Testing: Measures PoE voltage, power consumption, and power supply pin configurations for CCTV and VoIP installations.
• Protocol & IP Tools: Conduct IP scanning, PING latency tests, and utilize switch port flashing to rapidly identify drops in patch panels.
• Cable Length & Fault Mapping: Accurately measures CAT5 and CAT6 cable lengths between 5 and 300 meters and locates copper faults without dismantling runs.
• Full Digital Multimeter: Complete electrical analysis measuring AC/DC voltage, current, resistance, capacitance, and frequency.
