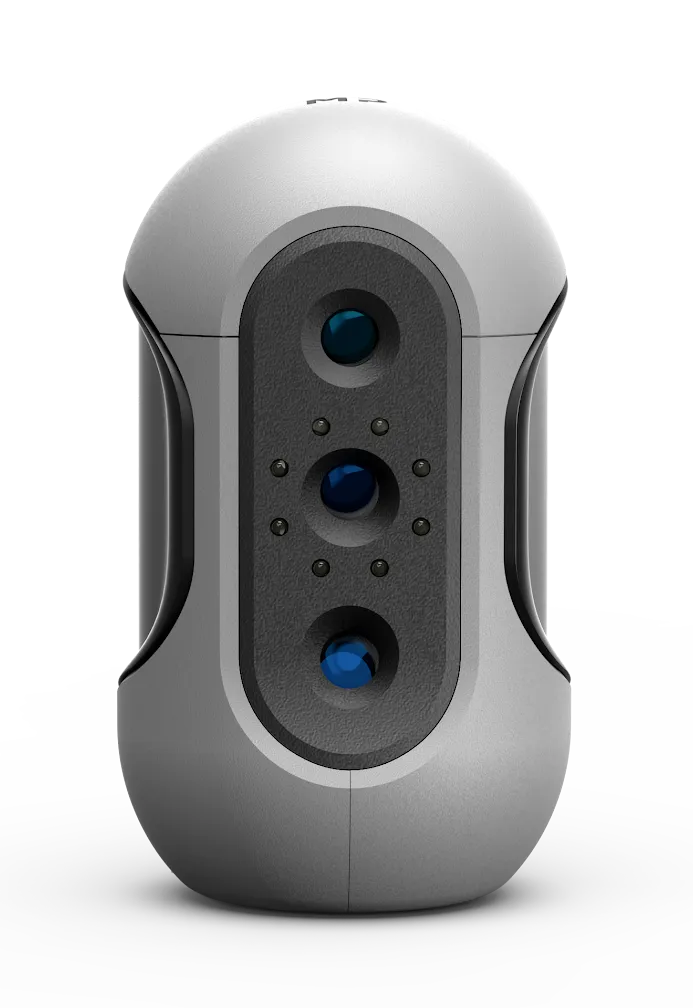

MOLE STANDARD 3D SCANNER 3DMAKERPRO
- Accuracy: 0.05mm
- Resolution: 0.1mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 150-400mm
- Single capture range: 200x100mm
- Typical object sizes: 15-1500mm
- Light source: NIR
- Color texture: Extended support
- USB interface: USB2.0
- Dimensions: 141x80x80mm
- Weight: 390g
- Output format:OBJ/STL/PLY
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Technical Specification
The 3DMakerPro Mole is a professional-grade handheld 3D scanner designed for high accuracy and seamless tracking. It achieves an impressive 0.05mm accuracy and 0.10mm resolution, making it a powerful tool for capturing intricate details on objects ranging from 15mm to 1500mm in size. The Standard Edition provides the core scanning unit and essential cables, making it the most affordable entry point for designers, engineers, and hobbyists who primarily work with a desktop-based scanning workflow.

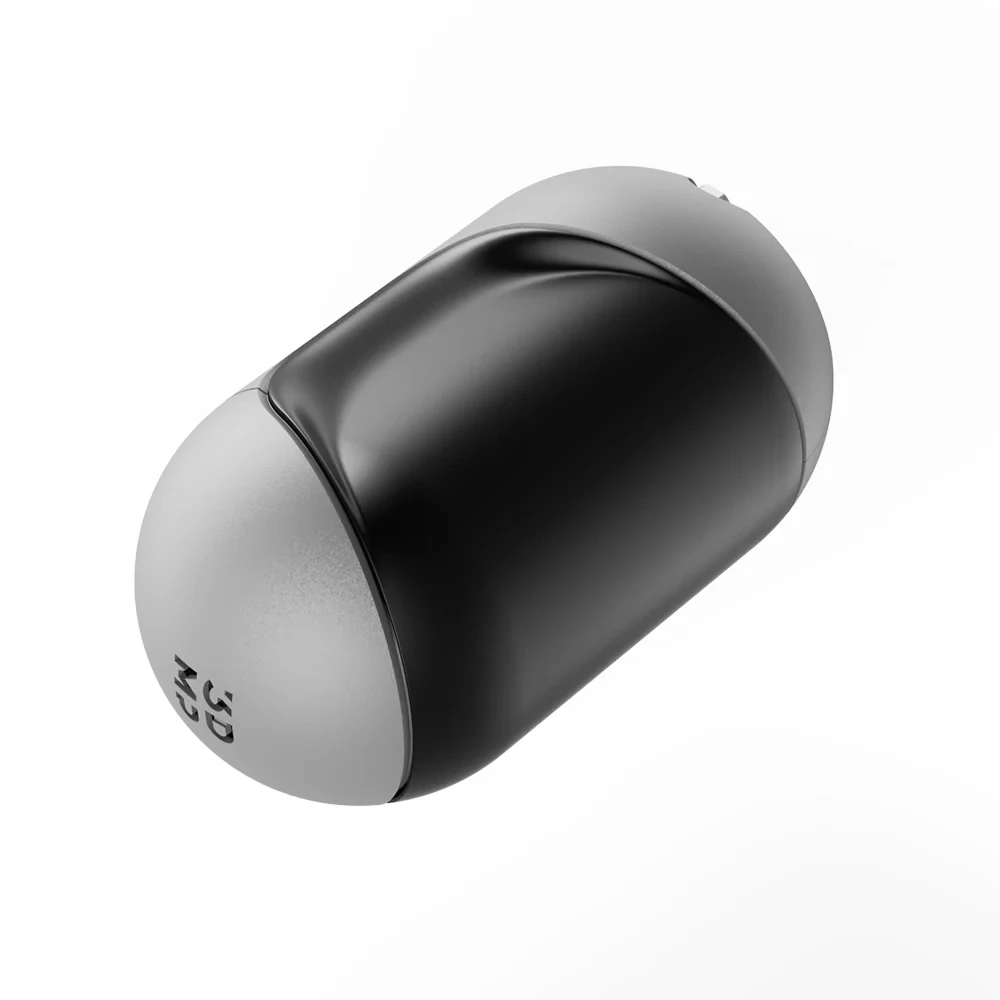

The Mole features a unique "pill-shaped" ergonomic design, weighing just 390g, which makes it comfortable for extended handheld sessions. It is fully integrated with JMStudio software, which offers a simplified "Scan-to-Print" workflow with automated features like auto-alignment, noise removal, and hole filling. While the Standard Edition outputs high-quality mono-color (grayscale) textures, the scans can be exported in standard OBJ, STL, and PLY formats, ensuring full compatibility with 3D printers and professional CAD software.

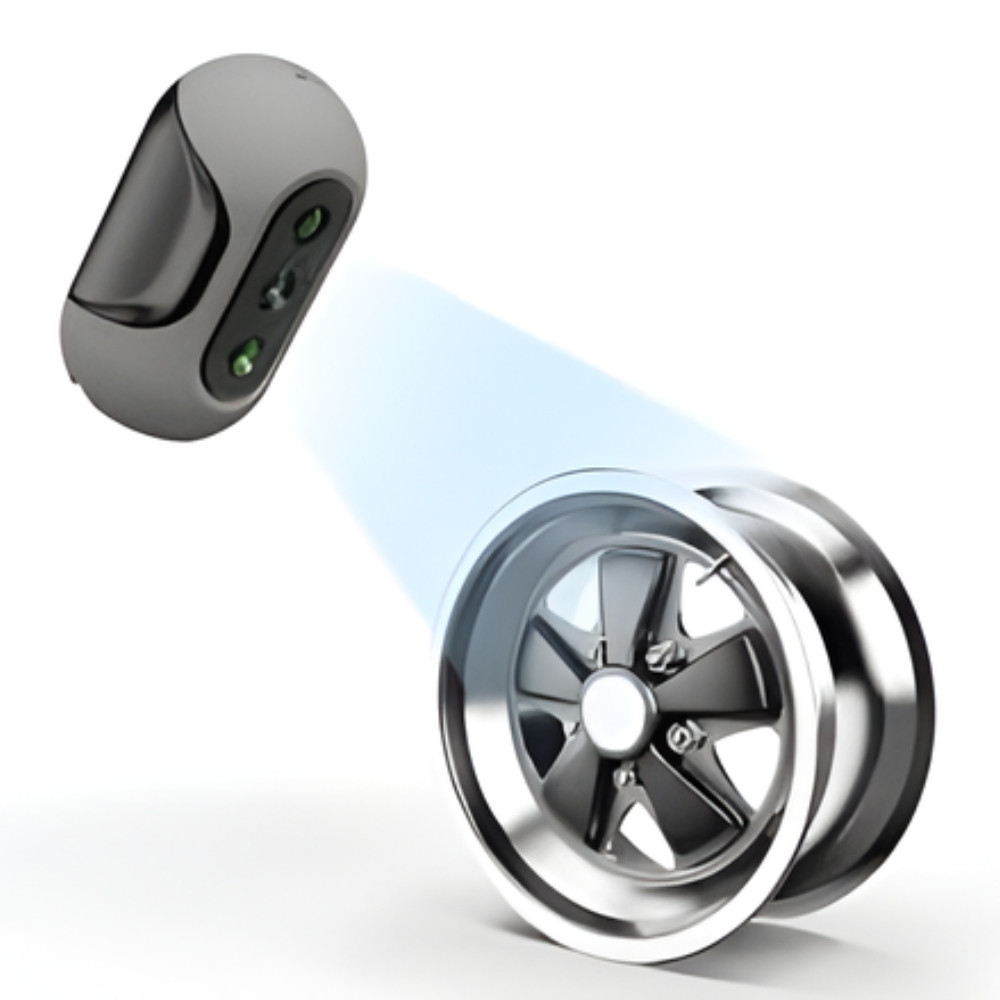

Equipped with Near-Infrared (NIR) structured light, the Mole excels at scanning difficult surfaces, including dark or completely black objects, which typically challenge standard scanners. This technology is paired with AI Visual Tracking, allowing for markerless scanning—meaning you can capture complex parts like automotive engine components or artistic sculptures without having to apply physical reference stickers. To ensure data stability, it features internal optical anti-shake modules that filter out hand jitters for smoother, more consistent point cloud generation.
