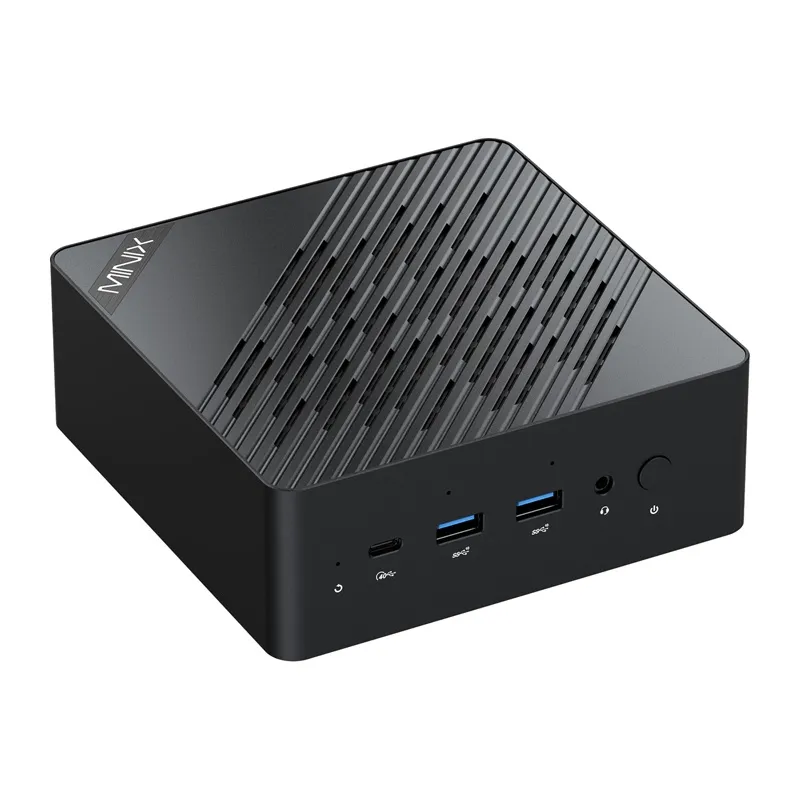

Minix ER936-AI Mini PC with Ryzen 365, 32GB RAM, 1TB Storage, and Windows 11 Pro
SKU: INN-ER936-AI
Brand: MiniX
Experience massive computing performance in an ultra-compact form factor with the Minix ER936-AI Mini PC. Engineered for demanding professionals, content creators, and AI enthusiasts, this compact workstation houses an advanced 10-core AMD Ryzen™ AI 9 365 processor, integrated Radeon™ 880M graphics, and a dedicated NPU capable of up to 73 total TOPS of AI performance. Pre-installed with Windows 11 Pro, the ER936-AI seamlessly replaces bulky desktop towers without sacrificing speed, capabilities, or connectivity.
Key Features
- AMD Ryzen™ AI 9 365 Powerhouse: Equipped with 10 cores and 20 threads pushing up to 5.0 GHz for lightning-fast multitasking, heavy content rendering, and seamless workflow.
- Dedicated Neural Processing Unit (NPU): Delivers up to 50 NPU TOPS (73 total system AI TOPS) for fast local AI model execution, smart task automation, and reduced cloud latency.
- 32 GB DDR5 Memory & 1 TB NVMe SSD: Features ultra-fast 5600 MHz memory (expandable up to 96 GB) and high-speed PCIe 4.0 storage with support for up to 8 TB across dual M.2 slots.
- Quad 8K Display Support: Drive up to four 8K @ 60Hz displays simultaneously via HDMI 2.1, DisplayPort 2.0, and dual USB-C 4.0 ports.
- Dual 2.5G Ethernet & Tri-Band Wi-Fi 6E: Enjoy ultra-reliable network performance with dual 2.5 Gbps LAN ports, Wi-Fi 6E (2.4/5/6 GHz), and Bluetooth 5.2.
- Advanced Silent Cooling System: Features a custom vapor chamber and dual whisper-quiet fans housed in a tool-free enclosure for easy hardware upgrades.
General
- Brand
- MiniX
- Model
- ER936-AI
- Operating System
- Windows 11 Pro (Multilingual)
- Package Included
- Mini PC, VESA Mount, HDMI Cable, 19V / 6.32A Power Supply
Processor & AI
- Processor Model
- AMD Ryzen™ AI 9 365
- Cores / Threads
- 10 Cores / 20 Threads
- Max Clock Speed
- Up to 5.0 GHz
- Maximum TDP
- 65W
- NPU Performance
- AMD Ryzen™ AI (50 NPU TOPS)
- Total AI System Performance
- Up to 73 TOPS
Graphics & Video
- Graphics Card
- AMD Radeon™ 880M
- Max GPU Frequency
- Up to 2900 MHz
- Max Video Output
- 8K @ 60Hz
- Multi-Monitor Support
- Up to 4 Displays Simultaneously
Memory & Storage
- Installed RAM
- 32 GB (2 x 16 GB)
- RAM Type & Speed
- DDR5-5600 MHz
- Maximum RAM Support
- Up to 96 GB
- Installed Storage
- 1 TB PCIe 4.0 NVMe SSD
- Storage Expansion Slots
- 2 x M.2 NVMe PCIe 4.0 x4 SSD slots
- Maximum Storage Capacity
- Up to 8 TB

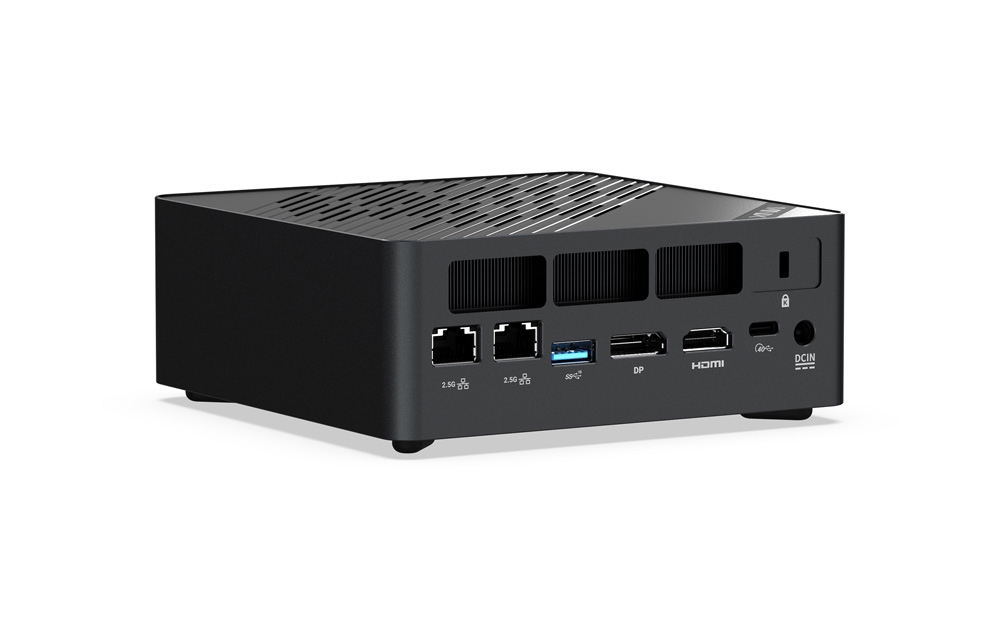

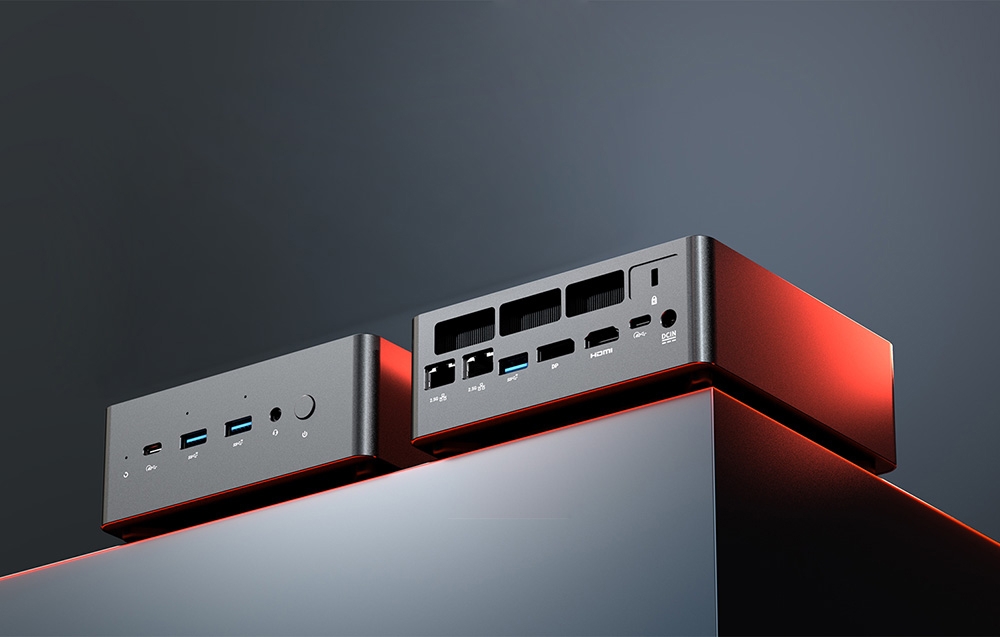

Connectivity & Ports
- Wireless Connectivity
- Tri-Band Wi-Fi 6E (802.11ax RZ616 2.4GHz/5GHz/6GHz), Bluetooth 5.2
- Ethernet
- 2 x RJ-45 2.5G Ethernet (Dual LAN)
- Video Ports
- 1 x HDMI 2.1 (8K@60Hz), 1 x DisplayPort 2.0 (8K@60Hz), 2 x USB-C 4.0 (8K@60Hz)
- USB Ports
- 3 x USB-A 3.2 Gen2, 2 x USB-C 4.0
- Audio
- 1 x 3.5mm Audio Combo Jack (Headphones/Microphone)
Power & Thermal Specs
- Cooling System
- Silent Cooling System (Vapor Chamber + Dual Fans)
- Operating Temperatures
- ~43°C Idle / ~80–86°C Under Load
- Power Consumption
- 8–12W Idle / ~73W Gaming / 93–100W Full Load
- Power Adapter
- 19V / 6.32A Power Adapter
Physical Attributes
- Dimensions
- Approx. 140 × 139 × 55 mm
- Weight
- Approx. 936 g
- Chassis Material
- Metal & High-Density Synthetic
- Chassis Features
- Tool-Free Access Design, VESA Mount Support
