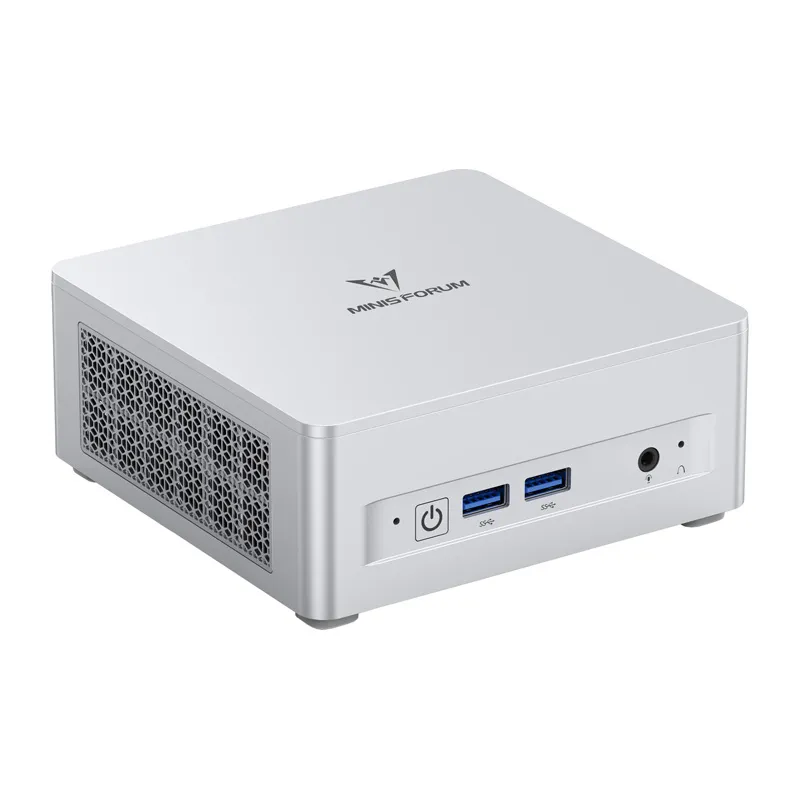

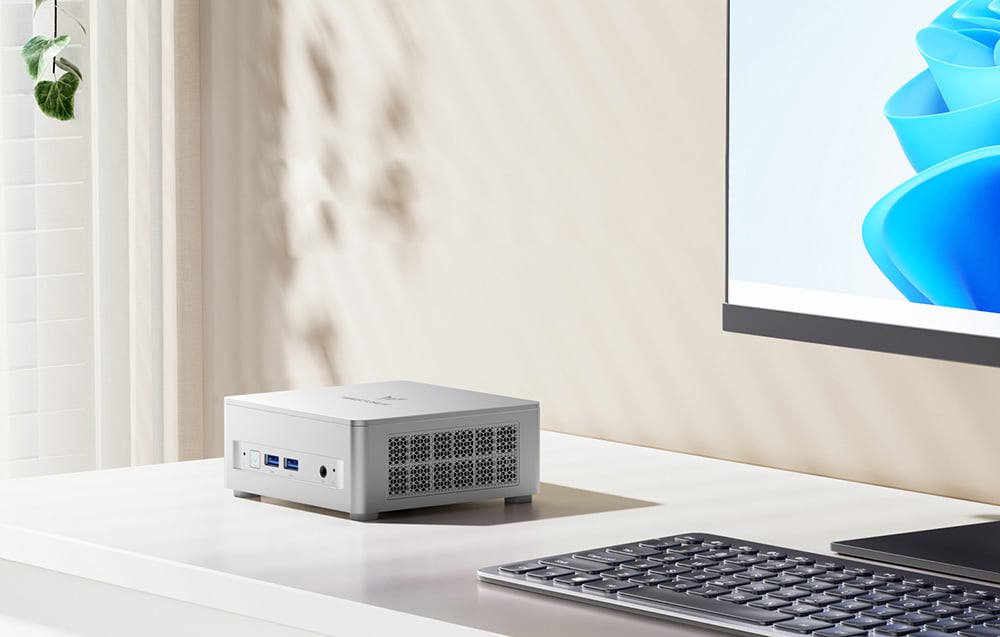

MINIS FORUM UM870 Plus Ryzen 7 8745H 16GB + 512GB Mini PC - Description
The Minisforum UM870 Plus is a mini PC with small dimensions but surprisingly high computing power. It is equipped with an 8-core, 16-thread AMD Ryzen™ 7 8745H processor based on Zen 4 architecture, supported by 16GB of DDR5 RAM clocked at 5600 MHz and a fast 512GB PCIe 4.0 SSD. It offers multiple ports, including USB4, HDMI 2.1, DisplayPort 1.4, and OCulink, allowing you to connect up to 3 4K monitors or an external graphics card. Wi-Fi 6E support, a 2.5G Ethernet port, and expandable storage and RAM make it ideal for both everyday work and high-performance applications.

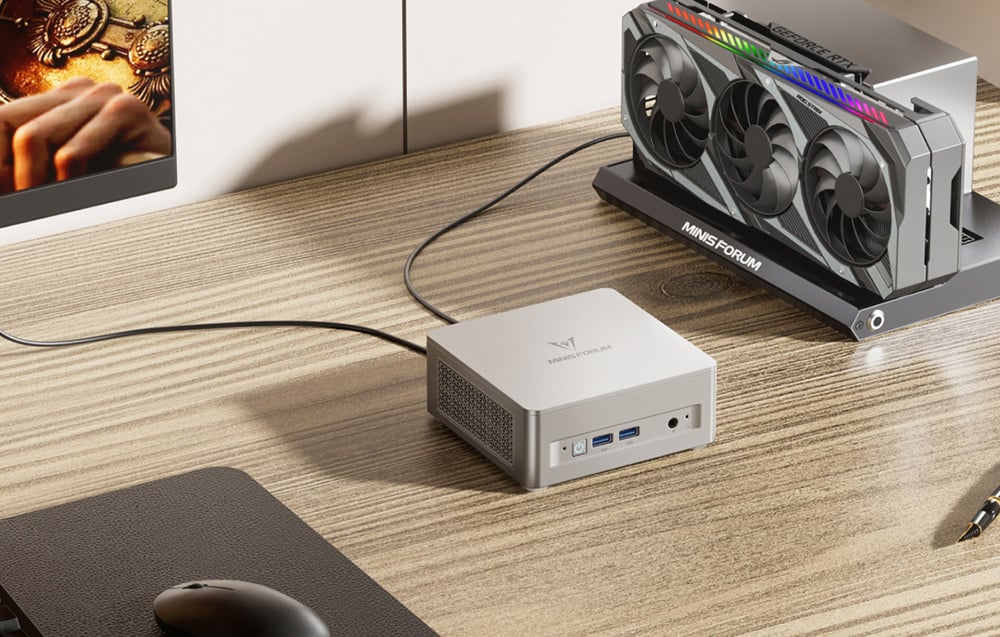

The UM870 Plus comes standard with 16 GB of DDR5 RAM clocked at 5600 MHz. This amount and speed allows for efficient switching between applications, smooth work with large files, and fast system response.

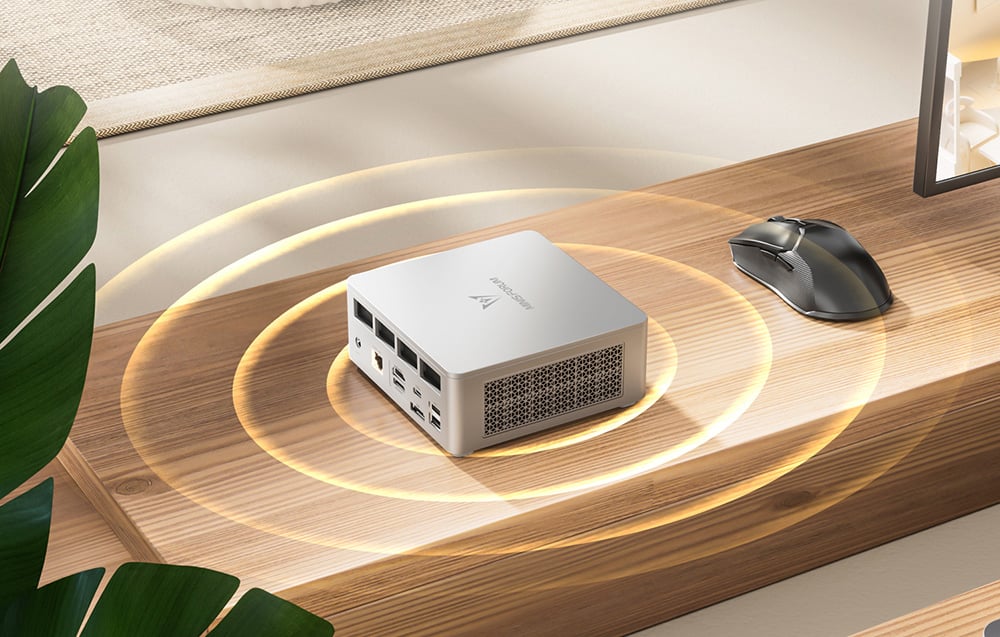

The built-in AMD Radeon™ 780M graphics allow for comfortable use of everyday applications and multimedia. For more demanding users, OCulink is available, allowing the connection of an external graphics card. Graphics expansion significantly increases performance without the need to replace the entire device.

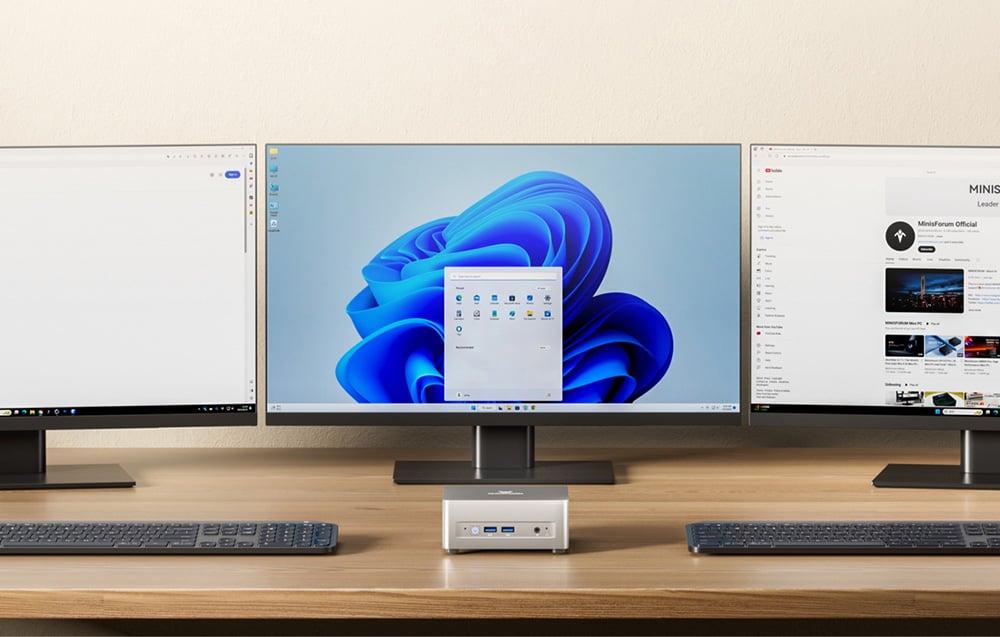

HDMI 2.1, DisplayPort 1.4, and USB4 ports allow you to connect up to 3 4K monitors simultaneously. This solution allows for effective workspace management and convenient use of multiple applications at the same time. USB4 offers bandwidth of up to 40 Gbps, facilitating the transfer of large files, fast charging, and the use of modern accessories without delays.

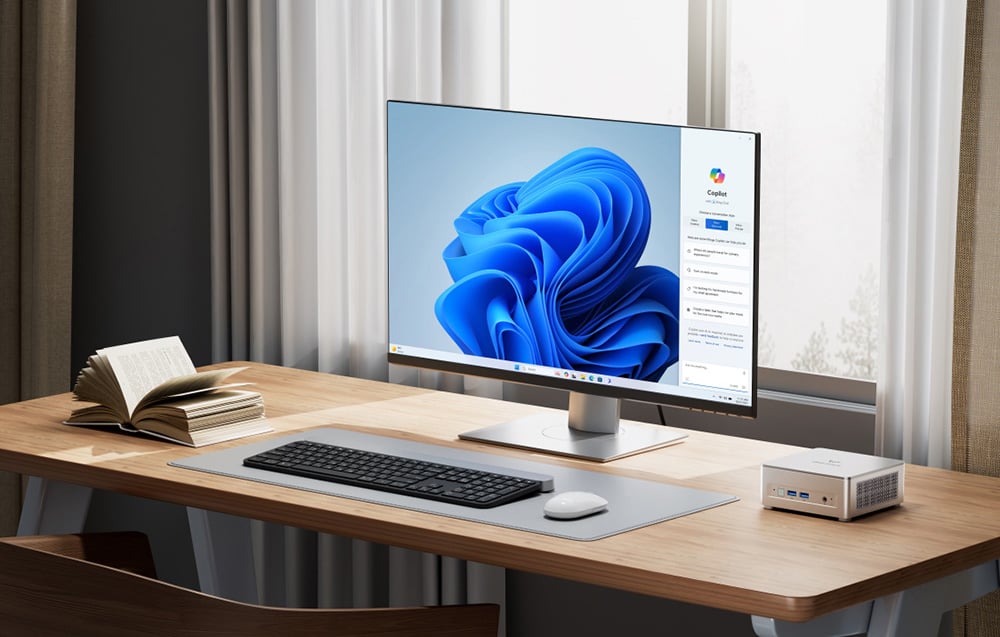

The Minis Forum UM870 Plus computer uses a phase-change cooling system that transforms the state of materials to effectively dissipate heat. Combined with a large, quiet fan and 3 heat pipes, the device maintains a low operating temperature while generating noise below 35 dB — equivalent to the sound level in a library. The approximately 25% drop in temperature has a positive effect on the stability and longevity of the components.

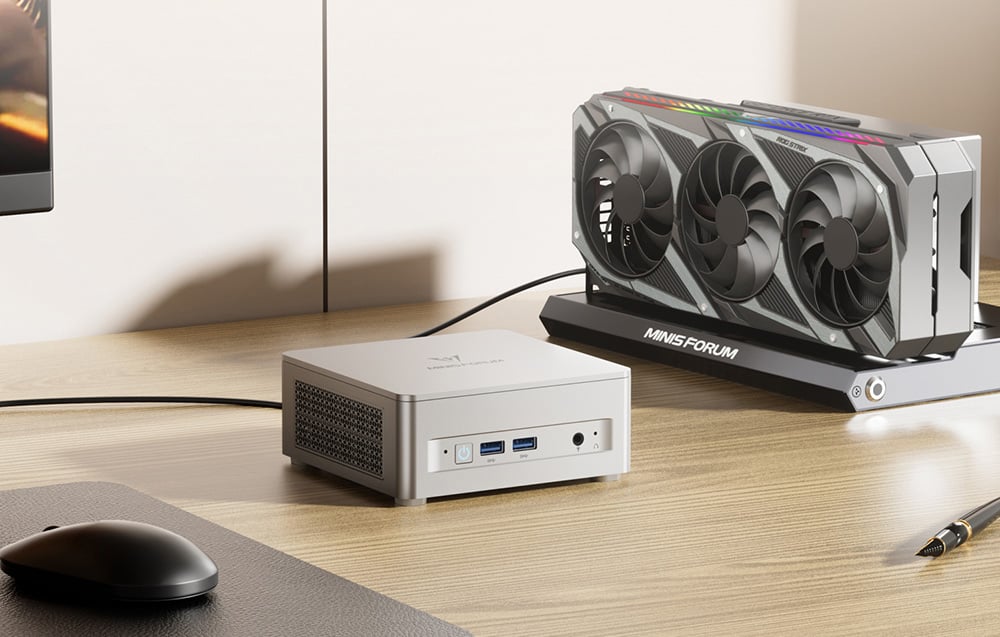

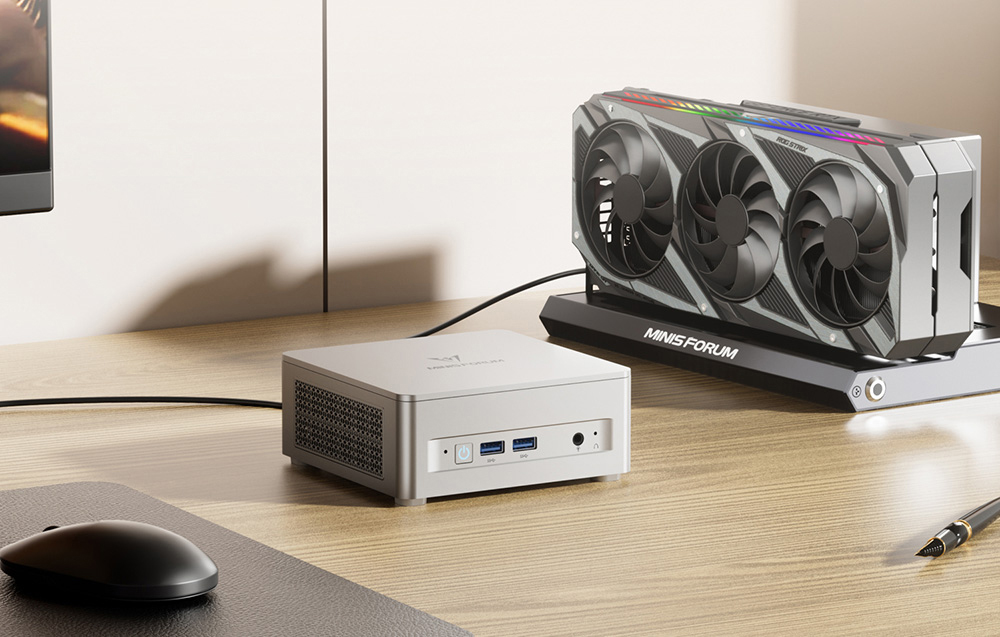

The 2.5G RJ45 Ethernet port with link aggregation provides up to 10 Gbps bandwidth, which is important when transferring large files or working in network environments. The UM870 Plus also supports Wi-Fi 6E and Bluetooth 5.3, which translates into fast, stable, and energy-efficient wireless connections. The computer maintains efficient communication with other devices and the network regardless of conditions.
MINIS FORUM UM870 Plus Ryzen 7 8745H 16GB + 512GB Mini PC - Specifications
General
- Brand
- Minis Forum
- Model
- UM870 Plus
- Form Factor
- Mini PC
- Power Supply
- 19V / 6.32A DC Adapter
- Included Accessories
- Power Adapter, Power Cable, HDMI Cable, Wall Mount Bracket (VESA), M.2 to OCulink Adapter, User Manual
Processor & Architecture
- Processor Model
- AMD Ryzen™ 7 8745H
- Architecture
- Zen 4
- Cores / Threads
- 8 Cores / 16 Threads
- Base Clock Speed
- 3.8 GHz
- Max Boost Clock Speed
- Up to 4.9 GHz
Memory & Storage
- Installed Memory
- 16 GB
- Memory Type
- DDR5
- Memory Speed
- 5600 MHz
- Installed Storage
- 512 GB
- Storage Interface
- M.2 2280 PCIe 4.0 NVMe SSD
- Storage Expansion
- 2x M.2 2280 PCIe 4.0 SSD Slots
Graphics & Video Output
- Graphics Type
- Integrated AMD Radeon™ 780M
- External GPU Support
- Yes (via OCulink interface)
- Multi-Monitor Support
- Up to 3 displays simultaneously
- Supported Displays
- HDMI 2.1 (4K), DisplayPort 1.4 (4K), USB4 (4K/8K)
Connectivity & Expansion
- Ethernet
- 1x RJ45 2.5G Ethernet
- Wireless Connectivity
- Wi-Fi 6E
- Bluetooth
- Bluetooth 5.3
- USB Ports
- 1x USB4 (40Gbps, Alt PD), 2x USB-A 3.2 Gen2, 2x USB-A 2.0
- Video Outputs
- 1x HDMI 2.1, 1x DisplayPort 1.4
- Dedicated Expansion
- 1x OCulink Port
- Audio
- 1x 3.5mm Headphone/Microphone Jack
Cooling & Acoustics
- Cooling Technology
- Phase-Change Cooling System with 3 Heat Pipes
- Noise Level
- Below 35 dB
