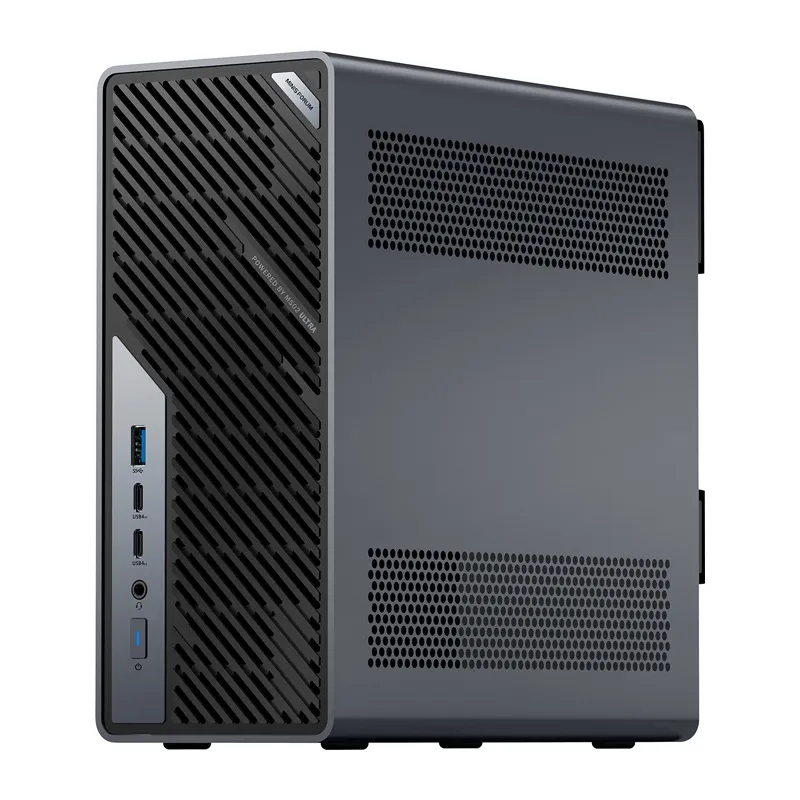

MINIS FORUM MS-02 Ultra Mini PC Intel Core Ultra 9 285HX barebone
The MINIS FORUM MS-02 Ultra Barebone Mini PC redefines ultra-compact computing, delivering workstation and micro-server class performance in a compact desktop footprint. Powered by the flagship 24-core Intel® Core™ Ultra 9 285HX processor featuring integrated Intel® AI Boost NPU, this barebone system is engineered for demanding workloads such as virtualization, local AI development, extreme multitasking, and high-speed network routing. Designed for professionals and enthusiasts who demand maximum flexibility, the MS-02 Ultra provides exceptional computing density paired with enterprise-grade expandability.
Equipped with an astounding network setup—including dual 25GbE SFP+ ports, 10GbE RJ45, 2.5GbE RJ45, and Wi-Fi 7—the MS-02 Ultra offers unprecedented bandwidth for data-intensive environments. Its internal engineering supports up to 256 GB of DDR5 RAM and quad M.2 NVMe SSDs with RAID support, alongside a dedicated PCIe 5.0 x16 slot for full-sized expansion modules. Thermal performance is managed by an advanced dual-fan copper cooling system with six heat pipes, ensuring peak performance under sustained enterprise workloads while keeping noise levels comfortably low.
Key Features
- Intel® Core™ Ultra 9 285HX Processor: 24 cores (8 Performance + 16 Efficient), 24 threads, up to 5.5 GHz turbo clock speed, and 36 MB Intel® Smart Cache for heavy computing tasks.
- Integrated AI Acceleration: Powered by Intel® AI Boost NPU offering up to 13 TOPS of localized machine learning processing power.

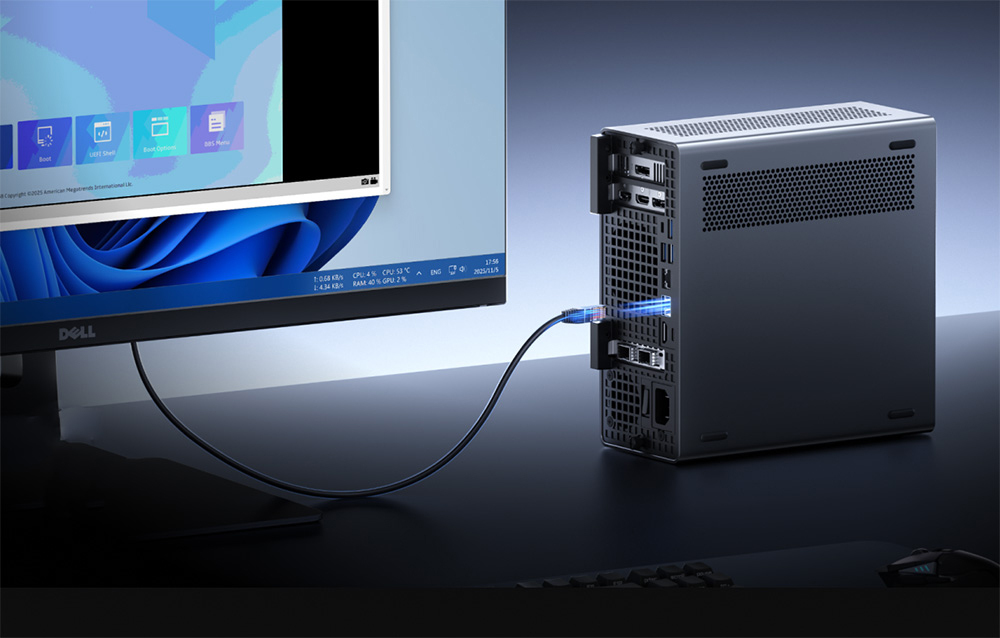

- Enterprise Networking Matrix: Dual 25GbE SFP+ (Intel E810), 1x 10GbE RJ45, 1x 2.5GbE RJ45 (vPro support), plus Wi-Fi 7 and Bluetooth 5.4 wireless connectivity.
- Extreme Memory & Storage Expansion: 4x DDR5 SO-DIMM slots supporting up to 256 GB RAM (with ECC support) and 4x M.2 2280 NVMe SSD slots with RAID 0/1/5/10 configuration capabilities.
- Next-Gen Connectivity & Display Outputs: Features dual front USB4 V2 ports (80 Gbps), rear USB4 (40 Gbps), and HDMI 2.1 FRL supporting up to multi-monitor 8K@60Hz or 4K@120Hz setups.
- PCIe 5.0 Expansion Slot: Includes an internal full-height PCIe 5.0 x16 slot for discrete graphics cards or accelerator hardware.
- Advanced Cooling & Internal PSU: Custom heat pipe module with dual cooling fans (36–46 dBA) powered by an integrated 350W 1U internal power supply.
General
- Brand
- Minis Forum
- Model
- MS-02 Ultra
- Form Factor
- Ultra Mini PC / Micro Workstation
- System Type
- Barebone (RAM & Storage Sold Separately)
- Supported Operating Systems
- Windows 11 Pro / Home, Linux
Processor & AI
- Processor Model
- Intel® Core™ Ultra 9 285HX
- Cores / Threads
- 24 Cores (8 P-Cores + 16 E-Cores) / 24 Threads
- Max Turbo Frequency
- Up to 5.5 GHz
- Cache
- 36 MB Intel® Smart Cache
- Processor Base Power / PL2
- 100W PL1 / 140W PL2
- NPU Engine
- Intel® AI Boost (Up to 13 TOPS)
Memory
- Memory Slots
- 4 × DDR5 SO-DIMM
- Supported RAM Type
- DDR5 (ECC supported)
- Maximum RAM Capacity
- Up to 256 GB
- Memory Clock Speed
- Up to 4800 MT/s (1R) / 4400 MT/s (2R)
Storage Options
- Available Slots
- 4 × M.2 2280 NVMe SSD
- Motherboard Slots
- 2 × PCIe 4.0 x4 (Up to 8 TB per slot)
- NIC Module Slots
- 2 × PCIe 4.0/3.0 x4 (Up to 8 TB per slot)
- Max Storage Potential
- Up to 32 TB
- RAID Support
- RAID 0, 1, 5, 10
Graphics & Video Output
- Integrated Graphics
- Intel® Graphics
- Graphics Dynamic Frequency
- Up to 2.0 GHz
- Display Outputs
- 1 × HDMI 2.1 FRL, 2 × USB4 V2 Type-C (DP Alt Mode), 1 × USB4 Type-C (DP Alt Mode)
- Max Supported Display Resolution
- 8K @ 60Hz / 4K @ 120Hz
Networking & Communications

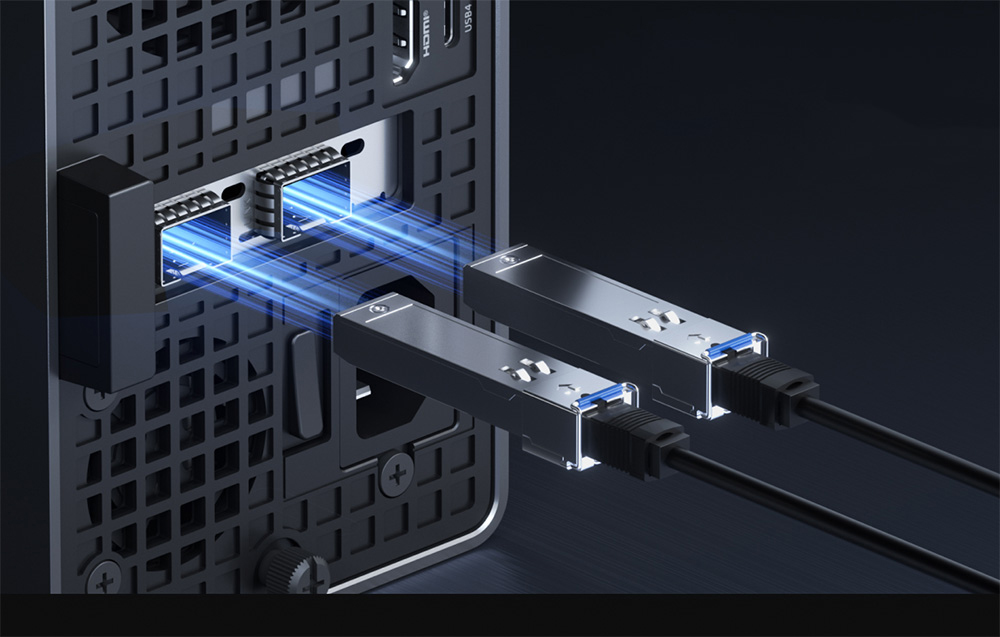

- SFP+ Network Ports
- 2 × 25 GbE SFP+ (Intel® E810 Controller)
- Ethernet Ports
- 1 × 10 GbE RJ45 (Realtek RTL8127), 1 × 2.5 GbE RJ45 (Intel® I226-LM with vPro)
- Wi-Fi Standard
- Wi-Fi 7 (Intel® BE200)
- Bluetooth
- Version 5.4
Internal & Expansion Slots
- PCIe Expansion
- 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4
- Occupied Internal Slots
- 1 × PCIe 4.0 x16 (Pre-installed with 25GbE NIC & dual M.2 module)
I/O Ports
- Front Ports
- 2 × USB4 V2 Type-C (80 Gbps, DP 2.0, 15W PD), 1 × USB-A 3.2 Gen 2 (10 Gbps), 1 × 3.5 mm Audio Combo Jack, Power Button
- Rear Ports
- 2 × 25GbE SFP+, 1 × 10GbE RJ45, 1 × 2.5GbE RJ45, 1 × HDMI 2.1 FRL, 1 × USB4 Type-C (40 Gbps, DP 2.0, 15W PD), 3 × USB-A 3.2 Gen 2 (10 Gbps)
- Diagnostic Components
- Clear CMOS button, Debug LEDs (CPU, RAM, VGA, BOOT)

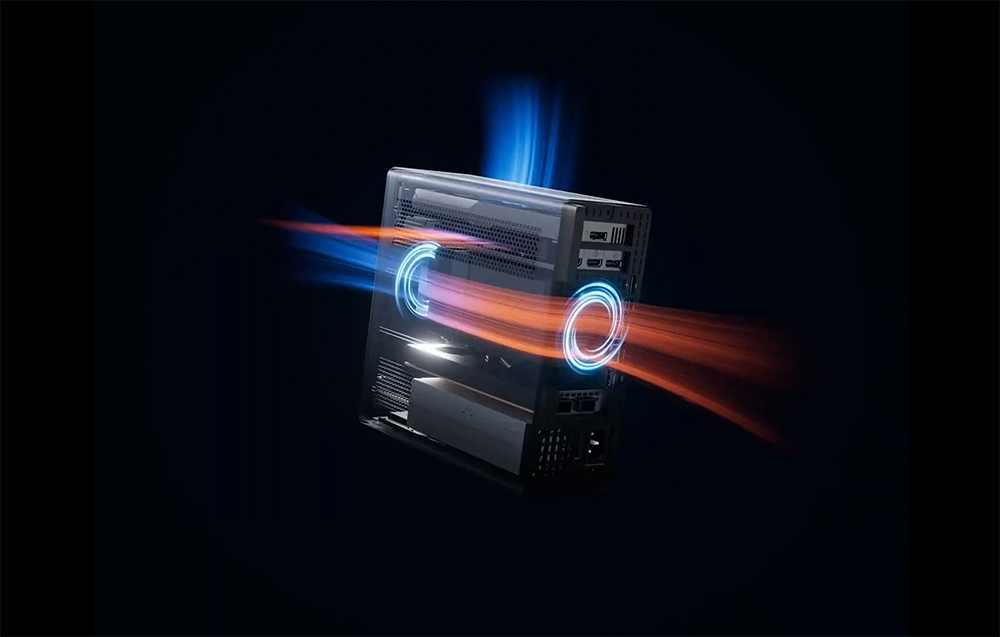

Cooling & Acoustics
- Cooling Technology
- Heatsink with 6 Heat Pipes + Phase Change Material (PCM)
- Fans
- 1 × 70x25 mm fan + 1 × 60x20 mm fan (Max 5000 RPM)
- Noise Level
- 36 dBA (Idle) / 46 dBA (100% Load at 50 cm)
Power & Physical Attributes
- Power Supply
- Built-in 350W 1U Standard Power Supply (100–240V ~6A)
- Dimensions (L × W × H)
- 221.5 × 97 × 225 mm
- Weight
- 3.45 kg
- Security
- Kensington Security Slot
Package Contents
- Included Items
- MINIS FORUM MS-02 Ultra Mini PC, Power Cord, HDMI Cable, SSD Heatsink, Protective Plate, Disassembly Tool, User Manual
