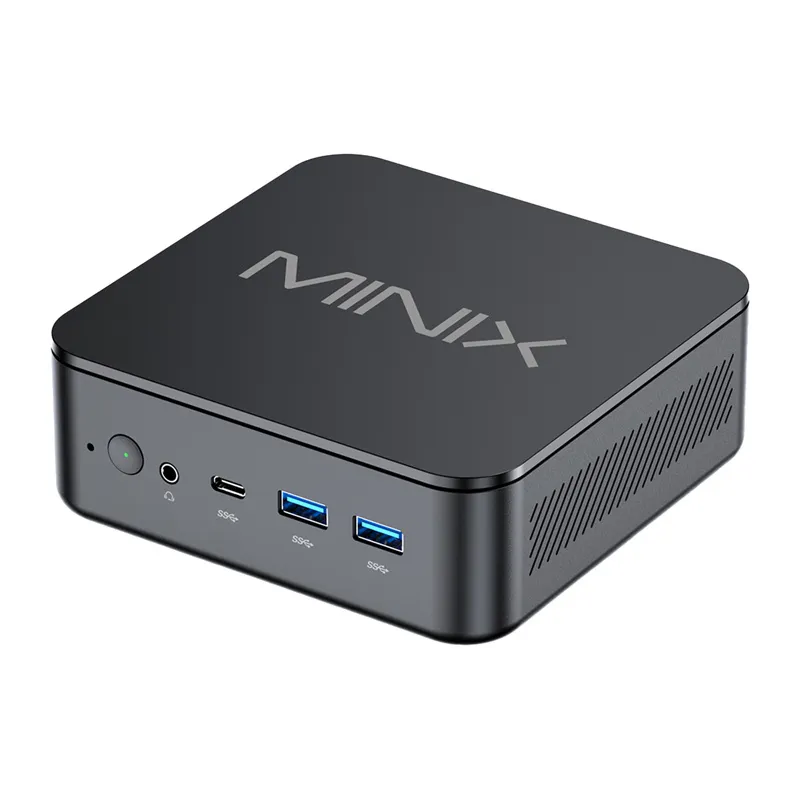

Mini PC Minix NR660LP Ryzen 5 6600H 16GB 512GB Windows 11 Pro
Experience desktop-grade performance in an ultra-compact footprint with the Minix NR660LP Mini PC. Powered by the robust AMD Ryzen 5 6600H processor, blazing-fast 16GB LPDDR5 RAM, and a high-speed 512GB NVMe SSD, this mini workstation is built to tackle demanding office tasks, remote learning, media streaming, and content creation with effortless ease. Pre-installed with Windows 11 Pro, it offers enterprise-grade security and productivity features straight out of the box.
Key Features & Highlights
- AMD Ryzen 5 6600H Powerhouse: Equipped with 6 cores and 12 threads running up to 4.5 GHz, paired with AMD Radeon 660M graphics for up to a 30% performance leap over previous generations.
- High-Speed LPDDR5 Memory: Features 16GB of LPDDR5 RAM clocked at 6400 MHz to deliver instant system responsiveness and smooth multitasking under heavy workloads.
- Expandable NVMe Storage: Comes with a 512GB PCIe 3.0 SSD with secondary expansion slots supporting up to 8TB PCIe 4.0 NVMe storage.
- Triple 4K Display Output: Drive up to three 4K displays simultaneously at 60Hz via HDMI 2.0, DisplayPort, and full-featured USB-C.
- Whisper-Quiet Advanced Cooling: A custom copper heat pipe active cooling system keeps internal temperatures low while operating at a subtle 32 dB noise level.
- Comprehensive Networking: Integrated Tri-band Wi-Fi 6E, Bluetooth 5.2, and Dual Gigabit Ethernet (2x 1G LAN) ports ensure ultra-fast, stable wired and wireless connections.
Compact Versatility for Any Workspace
Whether seamlessly attached behind a monitor using the included VESA mount, placed on a modern office desk, or acting as a sleek home theater media server, the Minix NR660LP combines minimalist design with maximal functionality. Complete with multiple USB 3.2 Gen 2 ports and versatile video outputs, this mini PC replaces bulky traditional towers without compromising on speed or connectivity.
General
- Brand
- MiniX
- Model
- NR660LP
- Operating System
- Windows 11 Pro (64-bit)
- Form Factor
- Mini PC
- Included Accessories
- MINIX NGC NR660 LP Mini PC, HDMI Cable, VESA Mount, 19V/5A Power Adapter, User Manual
Processor & Graphics
- Processor
- AMD Ryzen 5 6600H
- Core Count
- 6 Cores
- Thread Count
- 12 Threads
- Clock Speed
- Base clock up to 4.5 GHz Turbo
- Cache
- 12 MB Cache
- Graphics Processor
- AMD Radeon 660M
Memory & Storage
- Installed Memory
- 16 GB
- Memory Type
- LPDDR5
- Memory Speed
- 6400 MHz
- Primary Storage
- 512 GB NVMe M.2 2280 PCIe 3.0 x4 SSD
- Storage Expansion
- Dual M.2 2280 PCIe 4.0 x4 slots (up to 8 TB support)
Video & Display
- Video Output Options
- 1x HDMI 2.0, 1x DisplayPort, 1x USB-C
- Maximum Resolution
- 4K Ultra HD @ 60Hz
- Multi-Display Support
- Up to 3 Monitors simultaneously
Connectivity & Ports
- Wireless Network
- Tri-band Wi-Fi 6E (802.11ax, 2.4 GHz / 5 GHz / 6 GHz)
- Bluetooth
- Bluetooth 5.2 (MediaTek RZ616)
- Wired Network
- 2 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
- USB Ports
- 1 x USB-C 3.2 Gen 2, 3 x USB-A 3.2 Gen 2, 1 x USB-A 2.0
Thermal & Power
- Cooling Type
- Active Cooling (Copper Heat Pipe + Fan)
- Noise Level
- Approx. 32 dB
- Power Supply
- 19V / 5A DC Power Adapter
