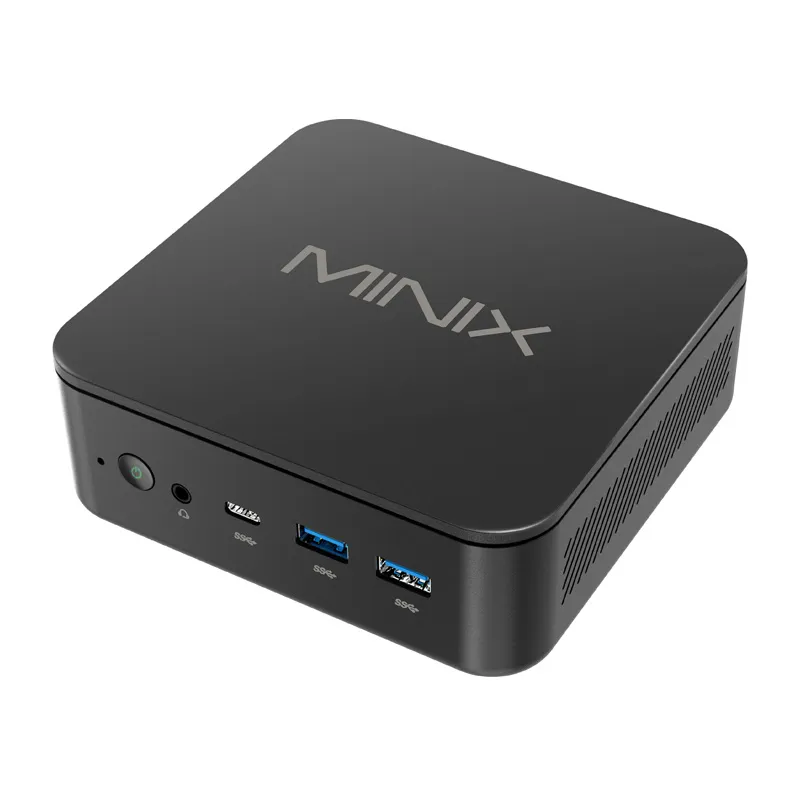

Mini PC Minix NR660 Ryzen 5 6600H 16GB 512GB Windows 11 Pro
Power up your productivity with the MINIX NR660 Mini PC, an ultra-compact desktop solution designed for demanding professionals, home offices, and digital multimedia workflows. Driven by the formidable 6-core, 12-thread AMD Ryzen™ 5 6600H processor paired with integrated AMD Radeon™ 660M graphics, the NR660 delivers smooth, lightning-fast performance for complex multitasking, data analysis, and media creation without taking up valuable desk space.
Equipped out of the box with 16GB of high-speed DDR5 memory and a 512GB NVMe PCIe 3.0 SSD, this mini workstation runs Windows 11 Pro efficiently right from the start. Designed with future-proofing in mind, it provides incredible expandability with support for up to 64GB DDR5 RAM and up to 8TB of storage via an additional M.2 PCIe 4.0 SSD slot. Experience superior connectivity with dual 2.5G Ethernet ports, tri-band Wi-Fi 6E, and triple-monitor support up to 8K resolution, all housed within an whisper-quiet, ultra-portable enclosure.
Key Features & Highlights
- High-Performance Processing: Powered by AMD Ryzen™ 5 6600H (up to 5.1 GHz boost, 12 MB Cache) and integrated AMD Radeon™ 660M graphics for effortless multitasking and visual processing.
- Next-Gen DDR5 Memory & Fast SSD: Preloaded with 16GB DDR5 4800MHz RAM and a 512GB M.2 NVMe PCIe SSD, ensuring rapid boot times and quick application loading.
- Triple Display Support & up to 8K Output: Multi-monitor productivity via HDMI 2.1, DisplayPort 1.4, and full-featured USB-C 4.0 / Thunderbolt 4, supporting up to 8K resolution @ 60Hz.
- Ultra-Fast Network Connectivity: Dual 2.5G RJ-45 Ethernet ports for high-bandwidth LAN setup alongside Tri-Band Wi-Fi 6E and Bluetooth 5.2.
- Easy Expansion: Dual SO-DIMM slots allow memory upgrades up to 64GB DDR5, while a second M.2 2280 PCIe 4.0 x4 SSD slot provides expanded storage flexibility.
- Quiet & Efficient Thermal Architecture: Active cooling system with copper heat pipes keeps operational noise down to a maximum of just 32 dB.
- Compact & VESA Mountable Design: Measures just 130 x 127 x 46.9 mm and weighs 483 g; easily mounts behind compatible displays using the included VESA bracket.
General
- Brand
- MINIX
- Model
- NGC PRD NR660
- Operating System
- Windows 11 Pro
- Certifications
- FCC, CE, UKCA, ROHS, WEEE, PSE
Processor & Graphics
- Processor
- AMD Ryzen™ 5 6600H
- CPU Cores / Threads
- 6 Cores / 12 Threads
- Clock Speed
- Up to 5.1 GHz Max Boost
- Cache
- 12 MB Cache
- Graphics
- AMD Radeon™ 660M Integrated
Memory & Storage
- Installed RAM
- 16 GB DDR5 4800 MHz
- RAM Slots
- 2 × SO-DIMM DDR5 (Expandable up to 64 GB)
- Primary Storage
- 512 GB M.2 2280 PCIe 3.0 ×4 NVMe SSD
- Storage Expansion
- 1 × M.2 2280 PCIe 4.0 ×4 SSD slot (Up to 8TB total capacity support)
Display & Video Output
- Multi-Display Support
- Up to 3 Displays simultaneously
- Maximum Resolution
- 8K @ 60Hz (via DisplayPort 1.4 / USB-C Thunderbolt 4), 4K @ 60Hz (via HDMI 2.1)
- Video Interfaces
- 2x HDMI 2.1 TMDS, 1x DisplayPort 1.4, 1x USB-C 4.0 / Thunderbolt 4
Networking & Communication
- Ethernet
- 2 × 2.5G RJ-45 Gigabit Ethernet
- Wi-Fi
- Wi-Fi 6E Tri-Band (2.4GHz / 5GHz / 6GHz) - RZ616 MT7922A22M
- Bluetooth
- Bluetooth 5.2
I/O Ports
- Front Ports
- 2× USB-A 3.2 Gen 2, 1× USB-C 4.0 (40Gbps, 4K@60Hz, 100W PD-in / 15W out), 1× 3.5mm Combo Audio Jack, Power Button, Reset Button
- Rear Ports
- 1× USB-A 3.2 Gen 2, 1× USB-A 2.0, 2× HDMI 2.1 TMDS, 1× DisplayPort 1.4, 1× USB-C / Thunderbolt 4, 2× 2.5G RJ-45 LAN, 1× DC-in Socket
Physical & Environmental
- Dimensions
- 130 × 127 × 46.9 mm
- Weight
- 483 g
- Color
- Black
- Chassis Material
- Plastic
- Cooling
- Active Fan Cooling with Copper Heat Pipes
- Noise Level
- Max 32 dB
- Power Supply
- DC 19V / 5A (Max 95W), AC 100~240V
Package Contents
- Included Accessories
- 1x MINIX NR660 Mini PC, 1x HDMI Cable, 1x Power Cable, 1x Power Adapter (EU/US/UK adapters), 1x VESA Mount, 1x User Manual
