Mini PC Minix N512 i5 12600H 16GB 512GB Windows 11 Pro
SKU: INN-N512
Brand: MiniX
Experience desktop-grade power in a compact footprint with the MINIX N512 Mini PC. Engineered for demanding office workloads, multi-monitor productivity, high-speed networking, and digital content creation, this mini PC is powered by a 12th Gen 12-core Intel® Core™ i5-12600H processor. Out of the box, it features 16GB of high-speed DDR5 RAM and a blazing-fast 512GB PCIe 4.0 NVMe SSD, pre-loaded with Windows 11 Pro so you can deploy immediately.
Key Features
- 12th Gen Intel Core i5 Performance: Packed with 12 cores and boost speeds up to 4.5 GHz, delivering effortless multitasking and smooth operation under heavy workloads.
- Next-Gen DDR5 Memory & Expandability: Ships with 16GB DDR5 4800 MHz RAM (dual-channel configuration) with support for expansion up to an impressive 96GB.

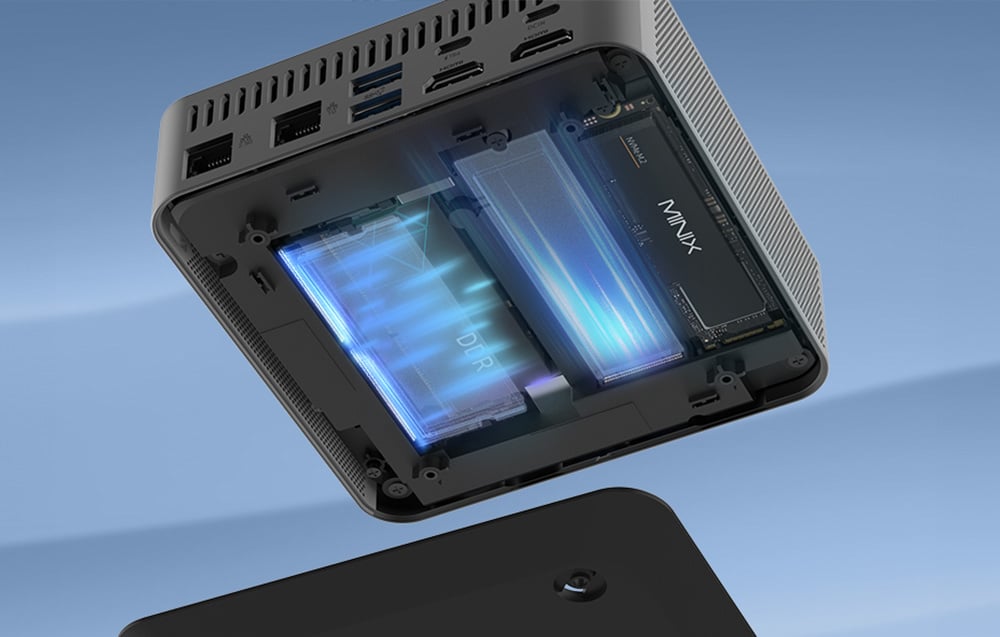

- High-Speed PCIe 4.0 Storage: Features a 512GB PCIe 4.0 M.2 NVMe SSD for instant boot times and rapid file access, plus an additional M.2 PCIe 3.0 slot for easy storage expansion.
- Quad Display Output up to 8K: Connect up to four screens simultaneously via Thunderbolt 4 (8K@60Hz), dual HDMI 2.1 (4K@60Hz), and a full-function USB-C port (4K@60Hz).
- Dual LAN & Wi-Fi 6 Networking: Equipped with dual RJ45 Ethernet ports (2.5G + 1G) alongside Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for rock-solid network stability and high bandwidth.

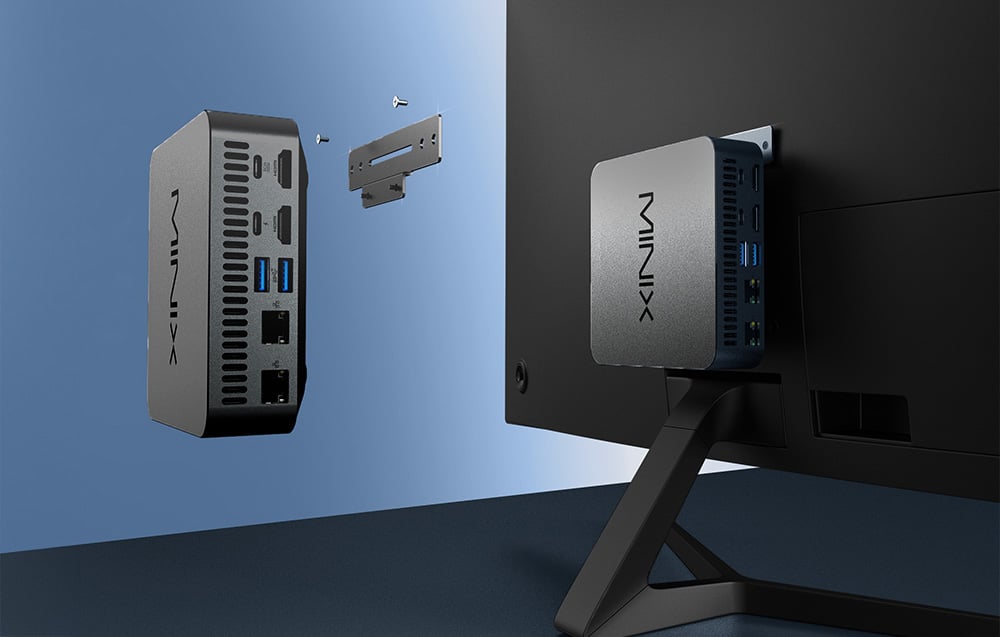

- Ultra-Compact & VESA Mount Ready: Measuring just 119.3 x 119.3 x 38.9 mm and weighing only 472g, it fits seamlessly on any desk or mounts neatly behind your monitor with the included VESA bracket.
- Ready for Enterprise: Pre-installed with Windows 11 Pro and bundled with a universal multi-region power adapter (EU, UK, US).
General
- Brand
- MINIX
- Model
- N512
- Operating System
- Windows 11 Pro (Multi-language)
- Color
- Gray
- Chassis Material
- Plastic + Metal
- Certifications
- CE, FCC, UKCA, RoHS, WEEE, PSE
Processor
- Processor Model
- Intel® Core™ i5-12600H
- Core Count
- 12 Cores
- Cache
- 18MB Intel® Smart Cache
- Max Turbo Speed
- Up to 4.50 GHz
Graphics & Video Support
- Graphics Processor
- Intel® Iris® Xe Graphics
- Supported Display Outputs
- 4 Simultaneous Displays
- Max Resolution
- Thunderbolt 4: Up to 8K@60Hz, HDMI 2.1 / USB-C: Up to 4K@60Hz
Memory
- Installed RAM
- 16 GB
- RAM Type
- DDR5-4800 MHz
- Memory Slots
- 2x DDR5 SO-DIMM
- Maximum RAM Expansion
- Up to 96 GB
Storage
- Primary Storage
- 512 GB M.2 2280 PCIe 4.0x4 NVMe SSD
- Storage Expansion
- 1x Additional M.2 2280 PCIe 3.0x4 SSD Slot
Connectivity & Networking
- Wireless Network
- Wi-Fi 6 (Intel AX201, 802.11ax Dual-Band)
- Bluetooth
- Bluetooth 5.2
- Ethernet
- Dual RJ45 Ethernet (1x 2.5 Gbps + 1x 1 Gbps)
Ports & Expansion
- Front I/O Ports
- 2x USB-A 3.2 Gen2, 1x USB-C 3.2 Gen2 (Full Functionality, 4K@60Hz), 1x 3.5mm Combo Audio Jack
- Rear I/O Ports
- 2x USB-A 3.2 Gen2, 1x Thunderbolt 4 (DP, PD, Data, 8K@60Hz), 2x HDMI 2.1 TMDS, 2x RJ45 Ethernet, 1x DC-in Jack
- Security
- Kensington Security Slot
Power Supply
- Input Voltage
- AC 100–240V
- Power Adapter Output
- 20V / 5A (100W Max PD Output)
- Adapter Plug Support
- Includes EU, UK, and US Adapter Attachments
Dimensions & Weight
- Product Dimensions
- 119.3 x 119.3 x 38.9 mm
- Product Weight
- 472 g
- Package Dimensions
- 175 x 230 x 72 mm
- Package Weight
- 1250.5 g
Package Contents
- Included Items
- 1x MINIX N512 Mini PC, 1x VESA Mounting Bracket, 1x HDMI Cable, 1x 20V/5A Power Adapter
